Siemens 6ES7513-1RL00-0AB0

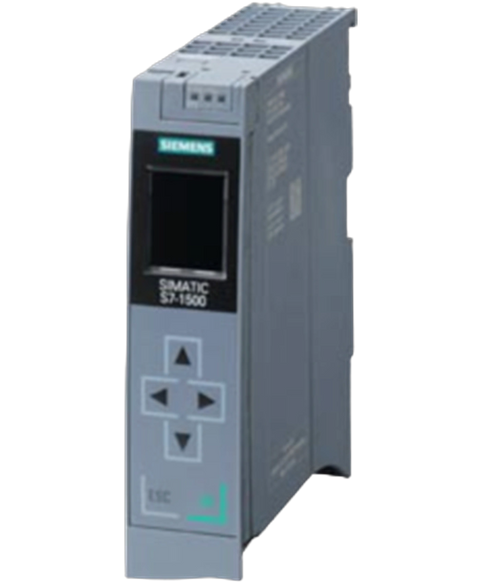

Siemens CPU 1513R-1 PN controller.
This Siemens 6ES7513-1RL00-0AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Modular plcs range and is referenced internally as PartLogic SKU PL26805320646.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$3,723.23
(inc. GST)
In Stock
| Product type designation | CPU 1513R-1 PN |
| HW functional status | FS01 |
| Firmware version | V2.9 |
| I&M data | Yes; I&M0 to I&M3 |
| Isochronous mode | No |
| STEP 7 TIA Portal configurable/integrated from version | V17 (FW V2.9) / V16 (FW V2.8) / V15.1 (FW V2.6) |
| Screen diagonal [cm] | 3.45 cm |
| Number of keys | 6 |
| Mode selector switch | 1 |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Mains/voltage failure stored energy time | 5 ms |
| Current consumption (rated value) | 0.7 A |
| Inrush current, max. | 1.9 A; Rated value |
| I²t | 0.02 A²·s |
| Power loss, typ. | 5.7 W |
| Number of slots for SIMATIC memory card | 1 |
| SIMATIC memory card required | Yes |
| integrated (for program) | 300 kbyte |
| integrated (for data) | 1.5 Mbyte |
| Plug-in (SIMATIC Memory Card), max. | 32 Gbyte |
| maintenance-free | Yes |
| for bit operations, typ. | 80 ns |
| for word operations, typ. | 96 ns |
| for fixed point arithmetic, typ. | 128 ns |
| for floating point arithmetic, typ. | 512 ns |
| Number of elements (total) | 4 000; Blocks (OB, FB, FC, DB) and UDTs |
| Number range | Number range: 1 to 59 9990 ... 65 535 |
| Size, max. | 1.5 Mbyte; For non-optimized block accesses, the max. size of the DB is 64 KB300 kbyte16 kbyte |
| Number of free cycle OBs | 100 |
| Number of time alarm OBs | 20 |
| Number of delay alarm OBs | 20 |
| Number of cyclic interrupt OBs | 20 |
| Number of process alarm OBs | 50 |
| Number of startup OBs | 100 |
| Number of asynchronous error OBs | 4 |
| Number of synchronous error OBs | 2 |
| Number of diagnostic alarm OBs | 1 |
| per priority class | 24 |
| Number | 2 048Any (only limited by the main memory)16 |
| — adjustable | Yes |
| Retentive data area (incl. timers, counters, flags), max. | 128 kbyte |
| Number of clock memories | 8; 8 clock memory bit, grouped into one clock memory byte |
| Retentivity adjustable | Yes |
| Retentivity preset | No |
| per priority class, max. | 64 kbyte; max. 16 KB per block |
| Number of IO modules | 2 048; max. number of modules / submodules |
| Inputs | 32 kbyte; All inputs are in the process image |
| Outputs | 32 kbyte; All outputs are in the process image |
| — Inputs (volume) | 8 kbyte |
| — Outputs (volume) | 8 kbyte |
| Number of subprocess images, max. | 32 |
| Number of distributed IO systems | 1 |
| integrated | 1 |
| Type | Hardware clock |
| Backup time | 6 wk; At 40 °C ambient temperature, typically |
| Deviation per day, max. | 10 s; Typ.: 2 s |
| supported | Yes |
| on Ethernet via NTP | Yes |
| Number of PROFINET interfaces | 1 |
| RJ 45 (Ethernet) | Yes; X1 |
| Number of ports | 2 |
| integrated switch | Yes |
| IP protocol | Yes; IPv4 |
| PROFINET IO Controller | Yes |
| PROFINET IO Device | No |
| SIMATIC communication | Yes; Only Server |
| Open IE communication | Yes |
| Web server | No |
| Media redundancy | Yes |
| — PG/OP communication | Yes |
| — Isochronous mode | No |
| — IRT | No |
| — PROFIenergy | Yes |
| — Number of connectable IO Devices, max. | 64 |
| 100 Mbps | Yes |
| Autonegotiation | Yes |
| Autocrossing | Yes |
| Industrial Ethernet status LED | Yes |
| PROFIsafe | No |
| Number of connections, max. | 88 |
| Number of connections reserved for ES/HMI/web | 10 |
| — MRP | Yes; MRP Automanager according to IEC 62439-2 Edition 2.0 |
| — MRP interconnection, supported | Yes; as MRP ring node according to IEC 62439-2 Edition 3.0 |
| — MRPD | No |
| — Switchover time on line break, typ. | 200 ms; PROFINET MRP |
| — Number of stations in the ring, max. | 50; Only 16 are recommended, however |
| PG/OP communication | Yes; encryption with TLS V1.3 pre-selected |
| S7 routing | No |
| S7 communication, as server | Yes |
| S7 communication, as client | No |
| TCP/IP | Yes |
| — Data length, max. | 64 kbyte2 kbyte; 1 472 bytes for UDP broadcast |
| — several passive connections per port, supported | Yes |
| ISO-on-TCP (RFC1006) | Yes |
| UDP | Yes |
| — UDP multicast | Yes; Max. 5 multicast circuits |
| DHCP | No |
| DNS | Yes |
| SNMP | Yes |
| DCP | Yes |
| LLDP | Yes |
| HTTP | No |
| HTTPS | No |
| OPC UA Client | No |
| OPC UA Server | No |
| MODBUS | Yes; MODBUS TCP |
| Equidistance | No |
| Number of login stations for message functions, max. | 32 |
| Program alarms | Yes |
| Number of configurable program messages, max. | 5 000; Program messages are generated by the "Program_Alarm" block, ProDiag or GRAPH |
| Number of loadable program messages in RUN, max. | 2 500 |
| Number of program alarms | 300 |
| Number of alarms for system diagnostics | 100 |
| Joint commission (Team Engineering) | No |
| Status block | Yes; up to 8 simultaneously |
| Single step | No |
| Number of breakpoints | 8; Breakpoints are only supported in RUN-Solo status |
| Status/control variable | Yes |
| Variables | Inputs/outputs, memory bits, DBs, distributed I/Os, timers, counters |
| — of which status variables, max. | 200; per job |
| — of which control variables, max. | 200; per job |
| Forcing | Yes |
| Forcing, variables | Peripheral inputs/outputs |
| Number of variables, max. | 200 |
| present | Yes |
| Number of entries, max. | 1 000 |
| — of which powerfail-proof | 500 |
| Number of configurable Traces | 4 |
| Memory size per trace, max. | 512 kbyte |
| RUN/STOP LED | Yes |
| ERROR LED | Yes |
| MAINT LED | Yes |
| Connection display LINK TX/RX | Yes |
| Motion Control | No |
| PID_Compact | Yes; Universal PID controller with integrated optimization |
| PID_3Step | Yes; PID controller with integrated optimization for valves |
| PID-Temp | Yes; PID controller with integrated optimization for temperature |
| Counting and measuring | Yes |
| horizontal installation, min. | 0 °C |
| horizontal installation, max. | 60 °C; Display: 50 °C, at an operating temperature of typically 50 °C, the display is switched off |
| vertical installation, min. | 0 °C |
| vertical installation, max. | 40 °C; Display: 40 °C, at an operating temperature of typically 40 °C, the display is switched off |
| min. | -40 °C |
| max. | 70 °C |
| Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| — LAD | Yes |
| — FBD | Yes |
| — STL | Yes |
| — SCL | Yes |
| — CFC | No |
| — GRAPH | Yes |
| User program protection/password protection | Yes |
| Copy protection | No |
| Block protection | Yes |
| protection of confidential configuration data | Yes |
| Password for display | Yes |
| Protection level: Write protection | Yes |
| Protection level: Read/write protection | Yes |
| Protection level: Complete protection | Yes |
| lower limit | adjustable minimum cycle time |
| upper limit | adjustable maximum cycle time |
| Width | 35 mm |
| Height | 147 mm |
| Depth | 129 mm |
| Weight, approx. | 430 g |
