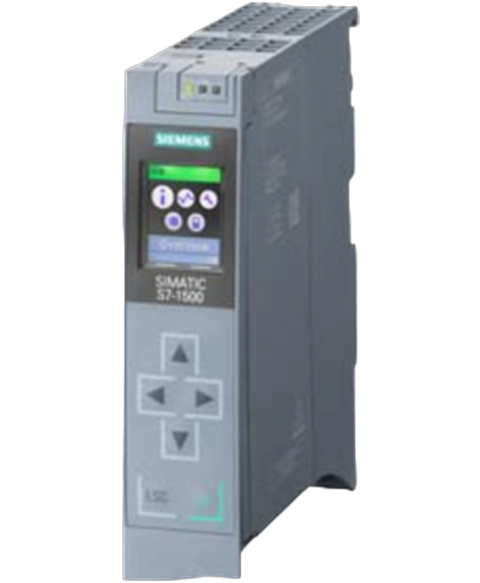

Siemens 6ES75111AK000AB0
SIMATIC S7-1500, CPU 1511-1 PN, Central processing unit with Work memory 150 KB for program and 1 MB for data, 1st interface, PROFINET IRT with 2-port switch, 60 ns bit performance, SIMATIC Memory Card required
This Siemens 6ES75111AK000AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Modular plcs range and is referenced internally as PartLogic SKU PL27101984086.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$1,226.87
(inc. GST)
In Stock
| Product type designation | CPU 1511-1 PN |
| HW functional status | FS06 |
| Firmware version | V1.8 |
| Isochronous mode | Yes; With minimum OB 6x cycle of 625 µs |
| STEP 7 TIA Portal configurable/integrated from version | V13 SP1 Update 4 |
| via dataset | Yes |
| Screen diagonal [cm] | 3.45 cm |
| Number of keys | 6 |
| Mode selector switch | 1 |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Mains/voltage failure stored energy time | 5 ms |
| Current consumption (rated value) | 0.7 A |
| Inrush current, max. | 1.9 A; Rated value |
| I²t | 0.02 A²·s |
| Infeed power to the backplane bus | 10 W |
| Power consumption from the backplane bus (balanced) | 5.5 W |
| Power loss, typ. | 5.7 W |
| SIMATIC memory card required | Yes |
| integrated (for program) | 150 kbyte |
| integrated (for data) | 1 Mbyte |
| Plug-in (SIMATIC Memory Card), max. | 32 Gbyte |
| maintenance-free | Yes |
| for bit operations, typ. | 60 ns |
| for word operations, typ. | 72 ns |
| for fixed point arithmetic, typ. | 96 ns |
| for floating point arithmetic, typ. | 384 ns |
| Number of elements (total) | 2 000; Blocks (OB, FB, FC, DB) and UDTs |
| Number range | 1 ... 60 999; subdivided into: number range that can be used by the user: 1 ... 59 999, and number range of DBs created via SFC 86: 60 000 ... 60 9990 ... 65 535 |
| Size, max. | 1 Mbyte; For non-optimized block accesses, the max. size of the DB is 64 KB150 kbyte16 kbyte |
| Number of free cycle OBs | 100 |
| Number of time alarm OBs | 20 |
| Number of delay alarm OBs | 20 |
| Number of cyclic interrupt OBs | 20 |
| Number of process alarm OBs | 50 |
| Number of DPV1 alarm OBs | 3 |
| Number of isochronous mode OBs | 1 |
| Number of technology synchronous alarm OBs | 2 |
| Number of startup OBs | 100 |
| Number of asynchronous error OBs | 4 |
| Number of synchronous error OBs | 2 |
| Number of diagnostic alarm OBs | 1 |
| per priority class | 24 |
| Number | 2 048Any (only limited by the main memory)16 |
| — adjustable | Yes |
| Retentive data area (incl. timers, counters, flags), max. | 128 kbyte; In total; available retentive memory for bit memories, timers, counters, DBs, and technology data (axes): 88 KB |
| Number of clock memories | 8; 8 clock memory bit, grouped into one clock memory byte |
| Retentivity adjustable | Yes |
| Retentivity preset | No |
| per priority class, max. | 64 kbyte; max. 16 KB per block |
| Number of IO modules | 1 024; max. number of modules / submodules |
| Inputs | 32 kbyte; All inputs are in the process image |
| Outputs | 32 kbyte; All outputs are in the process image |
| — Inputs (volume) | 8 kbyte |
| — Outputs (volume) | 8 kbyte |
| Number of subprocess images, max. | 32 |
| Number of distributed IO systems | 20 |
| Via CM | 4; A maximum of 4 CMs/CPs (PROFIBUS, PROFINET, Ethernet) can be inserted in total |
| integrated | 1 |
| Modules per rack, max. | 32; CPU + 31 modules |
| Number of lines, max. | 1 |
| Number of PtP CMs | the number of connectable PtP CMs is only limited by the number of available slots |
| Type | Hardware clock |
| Backup time | 6 wk; At 40 °C ambient temperature, typically |
| Deviation per day, max. | 10 s; Typ.: 2 s |
| supported | Yes |
| in AS, master | Yes |
| in AS, device | Yes |
| on Ethernet via NTP | Yes |
| Number of PROFINET interfaces | 1 |
| RJ 45 (Ethernet) | Yes; X1 |
| Number of ports | 2 |
| integrated switch | Yes |
| PROFINET IO Controller | Yes |
| PROFINET IO Device | Yes |
| SIMATIC communication | Yes |
| Open IE communication | Yes |
| Web server | Yes |
| Media redundancy | Yes |
| — PG/OP communication | Yes |
| — Isochronous mode | YesNo |
| — IRT | Yes |
| — PROFIenergy | Yes |
| — Prioritized startup | Yes; Max. 32 PROFINET devices |
| — Number of connectable IO Devices, max. | 128; In total, up to 256 distributed I/O devices can be connected via PROFIBUS or PROFINET |
| — Of which IO devices with IRT, max. | 64 |
| — Number of connectable IO Devices for RT, max. | 128 |
| — of which in line, max. | 128 |
| — Number of IO Devices that can be simultaneously activated/deactivated, max. | 8 |
| — Number of IO Devices per tool, max. | 8 |
| — Updating times | The minimum value of the update time also depends on communication share set for PROFINET IO, on the number of IO devices, and on the quantity of configured user data |
| — for send cycle of 250 µs | 250 μs to 4 ms; Note: In the case of IRT with isochronous mode, the minimum update time of 625 µs of the isochronous OB is decisive250 µs to 128 ms |
| — for send cycle of 500 µs | 500 μs to 8 ms; Note: In the case of IRT with isochronous mode, the minimum update time of 625 µs of the isochronous OB is decisive500 µs to 256 ms |
| — for send cycle of 1 ms | 1 ms to 16 ms1 ms to 512 ms |
| — for send cycle of 2 ms | 2 ms to 32 ms2 ms to 512 ms |
| — for send cycle of 4 ms | 4 ms to 64 ms4 ms to 512 ms |
| — With IRT and parameterization of "odd" send cycles | Update time = set "odd" send clock (any multiple of 125 µs: 375 µs, 625 µs ... 3 875 µs) |
| — Shared device | Yes |
| — Number of IO Controllers with shared device, max. | 4 |
| 100 Mbps | Yes |
| Autonegotiation | Yes |
| Autocrossing | Yes |
| Industrial Ethernet status LED | Yes |
| PROFIsafe | No |
| Number of connections, max. | 96; via integrated interfaces of the CPU and connected CPs / CMs |
| Number of connections reserved for ES/HMI/web | 10 |
| Number of connections via integrated interfaces | 64 |
| Number of S7 routing paths | 16 |
| — MRP | Yes; as MRP redundancy manager and/or MRP client; max. number of devices in the ring: 50 |
| — Switchover time on line break, typ. | 200 ms |
| — Number of stations in the ring, max. | 50 |
| S7 routing | Yes |
| S7 communication, as server | Yes |
| S7 communication, as client | Yes |
| User data per job, max. | See online help (S7 communication, user data size) |
| TCP/IP | Yes |
| — Data length, max. | 64 kbyte1 472 byte |
| — several passive connections per port, supported | Yes |
| ISO-on-TCP (RFC1006) | Yes |
| UDP | Yes |
| DHCP | No |
| SNMP | Yes |
| DCP | Yes |
| LLDP | Yes |
| HTTP | Yes; Standard and user-defined pages |
| HTTPS | Yes; Standard and user-defined pages |
| MODBUS | Yes; MODBUS TCP |
| Equidistance | Yes |
| Number of login stations for message functions, max. | 32 |
| Program alarms | Yes |
| Number of configurable program messages, max. | 5 000 |
| Number of program alarms | 300 |
| Number of alarms for system diagnostics | 100 |
| Number of alarms for motion technology objects | 80 |
| Joint commission (Team Engineering) | Yes; Parallel online access possible for up to 5 engineering systems |
| Status block | Yes; Up to 8 simultaneously (in total across all ES clients) |
| Single step | No |
| Status/control variable | Yes |
| Variables | Inputs/outputs, memory bits, DBs, distributed I/Os, timers, counters |
| — of which status variables, max. | 200; per job |
| — of which control variables, max. | 200; per job |
| Forcing, variables | Peripheral inputs/outputs |
| Number of variables, max. | 200 |
| present | Yes |
| Number of entries, max. | 1 000 |
| — of which powerfail-proof | 500 |
| Number of configurable Traces | 4; Up to 512 KB of data per trace are possible |
| RUN/STOP LED | Yes |
| ERROR LED | Yes |
| MAINT LED | Yes |
| Connection display LINK TX/RX | Yes |
| Motion Control | Yes |
| — Number of speed-controlled axes, max. | 6; Requirement: There must be no other motion technology objects created; note: The number of axes affects the cycle time of the PLC program; selection guide via the TIA Selection Tool |
| — Number of positioning axes, max. | 6; Requirement: There must be no other motion technology objects created; note: The number of axes affects the cycle time of the PLC program; selection guide via the TIA Selection Tool |
| — Number of axes, max. | 3; Requirement: There must be no other motion technology objects created; note: The number of axes affects the cycle time of the PLC program; selection guide via the TIA Selection Tool |
| — Number of external encoders, max. | 6; Requirement: There must be no other motion technology objects created; note: The number of axes affects the cycle time of the PLC program; selection guide via the TIA Selection Tool |
| PID_Compact | Yes; Universal PID controller with integrated optimization |
| PID_3Step | Yes; PID controller with integrated optimization for valves |
| PID-Temp | Yes; PID controller with integrated optimization for temperature |
| High-speed counter | Yes |
| horizontal installation, min. | 0 °C |
| horizontal installation, max. | 60 °C; Display: 50 °C, at an operating temperature of typically 50 °C, the display is switched off |
| vertical installation, min. | 0 °C |
| vertical installation, max. | 40 °C; Display: 40 °C, at an operating temperature of typically 40 °C, the display is switched off |
| — LAD | Yes |
| — FBD | Yes |
| — STL | Yes |
| — SCL | Yes |
| — GRAPH | Yes |
| User program protection/password protection | Yes |
| Copy protection | Yes |
| Block protection | Yes |
| Password for display | Yes |
| Protection level: Write protection | Yes |
| Protection level: Read/write protection | Yes |
| Protection level: Complete protection | Yes |
| lower limit | adjustable minimum cycle time |
| upper limit | adjustable maximum cycle time |
| Width | 35 mm |
| Height | 147 mm |
| Depth | 129 mm |
| Weight, approx. | 430 g |
