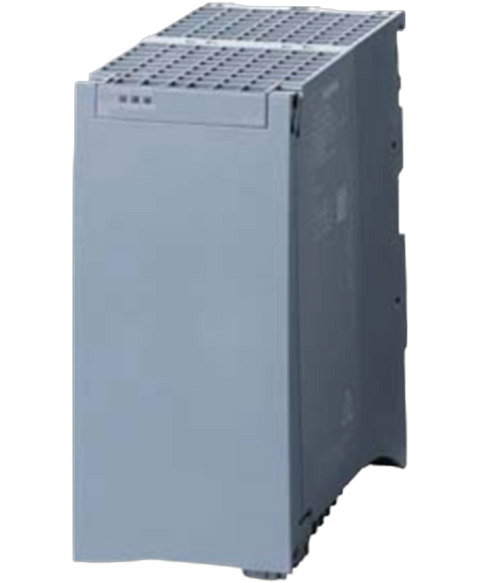

Siemens 6ES75070RA000AB0
SIMATIC S7-1500, System power supply PS 60W 120,AC 230 V DC, supplies the backplane bus of the S7-1500 with operating voltage
This Siemens 6ES75070RA000AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Power supplies range and is referenced internally as PartLogic SKU PL27101978434.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product type designation | PS 60 W 120/230 V AC/DC |
| HW functional status | from FS01 |
| Firmware version | from V1.0.0 |
| STEP 7 TIA Portal configurable/integrated from version | V12 / V12 |
| STEP 7 configurable/integrated from version | V5.5 SP3 or higher |
| Rated value (DC) | 120 V / 230 V |
| permissible range, lower limit (DC) | 88 V |
| permissible range, upper limit (DC) | 300 V |
| Rated value (AC) | 120 V / 230 V |
| permissible range, lower limit (AC) | 85 V |
| permissible range, upper limit (AC) | 264 V |
| Short-circuit protection | Yes |
| Rated value 50 Hz | Yes |
| permissible range, lower limit | 47 Hz |
| permissible range, upper limit | 63 Hz |
| Mains/voltage failure stored energy time | 20 ms |
| Rated value at 120 V DC | 0.6 A |
| Rated value at 230 V DC | 0.3 A |
| Rated value at 120 V AC | 0.6 A |
| Rated value at 230 V AC | 0.34 A |
| Infeed power to the backplane bus | 60 W |
| Power loss at nominal rating conditions | 12 W |
| Status indicator | Yes |
| primary/secondary | Yes |
| Isolation tested with | 2 500 V DC/2 s (routine test) |
| Interference immunity on supply lines acc. to IEC 61000-4-5 | Yes; ±1 kV (acc. to IEC 61000-4-5; 1995; surge symm.), ±2 kV (acc. to IEC 61000-4-5; 1995; surge asymm.), no external protective circuit required |
| Equipment protection class | I, with protective conductor |
| min. | -25 °C; up to FS04: 0 °C |
| max. | 60 °C |
| Installation altitude above sea level, max. | 2 000 m |
| Width | 70 mm |
| Height | 147 mm |
| Depth | 129 mm |
| Weight, approx. | 600 g |
