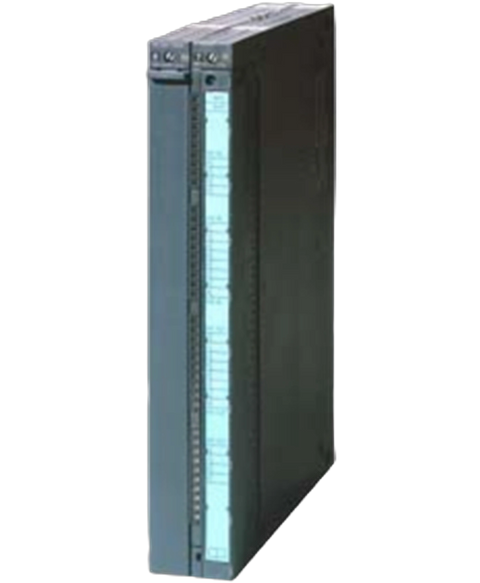

Siemens 6ES74533AH000AE0
SIMATIC S7-400, function module FM 453, (3-channel) for positioning with servo and stepper motors, incl. configuration package on CD
This Siemens 6ES74533AH000AE0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL27101976648.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 20.4 V; Dynamic 18.5 V |
| permissible range, upper limit (DC) | 28.8 V; dynamic 30.2 V |
| from load voltage1L+, max. | 1 A; with 24 V position encoder; 1 A for 5 V position encoder |
| from load voltage 2L+ to 4L+, max. | 2 A; Per channel |
| from backplane bus 5 V DC, max. | 1.6 A; Rated current |
| 5 V | Yes |
| Output current, max. | 300 mA60 mA |
| Cable length, max. | 35 m; at max. 210 mA; 25 m at max. 300 mA100 m; at max. 300 mA |
| 24 V | Yes |
| Power loss, typ. | 8 W |
| Number of digital inputs | 6; for each channel/axis |
| Functions | configurable |
| for signal "0" | -3 to +5 V (max. 3 mA) |
| for signal "1" | 11 to 30 V (max. 7 mA) |
| — at "0" to "1", max. | 15 µs; via input voltage range, 8 µs at 24 V DC |
| — at "1" to "0", max. | 45 µs; via input voltage range |
| Number of digital outputs | 4; for each channel/axis |
| Short-circuit protection | Yes |
| for signal "1", min. | UP - 0,3 V |
| for signal "1" rated value | 0.5 A; at 40 °C; 0.1 A at 60 °C |
| for signal "1" permissible range for 0 to 40 °C, min. | 5 mA |
| for signal "1" permissible range for 0 to 40 °C, max. | 0.6 A |
| for signal "1" permissible range for 40 to 60 °C, min. | 5 mA |
| for signal "1" permissible range for 40 to 60 °C, max. | 0.12 A |
| for signal "0" residual current, max. | 2 mA |
| with resistive load, max. | 100 Hz |
| with inductive load, max. | 0.25 Hz |
| Incremental encoder (symmetrical) | Yes |
| Absolute encoder (SSI) | Yes |
| Input voltage | 5 V difference signal (phys. RS 422) |
| Input frequency, max. | 1 MHz; for 10 m cable length; 0.5 MHz for 35 m cable length |
| Input signal | 5 V difference signal (phys. RS 422) |
| Clock frequency, max. | 1.25 Mbit/s at 10 cable length (2.5 Mbit/s available soon) |
| Cable length, shielded, max. | 250 m; At max. 156 kbit/s35 m; 35 m with symm. transmission; 10 m with asymm. transmission |
| Type | Drive interface step, signal input "READY 1" |
| Function | "Power section ready" where Ui < 1 V, Ii = 2 mA |
| — Rated voltage range | -10 to +10V |
| — Output current | -3 to +3 mA |
| — Cable length, max. | 30 m |
| — Switching voltage, max. | 50 V |
| — Switching current, max. | 1 A |
| — Switching capacity, max. | 30 VA |
| Differential output voltage, min. | 2 V; RL = 100 Ohm |
| Differential output voltage for signal "0", max. | 1.1 V; Io = 30 mA |
| Differential output voltage for signal "1", min. | 3.7 V; Io = -30 mA |
| Load resistance, min. | 55 Ω |
| Pulse frequency | 200 kHz; 500 kHz available soon |
| Potential separation digital inputs | Yes; Optocoupler |
| Potential separation digital outputs | Yes; Optocoupler |
| min. | 0 °C-40 °C |
| max. | 55 °C70 °C |
| required front connector | 1x 48-pin |
| Width | 50 mm |
| Height | 290 mm |
| Depth | 210 mm |
| Weight, approx. | 1 620 g |
