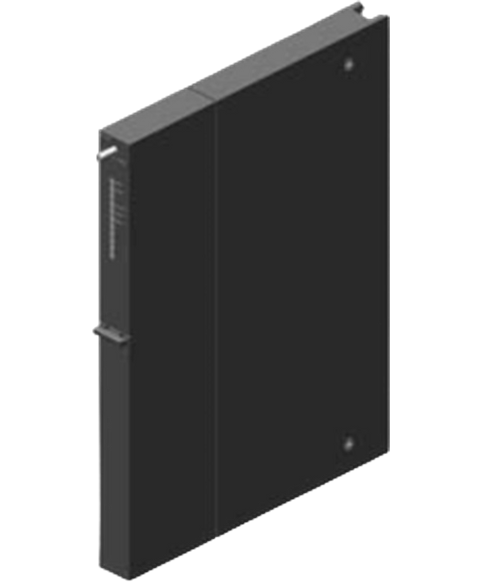

Siemens 6ES74412AA050AE0
SIMATIC S7-400, coupling module CP 441-2 for point-to-point connections, 2 channels incl. configuration package on CD
This Siemens 6ES74412AA050AE0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL27101966983.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| 5 V DC | Yes |
| 24 V DC | Yes |
| from backplane bus 5 V DC, max. | 300 mA; Without interface module |
| Power loss, typ. | 2.7 W; incl. 2x20mA TTY module |
| Memory requirements per interface in memory card of S7-CPU | 1 to 5 KB for parameters; 0 to 55 KB for message texts; 0 to 64 KB for loadable drivers |
| Number of interfaces | 2; variable |
| Transmission rate, max. | 115.2 kbit/s; Min. 300 bps |
| supported printers | HP-Deskjet, HP-Laserjet, IBM-Proprinter, user-defined |
| — 3964 (R) | Yes |
| — ASCII | Yes |
| — RK 512 | Yes |
| — Printer | Yes |
| — customer-specific drivers reloadable | No |
| — with 3964 (R) protocol, max. | 19.2 kbit/s115.2 kbit/s |
| — with ASCII protocol, max. | 19.2 kbit/s115.2 kbit/s |
| — with printer driver, max. | 19.2 kbit/s115.2 kbit/s |
| — with RK 512 protocol, max. | 19.2 kbit/s115.2 kbit/s |
| min. | 0 °C |
| max. | 60 °C70 °C |
| Operation, max. | 95 %; no condensation |
| Width | 25 mm |
| Height | 290 mm |
| Depth | 210 mm |
| Weight, approx. | 580 g; Interface modules: 80 g |
