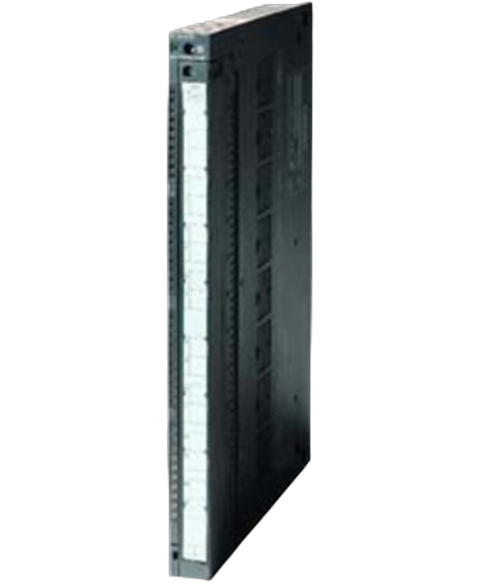

Siemens 6ES74317KF000AB0
SIMATIC S7-400, analog input SM 431, 8 AI, resolution 16 bit, U,I,Thermocouple, isolated with single rooting, diagnostics, alarm, 20 ms conversion time
This Siemens 6ES74317KF000AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL27101954798.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| from backplane bus 5 V DC, max. | 1 200 mA |
| Power loss, typ. | 4.6 W |
| Number of analog inputs | 8 |
| For voltage/current measurement | 8 |
| permissible input voltage for voltage input (destruction limit), max. | 35 V; 35 V continuous, 75 V for max. 1 s (mark to space ratio 1:20) |
| permissible input current for current input (destruction limit), max. | 32 mA |
| Voltage | Yes |
| Current | Yes |
| Thermocouple | Yes |
| Resistance thermometer | No |
| Resistance | No |
| 1 V to 5 V | Yes |
| — Input resistance (1 V to 5 V) | > 2 000 ohms |
| -1 V to +1 V | Yes |
| -10 V to +10 V | Yes |
| -100 mV to +100 mV | Yes |
| -2.5 V to +2.5 V | Yes |
| -20 mV to +20 mV | Yes |
| -250 mV to +250 mV | Yes |
| -5 V to +5 V | Yes |
| -50 mV to +50 mV | Yes |
| -500 mV to +500 mV | Yes |
| -80 mV to +80 mV | Yes |
| 0 to 20 mA | Yes |
| -10 mA to +10 mA | Yes |
| -20 mA to +20 mA | Yes |
| -3.2 mA to +3.2 mA | Yes |
| 4 mA to 20 mA | Yes |
| — Input resistance (4 mA to 20 mA) | 50 Ω |
| -5 mA to +5 mA | Yes |
| Type B | Yes |
| — Input resistance (Type B) | > 2 000 ohms |
| Type E | Yes |
| Type J | Yes |
| Type K | Yes |
| Type L | Yes |
| Type N | Yes |
| — Input resistance (Type N) | > 2 000 ohms |
| Type R | Yes |
| Type S | Yes |
| Type T | Yes |
| Type U | Yes |
| — connection for compensating the cold junction | 6ES7431-7KF00-6AA0 |
| — parameterizable | Yes |
| — internal temperature compensation | Yes |
| — external temperature compensation with compensations socket | Yes |
| — dynamic reference temperature value | Yes |
| parameterizable | Yes |
| — for thermocouples | Type B, E, J, K, L, N, R, S, T, U |
| shielded, max. | 200 m |
| Resolution with overrange (bit including sign), max. | 16 bit |
| Integration time, parameterizable | Yes |
| Basic conversion time (ms) | 10 / 16,7 / 20 / 100 |
| Integration time (ms) | 2,5 / 16,7 / 20 / 100 |
| Interference voltage suppression for interference frequency f1 in Hz | 400 / 60 / 50 / 10 Hz |
| for voltage measurement | Yes; possible |
| for current measurement as 4-wire transducer | Yes |
| for resistance measurement with four-wire connection | Yes |
| Voltage, relative to input range, (+/-) | 0.3 %0.1 % |
| Current, relative to input range, (+/-) | 0.5 %0.17 % |
| Diagnostics function | Yes; Parameterizable |
| Diagnostic alarm | Yes; Parameterizable |
| Limit value alarm | Yes |
| Hardware interrupt | Yes; Parameterizable |
| Diagnostic information readable | Yes; possible |
| Potential separation analog inputs | Yes; internal/external |
| between the channels | Yes |
| between the channels and backplane bus | Yes |
| Isolation tested with | 1 500 V DC |
| Width | 25 mm |
| Height | 290 mm |
| Depth | 210 mm |
| Weight, approx. | 650 g |
