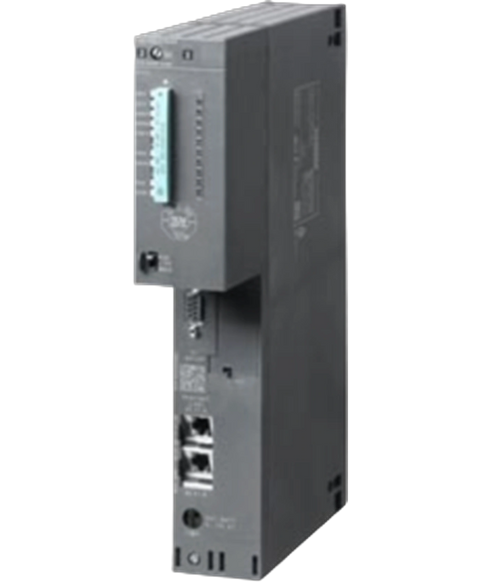

Product image for illustrative purposes only. Actual item may vary.
Siemens 6ES74163FS070AB0
SIMATIC S7-400, CPU416F-3 PN,DP Central processing unit with: Work memory 16 MB, (8 MB code, 8 MB data), interfaces 1st interface MPI,DP 12 Mbit,s, (X1), 2nd interface Ethernet,PROFINET (X5) 3rd interface IF 964-DP plug-in (IF1)
This Siemens 6ES74163FS070AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Modular plcs range and is referenced internally as PartLogic SKU PL27101921188.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$10,512.25
(inc. GST)
In Stock
| Product type designation | CPU 416F-3 PN/DP |
| HW functional status | 01 |
| Firmware version | V7.0 |
| Isochronous mode | Yes; Via PROFIBUS DP or PROFINET interface |
| Programming package | STEP 7 V5.5 or higher with HSP 262 |
| CiR synchronization time, basic load | 100 ms |
| CiR synchronization time, time per I/O byte | 10 µs |
| Rated value (DC) | Power supply via system power supply |
| from backplane bus 5 V DC, typ. | 1.3 A |
| from backplane bus 5 V DC, max. | 1.6 A |
| from backplane bus 24 V DC, max. | 300 mA; 150 mA per DP interface |
| from interface 5 V DC, max. | 90 mA; At each DP interface |
| Power loss, typ. | 6.5 W |
| Type of memory | RAM |
| integrated | 16 Mbyte1 |
| integrated (for program) | 8 Mbyte |
| integrated (for data) | 8 Mbyte |
| expandable | No |
| expandable FEPROM | Yes; with Memory Card (FLASH) |
| expandable FEPROM, max. | 64 Mbyte |
| integrated RAM, max. | 1 Mbyte |
| expandable RAM | Yes; with Memory Card (RAM) |
| expandable RAM, max. | 64 Mbyte |
| present | Yes |
| with battery | Yes; all data |
| without battery | No |
| Backup current, typ. | 180 µA; up to 40 °C |
| Backup current, max. | 850 µA |
| Backup time, max. | Dealt with in the module data manual with the secondary conditions and the factors of influence |
| Feeding of external backup voltage to CPU | 5 V DC to 15 V DC |
| for bit operations, typ. | 12.5 ns |
| for word operations, typ. | 12.5 ns |
| for fixed point arithmetic, typ. | 12.5 ns |
| for floating point arithmetic, typ. | 25 ns |
| Number, max. | 10 000; Number range: 1 to 160005 000; Number range: 0 to 7999see instruction list |
| Size, max. | 64 kbyte16 kbyte; Size of bit memory address area |
| Number of free cycle OBs | 1; OB 1 |
| Number of time alarm OBs | 8; OB 10-17 |
| Number of delay alarm OBs | 4; OB 20-23 |
| Number of cyclic interrupt OBs | 9; OB 30-38 (shortest cycle that can be set = 500 µs) |
| Number of process alarm OBs | 8; OB 40-47 |
| Number of DPV1 alarm OBs | 3; OB 55-57 |
| Number of isochronous mode OBs | 4; OB 61-64 |
| Number of multicomputing OBs | 1; OB 60 |
| Number of background OBs | 1; OB 90 |
| Number of startup OBs | 2; OB 100, 102 |
| Number of asynchronous error OBs | 9; OB 80-88 |
| Number of synchronous error OBs | 2; OB 121, 122 |
| per priority class | 24 |
| additional within an error OB | 2 |
| Number | 2 048Unlimited (limited only by RAM capacity)16 |
| — adjustable | Yes |
| — preset | Z 0 to Z 7No times retentive120 |
| — lower limit | 010 ms |
| — upper limit | 9999 990 s |
| Type | SFB |
| Retentive data area (incl. timers, counters, flags), max. | Total working and load memory (with backup battery) |
| Retentivity available | Yes |
| Retentivity preset | MB 0 to MB 15 |
| Number of clock memories | 8; in 1 memory byte |
| adjustable, max. | 32 kbyte |
| preset | 16 kbyte |
| Inputs | 16 kbyte131 0728 192 |
| Outputs | 16 kbyte131 0728 192 |
| Inputs, adjustable | 16 kbyte |
| Outputs, adjustable | 16 kbyte |
| Inputs, default | 512 byte |
| Outputs, default | 512 byte |
| consistent data, max. | 244 byte |
| Access to consistent data in process image | Yes |
| Number of subprocess images, max. | 15 |
| — of which central | 131 0728 192 |
| Number of expansion units, max. | 21 |
| connectable OPs | 95 |
| Multicomputing | Yes; 4 CPUs max. (with UR1 or UR2) |
| Number of connectable IMs (total), max. | 6 |
| Number of connectable IM 460s, max. | 6 |
| Number of connectable IM 463s, max. | 4; IM 463-2 |
| via CP | 10; CP 443-5 Extended4; Max. 4 in the central controller; no mixed operation of different CP 443-1 types in PROFINET IO mode |
| via IM 467 | 4 |
| Mixed mode IM + CP permitted | No; IM 467 cannot be used jointly with CP 443-5 Ext. or CP 443-1 in PROFINET IO mode |
| via interface module | 1; IF 964-DP |
| Number of pluggable S5 modules (via adapter capsule in central device), max. | 6 |
| FM | Limited by number of slots or number of connections |
| CP, PtP | CP 440: Limited by number of slots; CP 441: Limited by number of slots and number of connections |
| PROFIBUS and Ethernet CPs | 14; In total max. 10 CPs as DP master and PROFINET controller, of which up to 10 IMs or CPs as DP master and up to 4 CPs as PROFINET controller |
| required slots | 2 |
| Hardware clock (real-time) | Yes |
| retentive and synchronizable | Yes |
| Resolution | 1 ms |
| Deviation per day (buffered), max. | 1.7 s; Power off |
| Deviation per day (unbuffered), max. | 8.6 s; For power On |
| Number/Number range | 0 to 15 |
| Range of values | SFCs 2, 3 and 4: 0 to 32767 hours SFC 101: 0 to 2^31 - 1 hours |
| Granularity | 1 h |
| retentive | Yes |
| supported | YesYes; Via FC AG_SEND and AG_RECV, max. via 10 CP 443-1 or 443-5Yes; Via CP and loadable FB |
| to MPI, master | Yes |
| on MPI, device | Yes |
| to DP, master | Yes |
| on DP, device | Yes |
| in AS, master | Yes |
| in AS, device | Yes |
| on Ethernet via NTP | Yes; As client |
| to IF 964 DP | Yes |
| Ethernet, max. | 10 ms |
| MPI, max. | 200 ms |
| Interfaces/bus type | 1 x MPI/PROFIBUS DP, 1 x PROFINET (2 ports), 1 x PROFIBUS DP (optionally pluggable) |
| Number of RS 485 interfaces | 1; Combined MPI / PROFIBUS DP |
| Number of other interfaces | 1; PROFIBUS DP with IF 964-DP (plug-in option; MLFB: 6ES7964-2AA04-0AB0) |
| Interface type | MPI/PROFIBUS DPPROFINETPluggable interface module (IF) |
| Isolated | Yes |
| RS 485 | Yes |
| Output current of the interface, max. | 150 mA |
| MPI | YesNo |
| PROFIBUS DP master | YesNo |
| PROFIBUS DP device | YesNo |
| Number of connections | 44; If a diagnostics repeater is used on the line, the number of connection resources on the line is reduced by 132 |
| Transmission rate, max. | 12 Mbit/s100 Mbit/s |
| — PG/OP communication | YesYes; with interface active |
| — Routing | YesYes; S7 routingYes; with interface active |
| — Global data communication | YesNo |
| — S7 basic communication | YesNo |
| — S7 communication | Yes |
| — S7 communication, as client | Yes |
| — S7 communication, as server | Yes |
| Number of connections, max. | 32; If a diagnostics repeater is used on the line, the number of connection resources on the line is reduced by 19432 |
| max. number of DP devices | 32125 |
| — Equidistance | Yes |
| — Isochronous mode | YesYes; Only with IRT and the High Performance optionNo |
| — SYNC/FREEZE | Yes |
| — activation/deactivation of DP devices | Yes |
| — Direct data exchange (slave-to-slave communication) | YesNo |
| — DPV1 | YesNo |
| — Inputs, max. | 2 kbyte244 byte8 kbyte1 440 byte; Per IO Controller with shared device |
| — Outputs, max. | 2 kbyte244 byte8 kbyte1 440 byte; Per IO Controller with shared device |
| — user data per DP device, max. | 244 byte |
| — Slots, max. | 244 |
| — per slot, max. | 128 byte |
| GSD file | http://support.automation.siemens.com/WW/view/en/113652 |
| automatic baud rate search | No |
| Address area, max. | 32; Virtual slots |
| User data per address area, max. | 32 byte |
| — of which consistent, max. | 32 byte |
| — Inputs | 244 byte |
| — Outputs | 244 byte |
| automatic detection of transmission rate | Yes; AutosensingNo |
| Autonegotiation | Yes |
| Autocrossing | Yes |
| Change of IP address at runtime, supported | Yes; Assignment by higher-level IO-Controller or by the user program with SFB104 "IP_CONF" |
| RJ 45 (Ethernet) | Yes |
| Number of ports | 2 |
| integrated switch | Yes |
| PROFINET IO Controller | Yes |
| PROFINET IO Device | Yes |
| PROFINET CBA | Yes |
| Open IE communication | Yes |
| Web server | Yes |
| Point-to-point connection | No |
| Media redundancy | Yes |
| — Shared device | Yes |
| — Prioritized startup | Yes |
| — Number of IO devices with prioritized startup, max. | 32 |
| — Number of connectable IO Devices, max. | 256 |
| — Of which IO devices with IRT, max. | 64 |
| — of which in line, max. | 6461256 |
| — Number of IO Devices with IRT and the option "high flexibility" | 256 |
| — Number of connectable IO Devices for RT, max. | 256 |
| — Activation/deactivation of IO Devices | Yes |
| — Number of IO Devices that can be simultaneously activated/deactivated, max. | 8 |
| — IO Devices changing during operation (partner ports), supported | Yes |
| — Number of IO Devices per tool, max. | 8; 8 parallel calls of the SFC 12 "D_ACT_DP" possible per line. Max. 32 IO Devices changing during operation (partner ports) are supported |
| — Device replacement without swap medium | Yes |
| — Send cycles | 250 μs, 500 μs, 1 ms, 2 ms, 4 ms additionally with IRT with high performance: 250 µs to 4 ms in 125 µs frame |
| — Updating time | 250 µs to 512 ms; minimum value depends on preset communication share for PROFINET IO, on the number of IO Devices and on the amount of configured user data, see PROFINET system description |
| — User data consistency, max. | 1 024 byte |
| — IRT | Yes |
| — Number of IO Controllers with shared device, max. | 2 |
| — Number, max. | 64 |
| — User data per submodule, max. | 1 024 byte |
| acyclic transmission | Yes |
| cyclic transmission | Yes |
| Local port numbers used at the system end | 0, 20, 21, 25, 80, 102, 135, 161, 34962, 34963, 34964, 65532, 65533, 65534, 65535 |
| Keep-alive function, supported | Yes |
| Plug-in interface modules | IF 964-DP (MLFB: 6ES7964-2AA04-0AB0) |
| — DPV0 | Yes |
| — Switchover time on line break, typ. | 200 ms |
| — Number of stations in the ring, max. | 50 |
| S7 routing | Yes |
| TCP/IP | Yes; via integrated PROFINET interface and loadable FBs |
| — Number of connections, max. | 94 |
| — Data length, max. | 32 kbyte32 kbyte; 1 452 bytes via CP 443-1 Adv.1 472 byte |
| — several passive connections per port, supported | Yes |
| ISO-on-TCP (RFC1006) | Yes; Via integrated PROFINET interface or CP 443-1 and loadable FBs |
| UDP | Yes; via integrated PROFINET interface and loadable FBs |
| User-defined websites | Yes |
| Number of HTTP clients | 5 |
| Equidistance | Yes |
| Number of DP masters with isochronous mode | 2 |
| User data per isochronous slave, max. | 244 byte |
| shortest clock pulse | 1 ms; 0.5 ms without use of SFC 126, 127 |
| max. cycle | 32 ms |
| PG/OP communication | Yes |
| Number of connectable OPs with message processing | 95; When using Alarm_S/SQ and Alarm_D/DQ |
| Number of connectable OPs without message processing | 95 |
| Data record routing | Yes |
| Number of GD loops, max. | 16 |
| Number of GD packets, transmitter, max. | 16 |
| Number of GD packets, receiver, max. | 32 |
| Size of GD packets, max. | 54 byte |
| Size of GD packet (of which consistent), max. | 1 variable |
| User data per job, max. | 76 byte64 kbyte8 kbyte |
| User data per job (of which consistent), max. | 1 variable462 byte; 1 variable240 byte |
| as server | Yes |
| as client | Yes |
| Number of simultaneous AG-SEND/AG-RECV orders per CPU, max. | 64/64 |
| Setpoint for the CPU communication load | 20 % |
| Number of remote interconnection partners | 32 |
| number of master/device functions | 150 |
| total of all master/device connections | 6 000 |
| data length of all incoming master/device connections, max. | 65 000 byte |
| data length of all outgoing master/device connections, max. | 65 000 byte |
| Number of device-internal and PROFIBUS interconnections | 1 000 |
| Data length of device-internal und PROFIBUS interconnections, max. | 16 000 byte |
| Data length per connection, max. | 2 000 byte |
| — Transmission frequency: Transmission interval, min. | 1 ms; Depending on preset communication load, number of interconnections and data length used |
| — Number of incoming interconnections | 300 |
| — Number of outgoing interconnections | 300 |
| — Data length of all incoming interconnections, max. | 4 800 byte |
| — Data length of all outgoing interconnections, max. | 4 800 byte |
| — Data length per connection, max. | 450 byte240 byte; Slave-dependent |
| — Number of stations that can log on for HMI variables (PN OPC/iMap) | 2x PN OPC/1x iMap |
| — HMI variable updating | 500 ms |
| — Number of HMI variables | 1 500 |
| — Data length of all HMI variables, max. | 48 000 byte |
| — supported | Yes; 32 PROFIBUS slaves max. connectable |
| overall | 96 |
| usable for PG communication | 95 |
| — reserved for PG communication | 1 |
| — adjustable for PG communication, max. | 0 |
| usable for OP communication | 95 |
| — reserved for OP communication | 1 |
| — adjustable for OP communication, max. | 0 |
| usable for S7 basic communication | 94 |
| — reserved for S7 basic communication | 0 |
| — adjustable for S7 basic communication, max. | 0 |
| usable for S7 communication | 94 |
| — reserved for S7 communication | 0 |
| — adjustable for S7 communication, max. | 0 |
| usable for routing | 47 |
| — reserved for routing | 0 |
| — adjustable for routing, max. | 0 |
| Number of login stations for message functions, max. | 95; Max. 95 with Alarm_S/SQ and Alarm_D/DQ (OPs); max. 16 with Alarm, Alarm_8, Alarm_8P, Notify and Notify_8 (e.g. WinCC) |
| Symbol-related messages | Yes |
| SCAN procedure | Yes |
| Program alarms | Yes |
| Process diagnostic messages | Yes |
| simultaneously active Alarm_S blocks, max. | 1 000; Simultaneously active alarm_S/SQ blocks or alarm_D/DQ blocks |
| Alarm 8-blocks | Yes |
| Number of instances for alarm 8 and S7 communication blocks, max. | 4 000 |
| preset, max. | 600 |
| Process control messages | Yes |
| Number of archives that can log on simultaneously (SFB 37 AR_SEND) | 32 |
| overall, max. | 1 024 |
| in 100 ms grid, max. | 128 |
| in 500 ms grid, max. | 512 |
| in 1000 ms grid, max. | 1 024 |
| with 100 ms grid, max. | 1 |
| with 500, 1000 ms grid, max. | 10 |
| Status block | Yes; Up to 16 simultaneously |
| Single step | Yes |
| Number of breakpoints | 16 |
| Status/control variable | Yes; Up to 16 variable tables |
| Variables | Inputs/outputs, memory bits, DBs, distributed I/Os, timers, counters |
| Number of variables, max. | 70; Status/control512 |
| Forcing | Yes |
| Forcing, variables | Inputs/outputs, bit memories, distributed I/Os |
| Number of entries, max. | 3 200 |
| can be read out | Yes |
| CE mark | Yes |
| CSA approval | Yes |
| UL approval | Yes |
| cULus | Yes |
| FM approval | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| EAC (formerly Gost-R) | Yes |
| ATEX | ATEX II 3G Ex nA IIC T4 Gc |
| min. | 0 °C |
| max. | 60 °C |
| STEP 7 | Yes |
| Command set | see instruction list |
| Nesting levels | 7 |
| System functions (SFC) | see instruction list |
| System function blocks (SFB) | see instruction list |
| — LAD | Yes |
| — FBD | Yes |
| — STL | Yes |
| — SCL | Yes |
| — CFC | Yes |
| — GRAPH | Yes |
| — HiGraph® | Yes |
| — DPSYC_FR | 2; SFC 11; per interface |
| — D_ACT_DP | 8; SFC 12; per interface |
| — RD_REC | 8; SFC 59; per interface |
| — WR_REC | 8; SFC 58; per interface |
| — WR_PARM | 8; SFC 55; per interface |
| — PARM_MOD | 1; SFC 57; per interface |
| — WR_DPARM | 2; SFC 56; per interface |
| — DPNRM_DG | 8; SFC 13; per interface |
| — RDSYSST | 8; SFC 51 |
| — DP_TOPOL | 1; SFC 103; per interface |
| — RDREC | 8; SFB 52; per interface, but not more than 32 across all external interfaces |
| — WRREC | 8; SFB 53; per interface, but not more than 32 across all external interfaces |
| User program protection/password protection | Yes |
| Block encryption | Yes; With S7 block Privacy |
| Width | 50 mm |
| Height | 290 mm |
| Depth | 219 mm |
| Weight, approx. | 900 g |
Struggling to find what you're looking for?
Can’t find what you’re looking for? Get in touch — we can source it for you.
