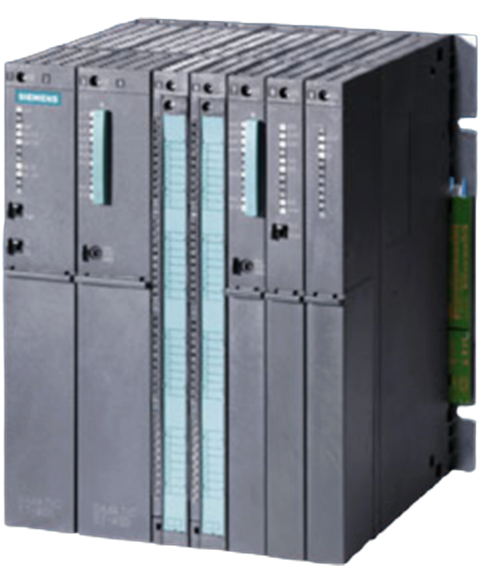

Siemens 6ES7416-2XK04-0AB0
RDDW40G-15 DC,DC converter, 18–75V input, ±15V output, 40W.
This Siemens 6ES7416-2XK04-0AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Modular plcs range and is referenced internally as PartLogic SKU PL26805620159.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$1,262.37
(inc. GST)
In Stock
| Product type designation | CPU 416-2 |
| Firmware version | V4.0 |
| Isochronous mode | Yes |
| Programming package | STEP 7 V5.2 SP1 HF3 or higher with HW update |
| CiR synchronization time, basic load | 100 ms |
| CiR synchronization time, time per I/O byte | 40 µs |
| Rated value (DC) | Power supply via system power supply |
| from backplane bus 5 V DC, typ. | 1 A |
| from backplane bus 5 V DC, max. | 1.2 A |
| from backplane bus 24 V DC, max. | Total current consumption of the components connected to the MPI/DP interfaces, but no more than 150 mA per interface |
| Power loss, typ. | 4.5 W |
| Type of memory | RAM |
| integrated (for program) | 1 400 kbyte |
| integrated (for data) | 1 400 kbyte |
| expandable | No |
| expandable FEPROM | Yes; with Memory Card (FLASH) |
| expandable FEPROM, max. | 64 Mbyte |
| integrated RAM, max. | 256 kbyte |
| expandable RAM | Yes; with Memory Card (RAM) |
| expandable RAM, max. | 16 Mbyte |
| present | Yes |
| with battery | Yes; all data |
| without battery | No |
| Backup current, typ. | 550 µA |
| Backup current, max. | 1 539 µA |
| Backup time, max. | 144 d |
| Feeding of external backup voltage to CPU | 5 V DC to 15 V DC |
| for bit operations, typ. | 0.04 µs |
| for word operations, typ. | 0.04 µs |
| for fixed point arithmetic, typ. | 0.04 µs |
| for floating point arithmetic, typ. | 0.12 µs |
| Number, max. | 4 095; DB 0 reserved2 048see instruction list |
| Size, max. | 64 kbyte16 kbyte |
| Number of time alarm OBs | 8 |
| Number of delay alarm OBs | 4 |
| Number of cyclic interrupt OBs | 9 |
| Number of process alarm OBs | 8 |
| Number of multicomputing OBs | 1 |
| per priority class | 24 |
| additional within an error OB | 2 |
| Number | 2 0488 |
| — adjustable | Yes |
| — preset | Z 0 to Z 7No times retentive120 |
| — lower limit | 010 ms |
| — upper limit | 9999 990 s |
| Type | SFB |
| Retentive data area (incl. timers, counters, flags), max. | Total working and load memory (with backup battery) |
| Retentivity available | Yes; MB 0 to MB 16383 |
| Retentivity preset | MB 0 to MB 15 |
| Number of clock memories | 8; 1 memory byte |
| adjustable, max. | 32 kbyte |
| preset | 16 kbyte |
| Inputs | 16 kbyte131 0728 192 |
| Outputs | 16 kbyte131 0728 192 |
| Inputs, adjustable | 16 kbyte |
| Outputs, adjustable | 16 kbyte |
| Inputs, default | 512 byte |
| Outputs, default | 512 byte |
| consistent data, max. | 244 byte |
| Access to consistent data in process image | Yes |
| Number of subprocess images, max. | 15 |
| — of which central | 131 0728 192 |
| Number of expansion units, max. | 21; of which 6 ER with K-bus |
| connectable OPs | 63 without message processing, 12 with message processing |
| Multicomputing | Yes; 4 CPUs max. (with UR1 or UR2) |
| Number of connectable IMs (total), max. | 6 |
| Number of connectable IM 460s, max. | 6 |
| Number of connectable IM 463s, max. | 4; IM 463-2 |
| integrated | 2 |
| via CP | 10; CP 443-5 Extended |
| via IM 467 | 4 |
| Mixed mode IM + CP permitted | No; IM 467 cannot be used jointly with CP 443-5 Ext. |
| Number of pluggable S5 modules (via adapter capsule in central device), max. | 6 |
| FM | Limited by number of slots and number of connections |
| CP, PtP | CP 440: Limited by number of slots; CP 441: limited by number of connections |
| CP, LAN | Limited by number of slots and number of connections |
| PROFIBUS and Ethernet CPs | 14; incl. CP 443-5 Ext. and IM 467 |
| required slots | 1 |
| Hardware clock (real-time) | Yes |
| retentive and synchronizable | Yes |
| Resolution | 1 ms |
| Deviation per day (buffered), max. | 1.7 s; Power on |
| Deviation per day (unbuffered), max. | 8.6 s; Power off |
| Number/Number range | 0 to 7 |
| Range of values | 0 to 32767 hours |
| Granularity | 1 h |
| retentive | Yes |
| supported | YesYes; in MPI mode via: SFC X_SEND, X_RCV, X_GET and X_PUT; in DP master mode via: SFC I_GET and I_PUTYes; Via FC AG_SEND and AG_RECV, max. via 10 CP 443-1 or 443-5Yes; Via CP and loadable FB |
| to MPI, master | Yes |
| on MPI, device | Yes |
| to DP, master | Yes |
| on DP, device | Yes |
| in AS, master | Yes |
| in AS, device | Yes |
| Interface type | MPI/PROFIBUS DPPROFIBUS DP |
| Isolated | Yes |
| RS 485 | Yes |
| Output current of the interface, max. | 150 mA |
| MPI | Yes |
| PROFIBUS DP master | Yes |
| PROFIBUS DP device | Yes |
| Number of connections | 44 |
| Transmission rate, max. | 12 Mbit/s |
| — PG/OP communication | Yes |
| — Routing | Yes |
| — Global data communication | Yes |
| — S7 basic communication | Yes |
| — S7 communication | Yes |
| Number of connections, max. | 32; If a diagnostics repeater is used on the line, the number of connection resources on the line is reduced by 1 |
| max. number of DP devices | 32125 |
| — Equidistance | Yes |
| — SYNC/FREEZE | Yes |
| — activation/deactivation of DP devices | Yes |
| — Direct data exchange (slave-to-slave communication) | Yes |
| — Inputs, max. | 2 kbyte244 byte8 kbyte |
| — Outputs, max. | 2 kbyte244 byte8 kbyte |
| — Slots, max. | 244 |
| — per slot, max. | 128 byte |
| GSD file | http://www.siemens.com/profibus-gsd |
| Address area, max. | 32 |
| User data per address area, max. | 32 byte |
| — of which consistent, max. | 32 byte |
| — Inputs | 244 byte |
| — Outputs | 244 byte |
| S7 routing | Yes |
| Equidistance | Yes |
| User data per isochronous slave, max. | 244 byte |
| shortest clock pulse | 1 ms |
| max. cycle | 32 ms |
| PG/OP communication | Yes |
| Number of connectable OPs with message processing | 12 |
| Number of connectable OPs without message processing | 63 |
| Number of GD loops, max. | 16 |
| Number of GD packets, transmitter, max. | 16 |
| Number of GD packets, receiver, max. | 32 |
| Size of GD packets, max. | 64 byte |
| Size of GD packet (of which consistent), max. | 1 variable |
| User data per job, max. | 76 byte64 kbyte8 kbyte |
| User data per job (of which consistent), max. | 1 variable462 byte; 1 variable240 byte |
| as server | Yes |
| as client | Yes |
| overall | 64 |
| — reserved for PG communication | 1 |
| — reserved for OP communication | 1 |
| Number of login stations for message functions, max. | 12 |
| Symbol-related messages | Yes |
| Program alarms | Yes |
| simultaneously active Alarm_S blocks, max. | 200; ALARM_S/SQ blocks or ALARM_D/DQ blocks |
| Alarm 8-blocks | Yes |
| Number of instances for alarm 8 and S7 communication blocks, max. | 1 800 |
| preset, max. | 600 |
| Process control messages | Yes |
| Number of archives that can log on simultaneously (SFB 37 AR_SEND) | 32 |
| overall, max. | 1 024 |
| in 100 ms grid, max. | 128 |
| in 500 ms grid, max. | 512 |
| in 1000 ms grid, max. | 1 024 |
| with 100 ms grid, max. | 1 |
| with 500, 1000 ms grid, max. | 10 |
| Status block | Yes |
| Single step | Yes |
| Number of breakpoints | 4 |
| Status/control variable | Yes |
| Variables | Inputs/outputs, memory bits, DBs, distributed I/Os, timers, counters |
| Number of variables, max. | 70512 |
| Forcing | Yes |
| Forcing, variables | Inputs/outputs, bit memories, distributed I/Os |
| Number of entries, max. | 3 200 |
| STEP 7 | Yes |
| Command set | see instruction list |
| Nesting levels | 8 |
| System functions (SFC) | see instruction list |
| System function blocks (SFB) | see instruction list |
| — LAD | Yes |
| — FBD | Yes |
| — STL | Yes |
| — SCL | Yes |
| — CFC | Yes |
| — GRAPH | Yes |
| — HiGraph® | Yes |
| — DPSYC_FR | 2 |
| — D_ACT_DP | 4 |
| — RD_REC | 8 |
| — WR_REC | 8 |
| — WR_PARM | 8 |
| — PARM_MOD | 1 |
| — WR_DPARM | 2 |
| — DPNRM_DG | 8 |
| — RDSYSST | 8; 1 to 8 |
| — DP_TOPOL | 1 |
| — RDREC | 8 |
| — WRREC | 8 |
| User program protection/password protection | Yes |
| Width | 25 mm |
| Height | 290 mm |
| Depth | 219 mm |
| Weight, approx. | 720 g |
