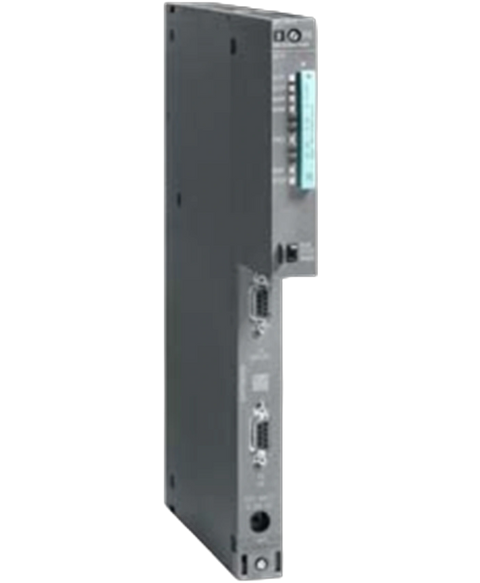

Siemens 6ES7414-2XK05-0AB0
Mean Well RPS-160-15 power supply, 15V, 10.3A, 159W.
This Siemens 6ES7414-2XK05-0AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Modular plcs range and is referenced internally as PartLogic SKU PL26801463476.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$1,064.99
(inc. GST)
In Stock
| Product type designation | CPU 414-2 |
| HW functional status | 03 |
| Firmware version | V5.3 |
| Isochronous mode | Yes; For PROFIBUS only |
| Programming package | STEP 7 V5.3 SP2 or higher with HW update |
| CiR synchronization time, basic load | 100 ms |
| CiR synchronization time, time per I/O byte | 15 µs |
| Rated value (DC) | Power supply via system power supply |
| from backplane bus 5 V DC, typ. | 0.9 A |
| from backplane bus 5 V DC, max. | 1.1 A |
| from backplane bus 24 V DC, max. | 300 mA; 150 mA per DP interface |
| from interface 5 V DC, max. | 90 mA; At each DP interface |
| Power loss, typ. | 4.5 W |
| Type of memory | RAM |
| integrated | 1 Mbyte20 |
| integrated (for program) | 0.5 Mbyte |
| integrated (for data) | 0.5 Mbyte |
| expandable | No |
| expandable FEPROM | Yes; with Memory Card (FLASH) |
| expandable FEPROM, max. | 64 Mbyte |
| integrated RAM, max. | 512 kbyte |
| expandable RAM | Yes; with Memory Card (RAM) |
| expandable RAM, max. | 64 Mbyte |
| present | Yes |
| with battery | Yes; all data |
| without battery | No |
| Backup current, typ. | 125 µA; up to 40 °C |
| Backup current, max. | 550 µA |
| Backup time, max. | See reference manual, module data, Chapter 3.3 |
| Feeding of external backup voltage to CPU | 5 V DC to 15 V DC |
| for bit operations, typ. | 45 ns |
| for word operations, typ. | 45 ns |
| for fixed point arithmetic, typ. | 45 ns |
| for floating point arithmetic, typ. | 135 ns |
| Number, max. | 6 000; Number range: 1 to 160003 000; Number range: 0 to 7999see instruction list |
| Size, max. | 64 kbyte8 kbyte; Size of bit memory address area |
| Number of free cycle OBs | 1; OB 1 |
| Number of time alarm OBs | 4; OB 10-13 |
| Number of delay alarm OBs | 4; OB 20-23 |
| Number of cyclic interrupt OBs | 4; OB 32-35 (shortest cycle that can be set = 500 µs) |
| Number of process alarm OBs | 4; OB 40-43 |
| Number of DPV1 alarm OBs | 3; OB 55-57 |
| Number of isochronous mode OBs | 3; OB 61-63 |
| Number of multicomputing OBs | 1; OB 60 |
| Number of background OBs | 1; OB 90 |
| Number of startup OBs | 3; OB 100-102 |
| Number of asynchronous error OBs | 9; OB 80-88 |
| Number of synchronous error OBs | 2; OB 121, 122 |
| per priority class | 24 |
| additional within an error OB | 1 |
| Number | 2 048Unlimited (limited only by RAM capacity)16 |
| — adjustable | Yes |
| — preset | Z 0 to Z 7No times retentive120 |
| — lower limit | 010 ms |
| — upper limit | 9999 990 s |
| Type | SFB |
| Retentive data area (incl. timers, counters, flags), max. | Total working and load memory (with backup battery) |
| Retentivity available | Yes |
| Retentivity preset | MB 0 to MB 15 |
| Number of clock memories | 8; in 1 memory byte |
| adjustable, max. | 16 kbyte |
| preset | 8 kbyte |
| Inputs | 8 kbyte65 5364 096 |
| Outputs | 8 kbyte65 5364 096 |
| Inputs, adjustable | 8 kbyte |
| Outputs, adjustable | 8 kbyte |
| Inputs, default | 256 byte |
| Outputs, default | 256 byte |
| consistent data, max. | 244 byte |
| Access to consistent data in process image | Yes |
| Number of subprocess images, max. | 15 |
| — of which central | 65 5364 096 |
| Integrated power supply | No |
| Number of expansion units, max. | 21 |
| connectable OPs | 31 |
| Multicomputing | Yes; 4 CPUs max. (with UR1 or UR2) |
| Number of connectable IMs (total), max. | 6 |
| Number of connectable IM 460s, max. | 6 |
| Number of connectable IM 463s, max. | 4; IM 463-2 |
| via CP | 10; CP 443-5 Extended4; No mixed operation of CP443-1 EX40 and CP443-1 EX 41/EX20/GX20, max. 4 in central controller |
| via IM 467 | 4 |
| Mixed mode IM + CP permitted | No; IM 467 not suitable for use with CP 443-5 Ext. and CP 443-1 EX4x, EX20, GX20 (in PROFINET IO mode) |
| via interface module | 0 |
| Number of pluggable S5 modules (via adapter capsule in central device), max. | 6 |
| FM | Limited by number of slots and number of connections |
| CP, PtP | CP 440: Limited by number of slots; CP 441: limited by number of connections |
| PROFIBUS and Ethernet CPs | 14; Of which 10 CPs max. or IMs as DP master, 4 PROFINET controller maximum |
| required slots | 1 |
| Hardware clock (real-time) | Yes |
| retentive and synchronizable | Yes |
| Resolution | 1 ms |
| Deviation per day (buffered), max. | 1.7 s; Power off |
| Deviation per day (unbuffered), max. | 8.6 s; For power On |
| Number/Number range | 0 to 15 |
| Range of values | SFCs 2, 3 and 4: 0 to 32767 hours SFC 101: 0 to 2^31 - 1 hours |
| Granularity | 1 h |
| retentive | Yes |
| supported | YesNoYes; Via FC AG_SEND and AG_RECV, max. via 10 CP 443-1 or 443-5Yes; Via CP and loadable FB |
| to MPI, master | Yes |
| on MPI, device | Yes |
| to DP, master | Yes |
| on DP, device | Yes |
| in AS, master | Yes |
| in AS, device | Yes |
| on Ethernet via NTP | No; Via CP |
| MPI, max. | 200 ms |
| Interfaces/bus type | 1 x MPI/PROFIBUS DP, 1 x PROFIBUS DP |
| Number of RS 485 interfaces | 2; Combined MPI / PROFIBUS DP and PROFIBUS DP |
| Optical interface | No |
| Interface type | MPI/PROFIBUS DPPROFIBUS DP |
| Isolated | Yes |
| RS 485 | Yes |
| Output current of the interface, max. | 150 mA |
| MPI | Yes |
| PROFIBUS DP master | Yes |
| PROFIBUS DP device | Yes |
| Number of connections | 32; If a diagnostics repeater is used on the line, the number of connection resources on the line is reduced by 116 |
| Transmission rate, max. | 12 Mbit/s |
| — PG/OP communication | YesYes; with interface active |
| — Routing | YesYes; S7 routingYes; with interface active |
| — Global data communication | YesNo |
| — S7 basic communication | YesNo |
| — S7 communication | Yes |
| — S7 communication, as client | Yes |
| — S7 communication, as server | Yes |
| Number of connections, max. | 16; If a diagnostics repeater is used on the line, the number of connection resources on the line is reduced by 116 |
| max. number of DP devices | 3296 |
| — Equidistance | Yes |
| — Isochronous mode | Yes |
| — SYNC/FREEZE | Yes |
| — activation/deactivation of DP devices | Yes |
| — Direct data exchange (slave-to-slave communication) | YesNo |
| — DPV1 | YesNo |
| — Inputs, max. | 2 kbyte244 byte6 kbyte |
| — Outputs, max. | 2 kbyte244 byte6 kbyte |
| — user data per DP device, max. | 244 byte |
| — Slots, max. | 244 |
| — per slot, max. | 128 byte |
| GSD file | http://support.automation.siemens.com/WW/view/en/113652 |
| automatic baud rate search | No |
| Address area, max. | 32; Virtual slots32 |
| User data per address area, max. | 32 byte |
| — of which consistent, max. | 32 byte |
| — Inputs | 244 byte |
| — Outputs | 244 byte |
| S7 routing | Yes |
| ISO-on-TCP (RFC1006) | Via CP 443-1 and loadable FB |
| — Data length, max. | 1 452 bytes via CP 443-1 Adv. |
| Equidistance | Yes |
| Number of DP masters with isochronous mode | 2 |
| User data per isochronous slave, max. | 244 byte |
| shortest clock pulse | 1 ms; 0.5 ms without use of SFC 126, 127 |
| max. cycle | 32 ms |
| PG/OP communication | Yes |
| Number of connectable OPs with message processing | 31; When using Alarm_S/SQ and Alarm_D/DQ |
| Number of connectable OPs without message processing | 31 |
| Data record routing | Yes |
| Number of GD loops, max. | 8 |
| Number of GD packets, transmitter, max. | 8 |
| Number of GD packets, receiver, max. | 16 |
| Size of GD packets, max. | 54 byte |
| Size of GD packet (of which consistent), max. | 1 variable |
| User data per job, max. | 76 byte64 kbyte8 kbyte |
| User data per job (of which consistent), max. | 1 variable462 byte; 1 variable240 byte |
| as server | Yes |
| as client | Yes |
| Number of simultaneous AG-SEND/AG-RECV orders per CPU, max. | 24/24 |
| overall | 32 |
| usable for PG communication | 31 |
| — reserved for PG communication | 1 |
| — adjustable for PG communication, max. | 0 |
| usable for OP communication | 31 |
| — reserved for OP communication | 1 |
| — adjustable for OP communication, max. | 0 |
| usable for S7 basic communication | 30 |
| — reserved for S7 basic communication | 0 |
| — adjustable for S7 basic communication, max. | 0 |
| usable for S7 communication | 30 |
| — reserved for S7 communication | 0 |
| — adjustable for S7 communication, max. | 0 |
| usable for routing | 15 |
| — reserved for routing | 0 |
| — adjustable for routing, max. | 0 |
| Number of login stations for message functions, max. | 31; Max. 31 with Alarm_S/SQ and Alarm_D/DQ (OPs); max. 8 with Alarm_8 and Alarm_P (e.g. WinCC) |
| Symbol-related messages | Yes |
| SCAN procedure | Yes |
| Program alarms | Yes |
| Process diagnostic messages | Yes |
| simultaneously active Alarm_S blocks, max. | 400; Simultaneously active alarm_S/SQ blocks or alarm_D/DQ blocks |
| Alarm 8-blocks | Yes |
| Number of instances for alarm 8 and S7 communication blocks, max. | 1 200 |
| preset, max. | 300 |
| Process control messages | Yes |
| Number of archives that can log on simultaneously (SFB 37 AR_SEND) | 16 |
| overall, max. | 512 |
| in 100 ms grid, max. | 128 |
| in 500 ms grid, max. | 256 |
| in 1000 ms grid, max. | 512 |
| with 100 ms grid, max. | 1 |
| with 500, 1000 ms grid, max. | 10 |
| Status block | Yes; Up to 2 simultaneously |
| Single step | Yes |
| Number of breakpoints | 4 |
| Status/control variable | Yes; Up to 16 variable tables |
| Variables | Inputs/outputs, memory bits, DBs, distributed I/Os, timers, counters |
| Number of variables, max. | 70; Status/control256 |
| Forcing | Yes |
| Forcing, variables | Inputs, outputs, bit memories, peripheral inputs, peripheral outputs |
| Number of entries, max. | 400 |
| can be read out | Yes |
| CE mark | Yes |
| CSA approval | Yes |
| UL approval | Yes |
| cULus | Yes |
| FM approval | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| EAC (formerly Gost-R) | Yes |
| ATEX | ATEX II 3G Ex nA IIC T4 Gc |
| min. | 0 °C |
| max. | 60 °C |
| STEP 7 | Yes |
| Command set | see instruction list |
| Nesting levels | 7 |
| System functions (SFC) | see instruction list |
| System function blocks (SFB) | see instruction list |
| — LAD | Yes |
| — FBD | Yes |
| — STL | Yes |
| — SCL | Yes |
| — CFC | Yes |
| — GRAPH | Yes |
| — HiGraph® | Yes |
| — DPSYC_FR | 2; SFC 11; per interface |
| — D_ACT_DP | 8; SFC 12; per interface |
| — RD_REC | 8; SFC 59; per interface |
| — WR_REC | 8; SFC 58; per interface |
| — WR_PARM | 8; SFC 55; per interface |
| — PARM_MOD | 1; SFC 57; per interface |
| — WR_DPARM | 2; SFC 56; per interface |
| — DPNRM_DG | 8; SFC 13; per interface |
| — RDSYSST | 8 |
| — DP_TOPOL | 1; SFC 103; per interface |
| — RDREC | 8; SFB 52; per interface, but not more than 32 across all external interfaces |
| — WRREC | 8; SFB 53; per interface, but not more than 32 across all external interfaces |
| User program protection/password protection | Yes |
| Width | 25 mm |
| Height | 290 mm |
| Depth | 219 mm |
| Weight, approx. | 700 g |
