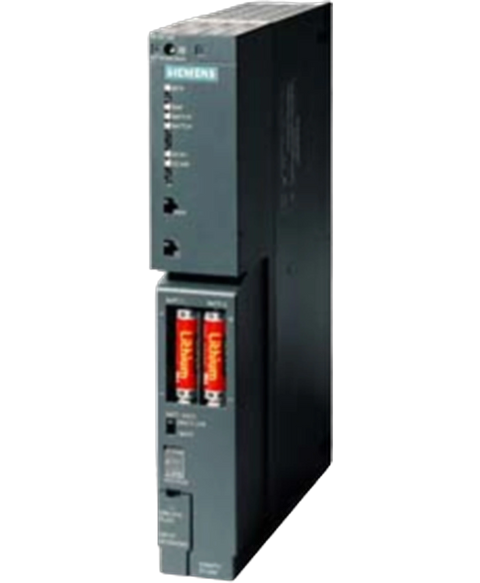

Siemens 6ES74070KR020AA0
SIMATIC S7-400, Power supply PS407; 10 A, wide range, UC 120,230V, 5 V DC,10 A, for redundant use
This Siemens 6ES74070KR020AA0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Power supplies range and is referenced internally as PartLogic SKU PL27101893908.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| 120 V DC | Yes |
| 230 V DC | Yes |
| 120 V AC | Yes |
| 230 V AC | Yes |
| Rated value 50 Hz | Yes |
| Rated value 60 Hz | Yes |
| permissible range, lower limit | 47 Hz |
| permissible range, upper limit | 63 Hz |
| Mains/voltage failure stored energy time | 20 ms |
| Mains buffering according to NAMUR recommendation | Yes |
| Rated value at 120 V DC | 1 A |
| Rated value at 230 V DC | 0.5 A |
| Rated value at 120 V AC | 0.9 A |
| Rated value at 230 V AC | 0.5 A |
| Inrush current, max. | 63 A; Full width at half maximum 1 ms |
| Leakage current, max. | 5 mA |
| Type of output voltage | DC |
| 5 V DC | Yes |
| 24 V DC | Yes |
| for backplane bus (5 V DC), max. | 10 A; no base load required |
| for backplane bus (24 V DC), max. | 1 A; idling-proof |
| Short-circuit protection | Yes |
| Active power input, typ. | 95 W |
| Power loss, typ. | 20 W |
| Backup battery (optional) | Yes; 1x lithium AA; 3.6 V / 2.2 Ah |
| required slots | 2 |
| primary/secondary | Yes |
| Overvoltage category | II |
| Compliance with line harmonic distortion acc. to IEC 61000-3-2, IEC 61000-3-3 | Yes |
| Equipment protection class | I, with protective conductor |
| FM approval | Yes; Ta: 0 °C to 70 °C T4 |
| BIS | Yes |
| min. | 0 °C |
| max. | 60 °C |
| Design of electrical connection | 3x 1.5 mm², solid or stranded wire with end sleeve, external diameter 3 mm to 9 mm |
| Width | 50 mm |
| Height | 290 mm |
| Depth | 217 mm |
| Weight, approx. | 1 200 g |
