Siemens 6ES7392-1AM00-0AA0

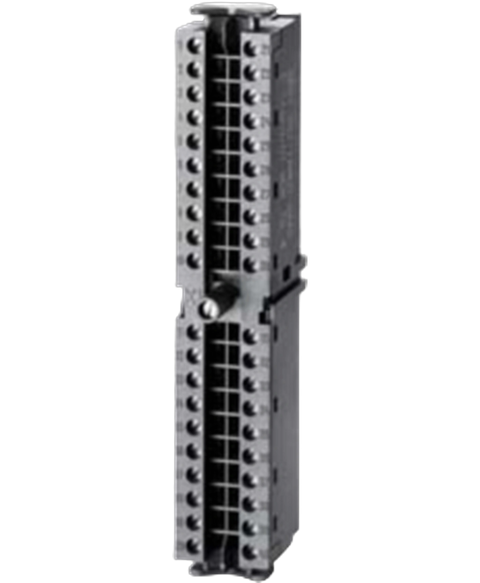

Siemens 6ES7392-1AM00-0AA0 40-Pin Screw Front Connector for S7-300 Compact CPU
This Siemens 6ES7392-1AM00-0AA0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Accessories range and is referenced internally as PartLogic SKU PL26801464758.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product type designation | Front connector |
| min. | 0 °C-40 °C |
| max. | 60 °C70 °C |
| belongs to product | S7-300 |
| Connection method | Screw terminals |
| Number of lines per connection | 1; Or 2 cables up to 0.75 mm² (total) in a shared end sleeve |
| — Connectable cable cross-sections for massive cables, min. | 0.14 mm²0.75 mm²2419 |
| — Connectable cable cross-sections for flexible cables without end sleeve, min. | 0.14 mm²24 |
| — Connectable cable cross-sections for flexible cables without end sleeve, max. | 0.75 mm²19 |
| — Connectable cable cross-sections for flexible cables with end sleeve, min. | 0.14 mm²24 |
| — Connectable cable cross-sections for flexible cables with end sleeve, max. | 0.75 mm²19 |
| — Stripped length of cables, min. | 6 mm |
| — Stripped length of cables, max. | 6 mm |
| — End sleeve acc. to DIN 46228 without plastic sleeve | Design A, 5 mm to 7 mm long |
| — End sleeve acc. to DIN 46228 with plastic sleeve | Design E, up to 6 mm long |
| — Tool | Screwdriver, conical design, 3 mm to 3.5 mm |
| — Tightening torque, min. | 0.4 N·m |
| — Tightening torque, max. | 0.7 N·m |
| Width | 21.6 mm |
| Height | 125 mm |
| Depth | 40.9 mm |
| Weight, approx. | 137 g |
