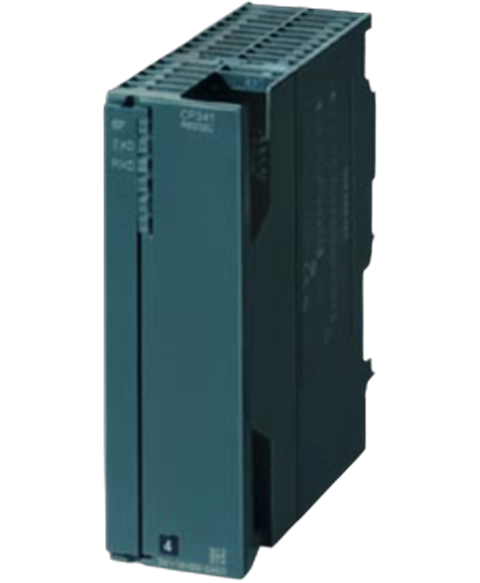

Siemens 6ES7341-1AH02-0AE0
Siemens CP 341 Communication Processor with RS232C Interface for S7-300 (6ES7341-1AH02-0AE0)
This Siemens 6ES7341-1AH02-0AE0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26842802368.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product type designation | CP 341 |
| 24 V DC | Yes |
| from supply voltage L+, max. | 100 mA |
| from backplane bus 5 V DC, max. | 70 mA |
| Power loss, typ. | 1.6 W |
| Power loss, max. | 2.4 W |
| Interfaces/bus type | RS 232C (V.24) |
| Number of interfaces | 1; Isolated |
| Transmission rate, min. | 0.3 kbit/s |
| Transmission rate, max. | 115.2 kbit/s |
| Cable length, max. | 15 m |
| supported printers | Serial printers |
| Connector type | 9-pin sub D connector |
| — 3964 (R) | Yes4 096 byte |
| — ASCII | Yes4 096 byte |
| — RK 512 | Yes4 096 byte |
| — with 3964 (R) protocol, max. | 115.2 kbit/s |
| — with ASCII protocol, max. | 115.2 kbit/s |
| — with printer driver, max. | 115.2 kbit/s |
| — with RK 512 protocol, max. | 115.2 kbit/s |
| min. | 0 °C-40 °C |
| max. | 60 °C70 °C |
| FB length in RAM, max. | 6 100 byte; Data communication, sending and receiving |
| Design of electrical connection for supply voltage | 3 screw-type terminals: L+, M, GND |
| Width | 40 mm |
| Height | 125 mm |
| Depth | 120 mm |
| Weight, approx. | 300 g |
