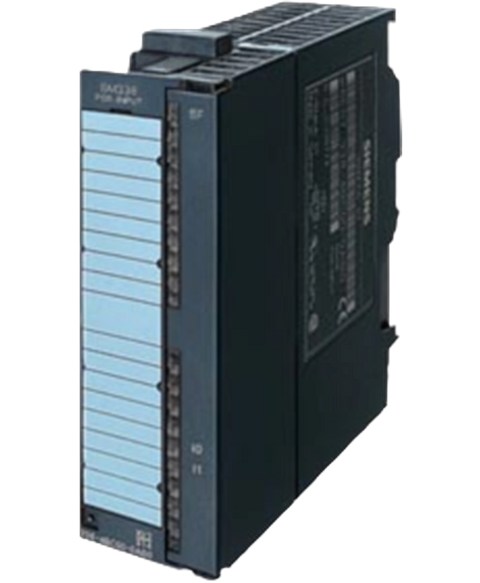

Siemens 6ES73384BC010AB0
SIMATIC S7-300, Signal module for 3 SSI encoders for reading in the position value with 2 FREEZE inputs, 1x 20-pole Supports isochronous mode
This Siemens 6ES73384BC010AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL27101818729.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| from load voltage L+ (without load), max. | 100 mA |
| from backplane bus 5 V DC, max. | 160 mA |
| 24 V | Yes; L+ (-0.8 V) |
| Output current, max. | 900 mA |
| Power loss, typ. | 3 W |
| for signal "0" | -3 to +5V |
| for signal "1" | 11 to 30.2 V |
| for signal "0", max. (permissible quiescent current) | 2 mA |
| for signal "1", typ. | 9 mA |
| — at "0" to "1", min. | 300 µs |
| shielded, max. | 600 m |
| Number of connectable encoders, max. | 3 |
| Absolute encoder (SSI) | Yes |
| 2-wire sensor | Yes |
| Cable length, shielded, max. | 320 m; 320 m at 125 kHz; 160 m at 250 kHz; 60 m at 500 kHz; 20 m at 1 MHz |
| Diagnostic alarm | Yes |
| required front connector | 20-pin |
| Width | 40 mm |
| Height | 125 mm |
| Depth | 120 mm |
| Weight, approx. | 235 g |
