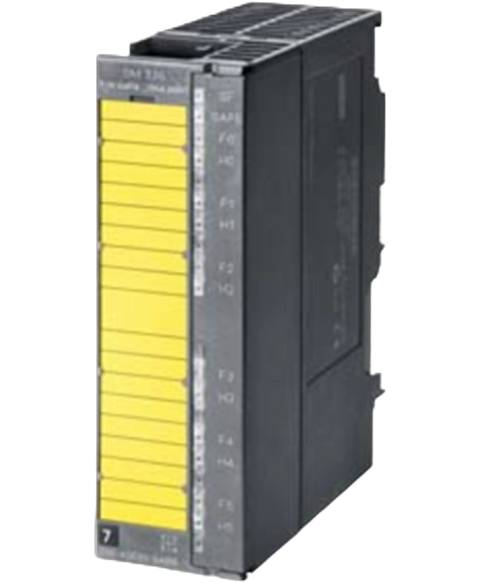

Siemens 6ES73364GE000AB0
SIMATIC S7, Analog input SM 336, 6 AI; 15 bit; fail-safe analog inputs for SIMATIC Safety, with HART support, up to Category 4 (EN 954-1), SIL3 (IEC61508),PLE (ISO13849), 1x 20-pole
This Siemens 6ES73364GE000AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL27101810021.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Rated value (DC) | 24 V |
| Reverse polarity protection | Yes |
| From power supply L+, typ. | 150 mA |
| from backplane bus 5 V DC, max. | 90 mA |
| Power loss, typ. | 4.5 W |
| Number of analog inputs | 6 |
| permissible input current for current input (destruction limit), max. | 40 mA |
| Voltage | No |
| Current | Yes |
| Thermocouple | No |
| Resistance thermometer | No |
| Resistance | No |
| 0 to 20 mA | Yes |
| — Input resistance (0 to 20 mA) | 150 Ω; typ. 150 ohms max. 175 ohms |
| 4 mA to 20 mA | Yes |
| — Input resistance (4 mA to 20 mA) | 150 Ω; typ. 150 ohms max. 175 ohms |
| shielded, max. | 1 000 m |
| Resolution with overrange (bit including sign), max. | 16 bit; 15 bit + sign |
| Integration time (ms) | 20 ms @ 50 Hz, 16.7 ms @ 60 Hz |
| Interference voltage suppression for interference frequency f1 in Hz | f=n x (f1 ±0.5 %) |
| for current measurement as 2-wire transducer | Yes |
| for current measurement as 4-wire transducer | Yes |
| Current, relative to input range, (+/-) | 0.2 %; 40 µA0.1 % |
| Diagnostics function | Yes |
| Diagnostic alarm | Yes |
| Diagnostic information readable | Yes |
| Fail-safe operation | Yes |
| Group error SF (red) | Yes |
| Encoder supply Vs (green) | No |
| between the channels | Yes |
| between the channels and backplane bus | Yes |
| between the channels and the power supply of the electronics | Yes |
| Isolation tested with | 370V for 1 min |
| acc. to EN 954 | 4 |
| Performance level according to ISO 13849-1 | e |
| SIL acc. to IEC 61508 | SIL 3 |
| required front connector | 20-pin |
| Width | 40 mm |
| Height | 125 mm |
| Depth | 120 mm |
| Weight, approx. | 350 g |
