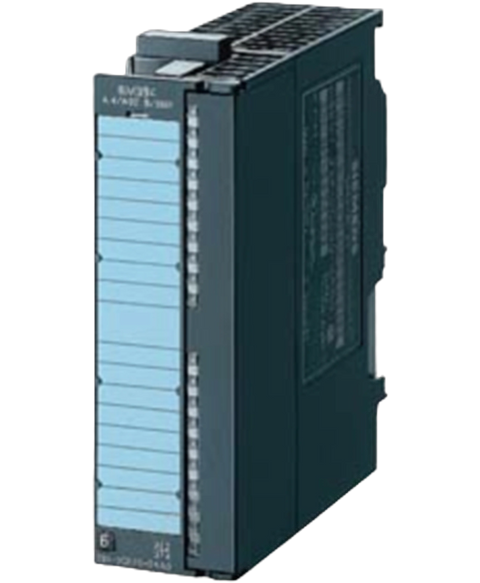

Siemens 6ES7334-0CE01-0AA0
The Siemens 6ES7334-0CE01-0AA0 is an analog module designed to operate at a rated voltage of 24 V DC. Featuring four analog inputs, this unit manages a permissible input voltage of up to 20 V and supports a power loss of 3 W.
This Siemens 6ES7334-0CE01-0AA0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26801407451.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Rated value (DC) | 24 V |
| from supply and load voltage L+ (without load), max. | 110 mA |
| from backplane bus 5 V DC, max. | 55 mA |
| Power loss, typ. | 3 W |
| Number of analog inputs | 4 |
| For voltage measurement | 4 |
| permissible input voltage for voltage input (destruction limit), max. | 20 V |
| permissible input current for current input (destruction limit), max. | 40 mA |
| Cycle time (all channels) max. | 5 ms |
| Voltage | Yes |
| Current | Yes |
| Thermocouple | No |
| Resistance thermometer | No |
| Resistance | No |
| 0 to +10 V | Yes |
| — Input resistance (0 to 10 V) | 100 kΩ |
| 0 to 20 mA | Yes |
| — Input resistance (0 to 20 mA) | 50 Ω |
| shielded, max. | 200 m |
| Number of analog outputs | 2 |
| Voltage output, short-circuit protection | Yes |
| Voltage output, short-circuit current, max. | 11 mA |
| Current output, no-load voltage, max. | 15 V |
| 0 to 10 V | Yes |
| with voltage outputs, min. | 5 kΩ |
| with voltage outputs, capacitive load, max. | 1 µF |
| with current outputs, max. | 300 Ω |
| with current outputs, inductive load, max. | 1 mH |
| Resolution with overrange (bit including sign), max. | 8 bit |
| Integration time, parameterizable | No |
| Conversion time (per channel) | 500 µs |
| for resistive load | 0.3 ms |
| for capacitive load | 3 ms |
| for inductive load | 0.3 ms |
| for voltage measurement | Yes |
| for current measurement as 2-wire transducer | No |
| for current measurement as 4-wire transducer | Yes |
| Voltage, relative to input range, (+/-) | 0.9 %0.7 % |
| Current, relative to input range, (+/-) | 0.8 %0.6 % |
| Voltage, relative to output range, (+/-) | 0.6 %0.5 % |
| Current, relative to output range, (+/-) | 1 %0.5 % |
| Alarms | No |
| Diagnostics function | No |
| between the channels and backplane bus | No |
| between the channels | No |
| between the channels and the power supply of the electronics | Yes |
| Isolation tested with | 500 V DC |
| required front connector | 20-pin |
| Width | 40 mm |
| Height | 125 mm |
| Depth | 117 mm |
| Weight, approx. | 285 g |
