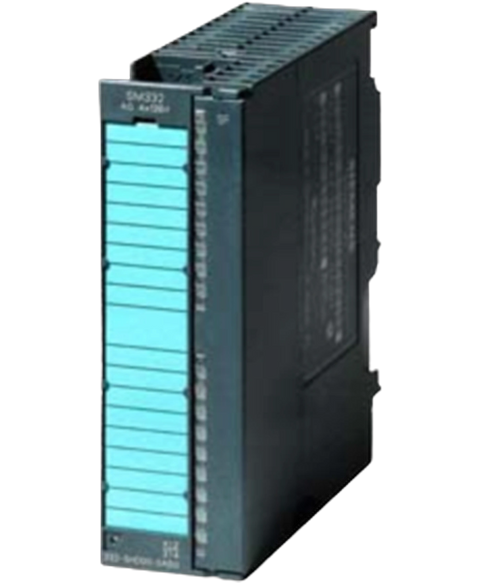

Siemens 6ES73328TF010AB0
SIMATIC DP, HART analog output, SM 332, 8 AO, 0,4 - 20 mA HART, for ET200M with IM153-2, IM 153-2, 20-pole Functions: FW update, HART auxiliary variables, redundancy, local diagnostic buffer with time stamping
This Siemens 6ES73328TF010AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL27101793202.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Isochronous mode | No |
| Rated value (DC) | 24 V |
| Reverse polarity protection | Yes |
| from load voltage L+ (without load), max. | 350 mA |
| from backplane bus 5 V DC, max. | 110 mA |
| Power loss, typ. | 6 W |
| Number of analog outputs | 8 |
| Current output, no-load voltage, max. | 24 V |
| 0 to 20 mA | Yes |
| -20 mA to +20 mA | No |
| 4 mA to 20 mA | Yes |
| for current output two-wire connection | Yes |
| with current outputs, max. | 750 Ω |
| with current outputs, inductive load, max. | 10 mH |
| Voltages at the outputs towards MANA | +60/-0.5 V |
| shielded, max. | 800 m |
| Resolution with overrange (bit including sign), max. | 16 bit |
| Basic execution time of the module (all channels released) | 10 ms; 10 ms in AO mode 50 ms in HART-AO mode |
| for resistive load | 0.1 ms |
| for inductive load | 0.5 ms |
| Current, relative to output range, (+/-) | 0.2 %0.1 % |
| Diagnostics function | Yes |
| Substitute values connectable | Yes |
| Diagnostic alarm | Yes |
| Group error SF (red) | Yes |
| between the channels | No |
| between the channels and backplane bus | Yes |
| Between the channels and load voltage L+ | Yes |
| Isolation tested with | 500 V DC |
| IP degree of protection | IP20 |
| required front connector | 20-pin |
| Width | 40 mm |
| Height | 125 mm |
| Depth | 117 mm |
| Weight, approx. | 220 g |
