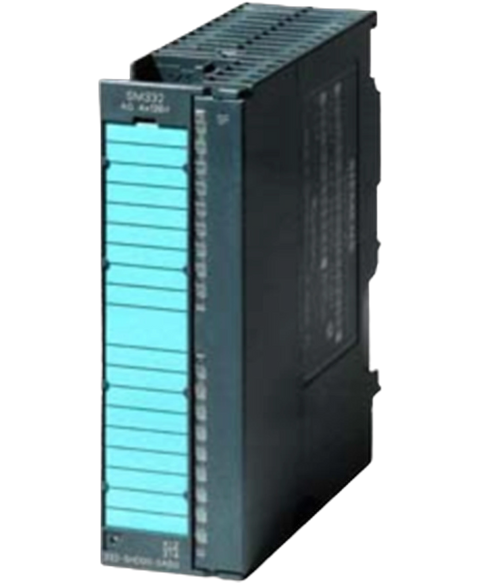

Siemens 6ES7332-5HB01-0AB0
The Siemens 6ES7332-5HB01-0AB0 is a specialized analog output module tailored for control systems. With two outputs configured in a single group, this module facilitates both voltage and current outputs, enabling versatile applications in various setups.
This Siemens 6ES7332-5HB01-0AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26801728654.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Rated value (DC) | 24 V |
| Reverse polarity protection | Yes |
| from load voltage L+ (without load), max. | 135 mA |
| from backplane bus 5 V DC, max. | 60 mA |
| Power loss, typ. | 3 W |
| Number of analog outputs | 2 |
| Voltage output, short-circuit protection | Yes |
| Voltage output, short-circuit current, max. | 25 mA |
| Current output, no-load voltage, max. | 18 V |
| 0 to 10 V | Yes |
| 1 V to 5 V | Yes |
| -10 V to +10 V | Yes |
| 0 to 20 mA | Yes |
| -20 mA to +20 mA | Yes |
| 4 mA to 20 mA | Yes |
| with voltage outputs, min. | 1 kΩ |
| with voltage outputs, capacitive load, max. | 1 µF |
| with current outputs, max. | 500 Ω |
| with current outputs, inductive load, max. | 10 mH |
| shielded, max. | 200 m |
| Resolution with overrange (bit including sign), max. | 12 bit; ±10 V, ±20 mA, 4 mA to 20 mA, 1 V to 5 V: 11 bit + sign; 0 V to 10 V, 0 mA to 20 mA: 12 bit |
| Conversion time (per channel) | 0.8 ms |
| for resistive load | 0.2 ms |
| for capacitive load | 3.3 ms |
| for inductive load | 0.5 ms; 0.5 ms (1 mH); 3.3 ms (10 mH) |
| Voltage, relative to output range, (+/-) | 0.5 %0.4 % |
| Current, relative to output range, (+/-) | 0.6 %0.5 % |
| Diagnostics function | Yes; Parameterizable |
| Diagnostic alarm | Yes; Parameterizable |
| Diagnostic information readable | Yes |
| Group error SF (red) | Yes |
| between the channels | No |
| between the channels and backplane bus | Yes |
| Between the channels and load voltage L+ | Yes |
| between the channels and the power supply of the electronics | Yes |
| Isolation tested with | 500 V DC |
| required front connector | 20-pin |
| Width | 40 mm |
| Height | 125 mm |
| Depth | 117 mm |
| Weight, approx. | 220 g |
