Siemens 6ES73317NF000AB0

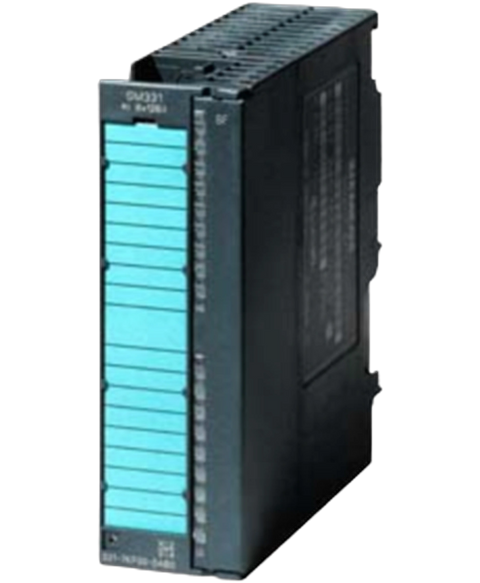

SIMATIC S7-300, Analog input SM 331, isolated, 8 AI; +,-5,10V, 1-5 V, +,-20 mA, 0,4 to 20 mA, 16 bit (55ms), Single rooting (50 V COM.), 1x 40-pole
This Siemens 6ES73317NF000AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26989921074.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| from backplane bus 5 V DC, max. | 130 mA |
| Power loss, typ. | 0.6 W |
| Number of analog inputs | 8 |
| permissible input voltage for voltage input (destruction limit), max. | 50 V; Permanent |
| permissible input current for current input (destruction limit), max. | 32 mA |
| Voltage | Yes |
| Current | Yes |
| Thermocouple | No |
| Resistance thermometer | No |
| Resistance | No |
| 0 to +10 V | No |
| 1 V to 5 V | Yes |
| — Input resistance (1 V to 5 V) | 2 MΩ |
| 1 V to 10 V | No |
| -1 V to +1 V | No |
| -10 V to +10 V | Yes |
| — Input resistance (-10 V to +10 V) | 2 MΩ |
| -2.5 V to +2.5 V | No |
| -250 mV to +250 mV | No |
| -5 V to +5 V | Yes |
| — Input resistance (-5 V to +5 V) | 2 MΩ |
| -50 mV to +50 mV | No |
| -500 mV to +500 mV | No |
| -80 mV to +80 mV | No |
| 0 to 20 mA | Yes |
| — Input resistance (0 to 20 mA) | 250 Ω |
| -10 mA to +10 mA | No |
| -20 mA to +20 mA | Yes |
| — Input resistance (-20 mA to +20 mA) | 250 Ω |
| -3.2 mA to +3.2 mA | No |
| 4 mA to 20 mA | Yes |
| — Input resistance (4 mA to 20 mA) | 250 Ω |
| Type B | No |
| Type C | No |
| Type E | No |
| Type J | No |
| Type K | No |
| Type L | No |
| Type N | No |
| Type R | No |
| Type S | No |
| Type T | No |
| Type U | No |
| Type TXK/TXK(L) to GOST | No |
| Cu 10 | No |
| Ni 100 | No |
| Ni 1000 | No |
| LG-Ni 1000 | No |
| Ni 120 | No |
| Ni 200 | No |
| Ni 500 | No |
| Pt 100 | No |
| Pt 1000 | No |
| Pt 200 | No |
| Pt 500 | No |
| 0 to 150 ohms | No |
| 0 to 300 ohms | No |
| 0 to 600 ohms | No |
| 0 to 6000 ohms | No |
| shielded, max. | 200 m |
| Resolution with overrange (bit including sign), max. | 16 bit; Unipolar: 15/15/15/15 bit; bipolar: 15 bit + sign/15 bit + sign/15 bit + sign/15 bit + sign |
| Integration time, parameterizable | Yes; 10/ 16.67/ 20/ 100 ms |
| Interference voltage suppression for interference frequency f1 in Hz | 400 / 60 / 50 / 10 Hz |
| for voltage measurement | Yes |
| for current measurement as 2-wire transducer | Yes; with external transmitter; possible with separate supply for transmitter |
| for current measurement as 4-wire transducer | Yes |
| Voltage, relative to input range, (+/-) | 0.1 %; At Ucm = 0 V or ±0.7 % at Ucm = 50 V0.05 % |
| Current, relative to input range, (+/-) | 0.3 %; At Ucm = 0 V or ±0.9 % at Ucm = 50 V0.05 % |
| Diagnostics function | Yes; Parameterizable |
| Diagnostic alarm | Yes; Parameterizable |
| Limit value alarm | Yes; Parameterizable, channels 0 and 2 |
| Diagnostic information readable | Yes |
| Group error SF (red) | Yes |
| between the channels | No |
| between the channels, in groups of | 2 |
| between the channels and backplane bus | Yes |
| Isolation tested with | 500 V DC |
| required front connector | 40-pin |
| Width | 40 mm |
| Height | 125 mm |
| Depth | 117 mm |
| Weight, approx. | 272 g |
