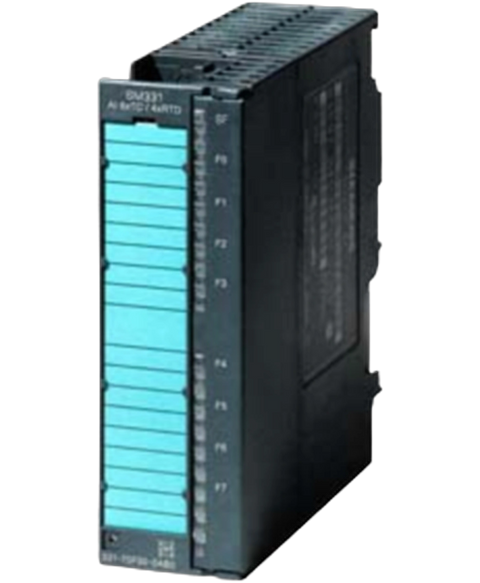

Siemens 6ES7331-7SF00-0AB0
Mean Well RSD-200C-12 DC,DC converter, 12V, 200W.
This Siemens 6ES7331-7SF00-0AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26801468277.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Rated value (DC) | 24 V |
| from backplane bus 5 V DC, max. | 120 mA |
| Power loss, typ. | 0.6 W |
| Number of analog inputs | 8; 8x thermocouples; 4x RTD thermoresistors |
| Voltage | Yes |
| Current | No |
| Thermocouple | Yes |
| Resistance thermometer | Yes |
| Resistance | Yes |
| -1 V to +1 V | Yes |
| — Input resistance (-1 V to +1 V) | 10 MΩ |
| -25 mV to +25 mV | Yes |
| — Input resistance (-25 mV to +25 mV) | 10 MΩ |
| -250 mV to +250 mV | Yes |
| — Input resistance (-250 mV to +250 mV) | 10 MΩ |
| -50 mV to +50 mV | Yes |
| — Input resistance (-50 mV to +50 mV) | 10 MΩ |
| -500 mV to +500 mV | Yes |
| — Input resistance (-500 mV to +500 mV) | 10 MΩ |
| -80 mV to +80 mV | Yes |
| — Input resistance (-80 mV to +80 mV) | 10 MΩ |
| Type B | Yes |
| — Input resistance (Type B) | 10 MΩ |
| Type E | Yes |
| — Input resistance (Type E) | 10 MΩ |
| Type J | Yes |
| — Input resistance (type J) | 10 MΩ |
| Type K | Yes |
| — Input resistance (Type K) | 10 MΩ |
| Type L | Yes |
| — Input resistance (Type L) | 10 MΩ |
| Type N | Yes |
| — Input resistance (Type N) | 10 MΩ |
| Type R | Yes |
| — Input resistance (Type R) | 10 MΩ |
| Type S | Yes |
| — Input resistance (Type S) | 10 MΩ |
| Type T | Yes |
| — Input resistance (Type T) | 10 MΩ |
| Type U | Yes |
| — Input resistance (Type U) | 10 MΩ |
| Ni 100 | Yes |
| — Input resistance (Ni 100) | 10 MΩ |
| Pt 100 | Yes |
| — Input resistance (Pt 100) | 10 MΩ |
| Pt 200 | Yes |
| — Input resistance (Pt 200) | 10 MΩ |
| shielded, max. | 200 m; TC: 50 m |
| Resolution with overrange (bit including sign), max. | 16 bit; 10 bit to 15 bit + sign |
| Integration time, parameterizable | Yes; 2.5 to 100 ms |
| Interference voltage suppression for interference frequency f1 in Hz | 10 to 400 Hz |
| for current measurement as 2-wire transducer | Yes |
| for current measurement as 4-wire transducer | Yes |
| Resistance thermometer, relative to input range, (+/-) | 0.04 %; 0.09 to 0.04%0.008 %; 0.018 ... 0.008% |
| Diagnostics function | Yes |
| Diagnostic information readable | Yes |
| Overrange | Yes |
| Wire-break in signal transmitter cable | Yes |
| Short-circuit of the signal encoder cable | Yes |
| Group error SF (red) | Yes |
| Channel fault indicator F (red) | Yes |
| Module for Ex(i) protection | Yes |
| Uo (no-load voltage), max. | 5.9 V |
| Io (short-circuit current), max. | 28.8 mA |
| Po (power output), max. | 41.4 mW |
| Co (permissible external capacity), max. | 43 µF |
| Lo (permissible external inductivity), max. | 40 mH |
| between the channels | No |
| between the channels and backplane bus | Yes |
| ATEX marking | ATEX II 3 G (2) GD Ex nA [ib Gb] [ib IIIC Db] IIC T4 Gc |
| FM marking | Class I, Division 2, Group A, B, C, D T4 |
| Test number PTB | Ex-96.D.2108X |
| max. | 60 °C |
| required front connector | 20-pin |
| Weight, approx. | 210 g |
