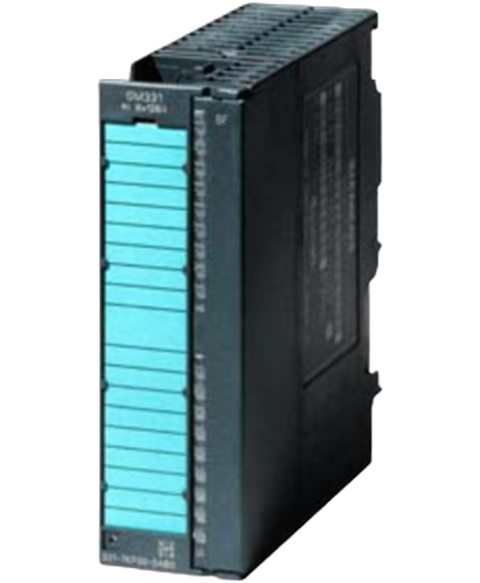

Siemens 6ES7331-7PF01-0AB0
Siemens 6ES73317PF010AB0 S7-300 analogue input module, 8AI.
This Siemens 6ES7331-7PF01-0AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26801430024.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Rated value (DC) | 24 V |
| Reverse polarity protection | Yes |
| from load voltage L+ (without load), max. | 240 mA |
| from backplane bus 5 V DC, max. | 100 mA |
| Power loss, typ. | 4.6 W |
| Number of analog inputs | 8 |
| For resistance measurement | 8 |
| permissible input voltage for voltage input (destruction limit), max. | 75 V; 35 V continuous, 75 V for max. 1 s (mark to space ratio 1:20) |
| Voltage | No |
| Current | No |
| Thermocouple | No |
| Resistance thermometer | Yes |
| Resistance | Yes |
| 0 to +10 V | No |
| 1 V to 5 V | No |
| 1 V to 10 V | No |
| -1 V to +1 V | No |
| -10 V to +10 V | No |
| -2.5 V to +2.5 V | No |
| -250 mV to +250 mV | No |
| -5 V to +5 V | No |
| -50 mV to +50 mV | No |
| -500 mV to +500 mV | No |
| -80 mV to +80 mV | No |
| 0 to 20 mA | No |
| -10 mA to +10 mA | No |
| -20 mA to +20 mA | No |
| -3.2 mA to +3.2 mA | No |
| 4 mA to 20 mA | No |
| Type B | No |
| Type C | No |
| Type E | No |
| Type J | No |
| Type K | No |
| Type L | No |
| Type N | No |
| Type R | No |
| Type S | No |
| Type T | No |
| Type U | No |
| Type TXK/TXK(L) to GOST | No |
| Cu 10 | Yes |
| Ni 100 | Yes |
| Ni 1000 | Yes |
| LG-Ni 1000 | Yes |
| Ni 120 | Yes |
| Ni 200 | Yes |
| Ni 500 | Yes |
| Pt 100 | Yes |
| Pt 1000 | Yes |
| Pt 200 | Yes |
| Pt 500 | Yes |
| 0 to 150 ohms | Yes |
| 0 to 300 ohms | Yes |
| 0 to 600 ohms | Yes |
| parameterizable | Yes |
| — for resistance thermometer | Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni200, Ni500, Ni1000, Cu10; (standard/climate) |
| shielded, max. | 200 m |
| Resolution with overrange (bit including sign), max. | 16 bit; Two's complement |
| Integration time, parameterizable | Yes |
| Basic conversion time (ms) | up to 4 channels: 10 ms per module, over 5 channels: 190 ms per module, 8 channels: 80 ms |
| Interference voltage suppression for interference frequency f1 in Hz | 400 / 60 / 50 Hz |
| for resistance measurement with two-wire connection | Yes; without resistance correction |
| for resistance measurement with three-wire connection | Yes |
| for resistance measurement with four-wire connection | Yes |
| Resistance, relative to input range, (+/-) | 0.1 %0.05 % |
| Resistance thermometer, relative to input range, (+/-) | ±1 K±0.5 K |
| Diagnostics function | Yes; Parameterizable |
| Diagnostic alarm | Yes; Parameterizable per group |
| Limit value alarm | Yes; Parameterizable |
| Hardware interrupt | Yes; Parameterizable, channels 0 to 7 |
| Diagnostic information readable | Yes |
| Group error SF (red) | Yes |
| between the channels | Yes |
| between the channels, in groups of | 2 |
| between the channels and backplane bus | Yes |
| between the channels and the power supply of the electronics | Yes |
| Isolation tested with | 500 V DC |
| required front connector | 40-pin |
| Width | 40 mm |
| Height | 125 mm |
| Depth | 120 mm |
| Weight, approx. | 272 g |
