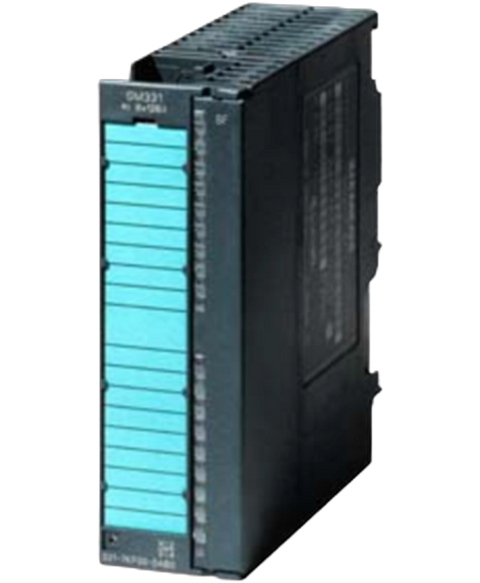

Siemens 6ES7331-7NF10-0AB0
Mean Well RSD-300B-24 DC,DC converter, 24V, 300W.
This Siemens 6ES7331-7NF10-0AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26805569315.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Rated value (DC) | 24 V |
| Reverse polarity protection | Yes |
| from load voltage L+ (without load), max. | 200 mA |
| from backplane bus 5 V DC, max. | 100 mA |
| Power loss, typ. | 3 W |
| Number of analog inputs | 8 |
| permissible input voltage for voltage input (destruction limit), max. | 75 V; 35 V continuous, 75 V for max. 1 s (mark to space ratio 1:20) |
| permissible input current for current input (destruction limit), max. | 40 mA |
| Voltage | Yes |
| Current | Yes |
| Thermocouple | No |
| Resistance thermometer | No |
| Resistance | No |
| 0 to +10 V | No |
| 1 V to 5 V | Yes |
| — Input resistance (1 V to 5 V) | 10 MΩ |
| 1 V to 10 V | No |
| -1 V to +1 V | No |
| -10 V to +10 V | Yes |
| — Input resistance (-10 V to +10 V) | 10 MΩ |
| -2.5 V to +2.5 V | No |
| -250 mV to +250 mV | No |
| -5 V to +5 V | Yes |
| — Input resistance (-5 V to +5 V) | 10 MΩ |
| -50 mV to +50 mV | No |
| -500 mV to +500 mV | No |
| -80 mV to +80 mV | No |
| 0 to 20 mA | Yes |
| — Input resistance (0 to 20 mA) | 250 Ω |
| -10 mA to +10 mA | No |
| -20 mA to +20 mA | Yes |
| — Input resistance (-20 mA to +20 mA) | 250 Ω |
| -3.2 mA to +3.2 mA | No |
| 4 mA to 20 mA | Yes |
| — Input resistance (4 mA to 20 mA) | 250 Ω |
| Type B | No |
| Type C | No |
| Type E | No |
| Type J | No |
| Type K | No |
| Type L | No |
| Type N | No |
| Type R | No |
| Type S | No |
| Type T | No |
| Type U | No |
| Type TXK/TXK(L) to GOST | No |
| Cu 10 | No |
| Ni 100 | No |
| Ni 1000 | No |
| LG-Ni 1000 | No |
| Ni 120 | No |
| Ni 200 | No |
| Ni 500 | No |
| Pt 100 | No |
| Pt 1000 | No |
| Pt 200 | No |
| Pt 500 | No |
| 0 to 150 ohms | No |
| 0 to 300 ohms | No |
| 0 to 600 ohms | No |
| 0 to 6000 ohms | No |
| shielded, max. | 200 m |
| Resolution with overrange (bit including sign), max. | 16 bit; Unipolar: 15/15/15/15 bit; bipolar: 15 bit + sign/15 bit + sign/15 bit + sign/15 bit + sign |
| Integration time, parameterizable | Yes; 23 / 72 / 83 / 95 ms |
| Basic conversion time (ms) | 10 ms (4-channel mode); 95/83/72/23 ms (8-channel mode) |
| Interference voltage suppression for interference frequency f1 in Hz | 400 / 60 / 50 Hz, combinations of 400, 60, 50 Hz |
| for voltage measurement | Yes |
| for current measurement as 2-wire transducer | Yes; with external transmitter, current supply; possible with separate supply for transmitter |
| for current measurement as 4-wire transducer | Yes |
| Voltage, relative to input range, (+/-) | 0.1 %0.05 % |
| Current, relative to input range, (+/-) | 0.1 %0.05 % |
| Diagnostics function | Yes; Parameterizable |
| Diagnostic alarm | Yes; Parameterizable |
| Limit value alarm | Yes; Parameterizable all channels (end of cycle interrupt is also supported across modules) |
| Hardware interrupt | Yes; Parameterizable, channels 0 to 7 (on exceeding limit value), at end of cycle |
| Diagnostic information readable | Yes |
| Group error SF (red) | Yes |
| between the channels | Yes |
| between the channels, in groups of | 2 |
| between the channels and backplane bus | Yes |
| between the channels and the power supply of the electronics | Yes |
| Isolation tested with | 500 V AC |
| required front connector | 40-pin |
| Width | 40 mm |
| Height | 125 mm |
| Depth | 117 mm |
| Weight, approx. | 272 g |
