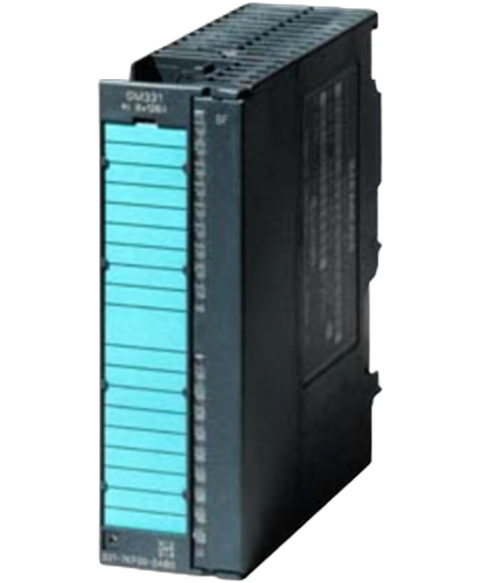

Product image for illustrative purposes only. Actual item may vary.
Siemens 6ES7331-7KF02-0AB0
The Siemens 6ES7331-7KF02-0AB0 input module is designed for seamless integration within the SIMATIC system. Known for its compatibility with various signal types, this module efficiently handles input voltages at 24 V DC, performing reliably under diverse conditions.
This Siemens 6ES7331-7KF02-0AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26801444175.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$261.27
(inc. GST)
In Stock
| Rated value (DC) | 24 V |
| Reverse polarity protection | Yes |
| from load voltage L+ (without load), max. | 30 mA |
| from backplane bus 5 V DC, max. | 50 mA |
| Power loss, typ. | 1 W |
| Number of analog inputs | 8 |
| For resistance measurement | 4 |
| permissible input voltage for voltage input (destruction limit), max. | 20 V; continuous; 75 V for max. 1 s (mark to space ratio 1:20) |
| permissible input current for current input (destruction limit), max. | 40 mA |
| Constant measurement current for resistance-type transmitter, typ. | 1.67 mA |
| Voltage | Yes |
| Current | Yes |
| Thermocouple | Yes |
| Resistance thermometer | Yes |
| Resistance | Yes |
| 0 to +10 V | No |
| 1 V to 5 V | Yes |
| — Input resistance (1 V to 5 V) | 100 kΩ |
| 1 V to 10 V | No |
| -1 V to +1 V | Yes |
| — Input resistance (-1 V to +1 V) | 10 MΩ |
| -10 V to +10 V | Yes |
| — Input resistance (-10 V to +10 V) | 100 kΩ |
| -2.5 V to +2.5 V | Yes |
| — Input resistance (-2.5 V to +2.5 V) | 100 kΩ |
| -250 mV to +250 mV | Yes |
| — Input resistance (-250 mV to +250 mV) | 10 MΩ |
| -5 V to +5 V | Yes |
| — Input resistance (-5 V to +5 V) | 100 kΩ |
| -50 mV to +50 mV | No |
| -500 mV to +500 mV | Yes |
| — Input resistance (-500 mV to +500 mV) | 10 MΩ |
| -80 mV to +80 mV | Yes |
| — Input resistance (-80 mV to +80 mV) | 10 MΩ |
| 0 to 20 mA | Yes |
| — Input resistance (0 to 20 mA) | 25 Ω |
| -10 mA to +10 mA | Yes |
| — Input resistance (-10 mA to +10 mA) | 25 Ω |
| -20 mA to +20 mA | Yes |
| — Input resistance (-20 mA to +20 mA) | 25 Ω |
| -3.2 mA to +3.2 mA | Yes |
| — Input resistance (-3.2 mA to +3.2 mA) | 25 Ω |
| 4 mA to 20 mA | Yes |
| — Input resistance (4 mA to 20 mA) | 25 Ω |
| Type B | No |
| Type C | No |
| Type E | Yes |
| — Input resistance (Type E) | 10 MΩ |
| Type J | Yes |
| — Input resistance (type J) | 10 MΩ |
| Type K | Yes |
| — Input resistance (Type K) | 10 MΩ |
| Type L | Yes |
| — Input resistance (Type L) | 10 MΩ |
| Type N | Yes |
| — Input resistance (Type N) | 10 MΩ |
| Type R | No |
| Type S | No |
| Type T | No |
| Type U | No |
| Type TXK/TXK(L) to GOST | No |
| Cu 10 | No |
| Ni 100 | Yes; Standard |
| — Input resistance (Ni 100) | 10 MΩ |
| Ni 1000 | No |
| LG-Ni 1000 | No |
| Ni 120 | No |
| Ni 200 | No |
| Ni 500 | No |
| Pt 100 | Yes; Standard |
| — Input resistance (Pt 100) | 10 MΩ |
| Pt 1000 | No |
| Pt 200 | No |
| Pt 500 | No |
| 0 to 150 ohms | Yes |
| — Input resistance (0 to 150 ohms) | 10 MΩ |
| 0 to 300 ohms | Yes |
| — Input resistance (0 to 300 ohms) | 10 MΩ |
| 0 to 600 ohms | Yes |
| — Input resistance (0 to 600 ohms) | 10 MΩ |
| 0 to 6000 ohms | No |
| — parameterizable | Yes |
| — internal temperature compensation | Yes |
| — external temperature compensation with compensations socket | Yes |
| — for definable comparison point temperature | Yes |
| parameterizable | Yes |
| — for thermocouples | Type E, J, K, L, N |
| — for resistance thermometer | Pt100 (standard, climatic range), Ni100 (standard, climatic range) |
| shielded, max. | 200 m; 50 m at 80 mV and thermocouples |
| Resolution with overrange (bit including sign), max. | 15 bit; Unipolar: 9/12/12/14 bit; bipolar: 9 bit + sign/12 bit + sign/12 bit + sign/14 bit + sign |
| Integration time, parameterizable | Yes; 2,5 / 16,67 / 20 / 100 ms |
| Basic conversion time (ms) | 3 / 17 / 22 / 102 ms |
| Interference voltage suppression for interference frequency f1 in Hz | 400 / 60 / 50 / 10 Hz |
| for voltage measurement | Yes |
| for current measurement as 2-wire transducer | Yes |
| for current measurement as 4-wire transducer | Yes |
| for resistance measurement with two-wire connection | Yes |
| for resistance measurement with three-wire connection | Yes |
| for resistance measurement with four-wire connection | Yes |
| Voltage, relative to input range, (+/-) | 1 %; ±1% (80 mV); ±0.6% (250 mV to 1 000 mV); ±0.8% (2.5 V to 10 V)0.6 %; ±0.4 % (250 mV to 1 000 mV); ±0.6 % (2.5 mV to 10 mV); ±0.7 % (80 mV) |
| Current, relative to input range, (+/-) | 0.7 %; From 3.2 to 20 mA0.5 %; 3.2 to 20 mA |
| Resistance, relative to input range, (+/-) | 0.7 %; 150, 300, 600 Ohm0.5 %; 150, 300, 600 Ohm |
| Resistance thermometer, relative to input range, (+/-) | 0.7 %; ±0.7 % (Pt100/ Ni100); ±0.8 % (Pt100 climate)0.6 %; ±0.5% (Pt100/ Ni100), ±0.6% (Pt100 climate) |
| Thermocouple, relative to input range, (+/-) | 1.1 %; Type E, J, K, L, N0.7 %; Type E, N, J, K, L |
| Diagnostics function | Yes; Parameterizable |
| Diagnostic alarm | Yes; Parameterizable, channels 0 and 2 |
| Limit value alarm | Yes; Parameterizable |
| Diagnostic information readable | Yes |
| Group error SF (red) | Yes |
| between the channels | No |
| between the channels and backplane bus | Yes |
| between the channels and the power supply of the electronics | Yes |
| Isolation tested with | 500 V DC |
| required front connector | 20-pin |
| Width | 40 mm |
| Height | 125 mm |
| Depth | 117 mm |
| Weight, approx. | 250 g |
