Siemens 6ES7331-1KF02-0AB0

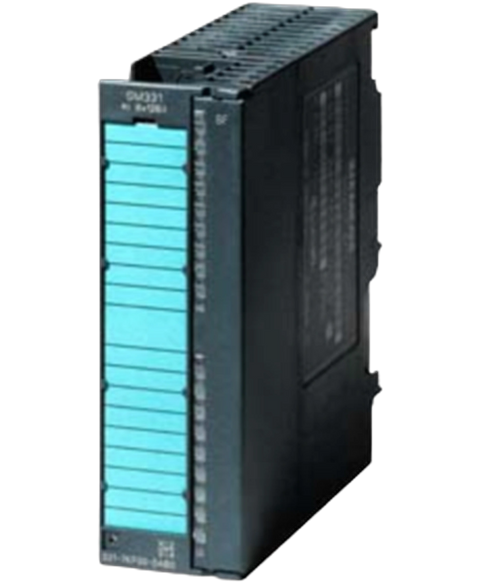

The Siemens 6ES7331-1KF02-0AB0 is an analog input module from the SIMATIC series, designed to facilitate data acquisition in automation systems. This module features eight analog inputs and operates efficiently with a permissible input voltage of up to 30 V.
This Siemens 6ES7331-1KF02-0AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26801729219.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| from backplane bus 5 V DC, max. | 90 mA |
| Power loss, typ. | 0.4 W |
| Number of analog inputs | 8 |
| For resistance measurement | 8 |
| permissible input voltage for voltage input (destruction limit), max. | 30 V; 12 V continuous, 30 V for max. 1 s |
| permissible input current for current input (destruction limit), max. | 40 mA |
| Voltage | Yes |
| Current | Yes |
| Thermocouple | No |
| Resistance thermometer | Yes |
| Resistance | Yes |
| 0 to +10 V | Yes |
| — Input resistance (0 to 10 V) | 100 kΩ |
| 1 V to 5 V | Yes |
| — Input resistance (1 V to 5 V) | 100 kΩ |
| 1 V to 10 V | No |
| -1 V to +1 V | Yes |
| — Input resistance (-1 V to +1 V) | 100 kΩ |
| -10 V to +10 V | Yes |
| — Input resistance (-10 V to +10 V) | 100 kΩ |
| -2.5 V to +2.5 V | No |
| -250 mV to +250 mV | No |
| -5 V to +5 V | Yes |
| — Input resistance (-5 V to +5 V) | 100 kΩ |
| -50 mV to +50 mV | Yes |
| — Input resistance (-50 mV to +50 mV) | 100 kΩ |
| -500 mV to +500 mV | Yes |
| — Input resistance (-500 mV to +500 mV) | 100 kΩ |
| -80 mV to +80 mV | No |
| 0 to 20 mA | Yes |
| — Input resistance (0 to 20 mA) | 100 Ω |
| -10 mA to +10 mA | No |
| -20 mA to +20 mA | Yes |
| — Input resistance (-20 mA to +20 mA) | 100 Ω |
| -3.2 mA to +3.2 mA | No |
| 4 mA to 20 mA | Yes |
| — Input resistance (4 mA to 20 mA) | 100 Ω |
| Type B | No |
| Type C | No |
| Type E | No |
| Type J | No |
| Type K | No |
| Type L | No |
| Type N | No |
| Type R | No |
| Type S | No |
| Type T | No |
| Type U | No |
| Type TXK/TXK(L) to GOST | No |
| Cu 10 | No |
| Ni 100 | Yes; Standard/climate |
| — Input resistance (Ni 100) | 100 MΩ |
| Ni 1000 | Yes |
| — Input resistance (Ni 1000) | 100 MΩ |
| LG-Ni 1000 | Yes; Standard/climate |
| — Input resistance (LG-Ni 1000) | 100 MΩ |
| Ni 120 | No |
| Ni 200 | No |
| Ni 500 | No |
| Pt 100 | Yes; Standard/climate |
| — Input resistance (Pt 100) | 100 MΩ |
| Pt 1000 | No |
| Pt 200 | No |
| Pt 500 | No |
| 0 to 150 ohms | No |
| 0 to 300 ohms | No |
| 0 to 600 ohms | Yes |
| — Input resistance (0 to 600 ohms) | 100 MΩ |
| 0 to 6000 ohms | Yes |
| — Input resistance (0 to 6000 ohms) | 100 MΩ |
| — parameterizable | No |
| — internal temperature compensation | No |
| — external temperature compensation with compensations socket | No |
| parameterizable | Yes |
| — for thermocouples | No |
| — for resistance thermometer | yes; Pt100 standard/air con.; Ni100 standard/air con.; Ni1000 standard/air con.; LG-Ni1000 standard/air con. |
| shielded, max. | 200 m; max. 50 m at 50 mV |
| Resolution with overrange (bit including sign), max. | 13 bit |
| Integration time, parameterizable | Yes; 60 / 50 ms |
| Basic conversion time (ms) | 66 / 55 ms |
| Interference voltage suppression for interference frequency f1 in Hz | 50 / 60 Hz |
| for voltage measurement | Yes |
| for current measurement as 2-wire transducer | Yes; with external supply |
| for current measurement as 4-wire transducer | Yes |
| for resistance measurement with two-wire connection | Yes |
| for resistance measurement with three-wire connection | Yes |
| for resistance measurement with four-wire connection | Yes |
| Voltage, relative to input range, (+/-) | 0.6 %; ±0.6 % (±5 V, 10 V, 1 to 5 V, 0 to 10 V); ±0.5 % (±50 mV, 500 mV, 1 V)0.4 %; 0.4% (±5 V, 10 V, 1 to 5 V, 0 to 10 V); 0.3% (±50 mV, 500 mV, 1 V) |
| Current, relative to input range, (+/-) | 0.5 %; ±20 mA, 0 to 20 mA, 4 to 20 mA0.3 %; ±20 mA, 0 to 20 mA, 4 to 20 mA |
| Resistance, relative to input range, (+/-) | 0.5 %; 0 to 6 kohms, 0 to 600 kohms0.3 %; 0 to 6 kohms, 0 to 600 kohms |
| Resistance thermometer, relative to input range, (+/-) | 1 Kelvin (Pt100, Ni100, climatic; Ni1000, LG-Ni1000, standard; Ni1000, LG-Ni1000, climatic); 1.2 Kelvin (Pt100, Ni100, standard)1 Kelvin (Pt100, Ni100, standard); 0.8 Kelvin (Pt100, Ni100, climatic; Ni1000, LG-Ni1000, standard; Ni1000, LG-Ni1000, climatic) |
| Diagnostics function | No |
| Diagnostic alarm | No |
| Limit value alarm | No |
| Diagnostic information readable | No |
| Group error SF (red) | No |
| between the channels | No |
| between the channels and backplane bus | Yes |
| Isolation tested with | 500 V DC |
| required front connector | 40-pin |
| Width | 40 mm |
| Height | 125 mm |
| Depth | 117 mm |
| Weight, approx. | 250 g |
