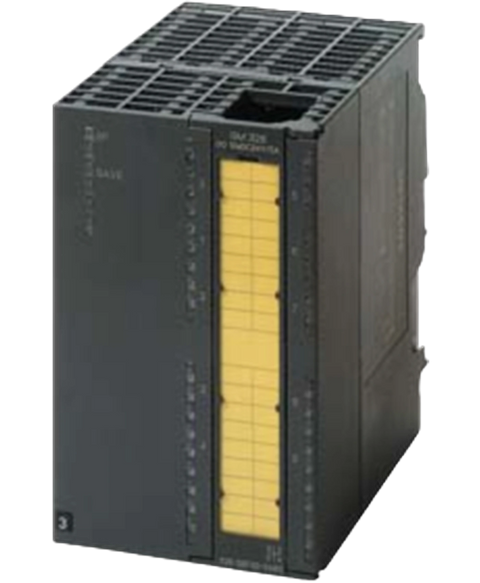

Siemens 6ES73262BF010AB0
SIMATIC S7, Digital output SM 326, 10 DO, 24 V DC, 2A, fail-safe digital output for SIMATIC S7F systems, with diagnostic alarm, 1x 40-pole
This Siemens 6ES73262BF010AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL27101780486.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Rated value (DC) | 24 V; 1L+24 V; 2L+, 3L+ |
| Reverse polarity protection | YesNo |
| from supply voltage 1L+, max. | 70 mA |
| from load voltage 2L+ (without load), max. | 100 mA |
| from load voltage 3L+ (without load), max. | 100 mA |
| from backplane bus 5 V DC, max. | 100 mA |
| Power loss, typ. | 12 W |
| Number of digital outputs | 10 |
| Short-circuit protection | Yes |
| Limitation of inductive shutdown voltage to | L+ (-53 V) without series diode, L+ (-33 V) with series diode |
| on lamp load, max. | 5 W10 Hz |
| for signal "1", min. | L+ (-1 V) without series diode, L+ (-1.8 V) with series diode |
| for signal "1" rated value | 2 A |
| for signal "1" permissible range for 0 to 40 °C, min. | 7 mA |
| for signal "1" permissible range for 0 to 40 °C, max. | 2 A; 2 A for horizontal installation, 1 A for vertical installation |
| for signal "1" permissible range for 40 to 60 °C, min. | 7 mA |
| for signal "1" permissible range for 40 to 60 °C, max. | 1 A; for horizontal installation |
| for signal "0" residual current, max. | 0.5 mA |
| with resistive load, max. | 10 Hz |
| with inductive load, max. | 2 Hz |
| — up to 40 °C, max. | 7.5 A; without series diode, 5 A with series diode5 A; without series diode, 4 A with series diode |
| — up to 60 °C, max. | 5 A; without series diode, 4 A with series diode |
| shielded, max. | 1 000 m; 200 m for SIL 3, AK 6, Cat 4 |
| unshielded, max. | 600 m |
| Diagnostic alarm | Yes |
| Diagnostic information readable | Yes |
| Fail-safe operation | Yes |
| Group error SF (red) | Yes |
| between the channels | Yes |
| between the channels, in groups of | 5 |
| between the channels and backplane bus | Yes |
| between the channels and the power supply of the electronics | Yes |
| Isolation tested with | 500 V DC/350 V AC |
| acc. to DIN VDE 0801 | AK 5 and 6 |
| acc. to EN 954 | Cat. 4 |
| Performance level according to ISO 13849-1 | e |
| SIL acc. to IEC 61508 | SIL 3 |
| required front connector | 40-pin |
| Width | 80 mm |
| Height | 125 mm |
| Depth | 120 mm |
| Weight, approx. | 465 g |
