Siemens 6ES7323-1BH01-0AA0

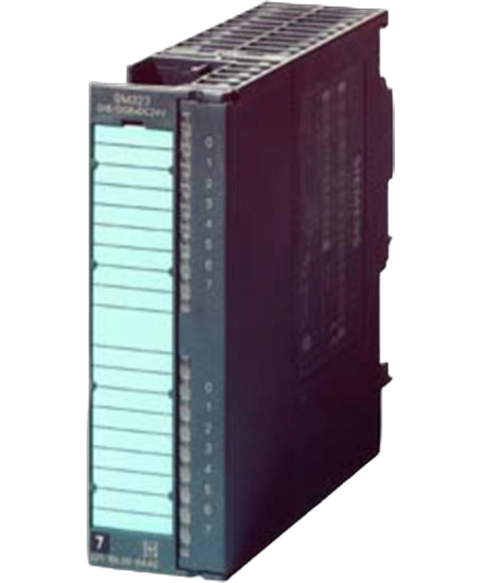

The Siemens 6ES7323-1BH01-0AA0 is a digital I,O module designated as SM 323. It features 8 input and 8 output channels, operating at 24 V DC within a voltage range of 20.4 to 28.8 V DC, ensuring reliable performance in industrial applications.
This Siemens 6ES7323-1BH01-0AA0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26801719338.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| from load voltage L+ (without load), max. | 40 mA |
| from backplane bus 5 V DC, max. | 40 mA |
| Power loss, typ. | 3.5 W |
| Number of digital inputs | 8 |
| Input characteristic curve in accordance with IEC 61131, type 1 | Yes |
| — up to 60 °C, max. | 84 A |
| — up to 40 °C, max. | 84 A |
| Type of input voltage | DC |
| for signal "0" | -30 to +5 V |
| for signal "1" | 13 to 30V |
| for signal "1", typ. | 7 mA |
| — at "0" to "1", min. | 1.2 ms |
| — at "0" to "1", max. | 4.8 ms |
| — at "1" to "0", min. | 1.2 ms |
| — at "1" to "0", max. | 4.8 ms |
| shielded, max. | 1 000 m |
| unshielded, max. | 600 m |
| Number of digital outputs | 8 |
| Short-circuit protection | Yes |
| Response threshold, typ. | 1 A |
| Limitation of inductive shutdown voltage to | L+ (-53 V) |
| Controlling a digital input | Yes |
| on lamp load, max. | 5 W10 Hz |
| lower limit | 48 Ω |
| upper limit | 4 kΩ |
| for signal "1", min. | L+ (-0.8 V) |
| for signal "1" rated value | 0.5 A |
| for signal "1" permissible range, min. | 5 mA |
| for signal "1" permissible range, max. | 0.6 A |
| for signal "1" minimum load current | 5 mA |
| for signal "0" residual current, max. | 0.5 mA |
| "0" to "1", max. | 100 µs |
| "1" to "0", max. | 500 µs |
| for uprating | No |
| for redundant control of a load | Yes; only outputs of the same group |
| with resistive load, max. | 100 Hz |
| with inductive load, max. | 0.5 Hz |
| with inductive load (acc. to IEC 60947-5-1, DC13), max. | 0.5 Hz |
| 2-wire sensor | Yes |
| — permissible quiescent current (2-wire sensor), max. | 2 mA |
| Alarms | No |
| Diagnostics function | No |
| Status indicator digital input (green) | Yes |
| Status indicator digital output (green) | Yes |
| between the channels | Yes |
| between the channels, in groups of | 8 |
| between the channels and backplane bus | Yes; Optocoupler |
| Isolation tested with | 500 V DC |
| required front connector | 20-pin |
| Width | 40 mm |
| Height | 125 mm |
| Depth | 120 mm |
| Weight, approx. | 220 g |
