Siemens 6ES7322-5HF00-0AB0

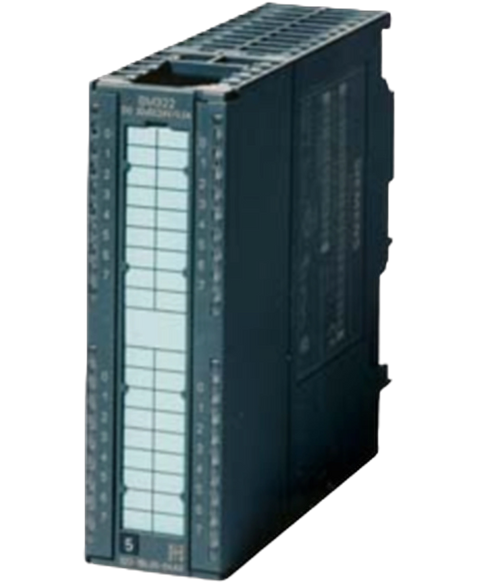

The Siemens 6ES7322-5HF00-0AB0 output module is designed for digital applications. It operates with a rated supply voltage of 24 V DC and accommodates load voltages up to 230 V AC. This module features eight digital outputs.
This Siemens 6ES7322-5HF00-0AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26805594384.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 24 V |
| permissible range, upper limit (DC) | 120 V |
| Rated value (AC) | 230 V |
| from supply voltage L+, max. | 160 mA |
| from backplane bus 5 V DC, max. | 100 mA |
| Power loss, typ. | 3.5 W |
| Number of digital outputs | 8; Relays |
| Short-circuit protection | No; to be provided externally |
| Controlling a digital input | Yes |
| on lamp load, max. | 1 500 W; 230 V AC2 Hz |
| Low energy/fluorescent lamps with electronic control gear | 10x 58 W |
| Fluorescent tubes, conventionally compensated | 1x 58 W |
| Fluorescent tubes, uncompensated | 10x 58 W |
| for signal "1" rated value | 5 A |
| for signal "1" minimum load current | 10 mA |
| for uprating | No |
| for redundant control of a load | Yes |
| with resistive load, max. | 2 Hz |
| with inductive load, max. | 0.5 Hz |
| With inductive load (to IEC 60947-5-1, DC13/AC15), max. | 0.5 Hz |
| mechanical, max. | 10 Hz |
| — up to 60 °C, max. | 5 A |
| — up to 40 °C, max. | 5 A |
| Contact connection (internal) | Yes; 330 Ohm, 0.1uF |
| Number of operating cycles, max. | 100 000; 100 000 (24 V DC, at 5 A), 100 000 (230 V AC, at 5 A) |
| — with inductive load, max. | 5 A; 5 A (230 V DC), 5 A (24 V AC) |
| — with resistive load, max. | 5 A; 5 A (230 V DC), 5 A (24 V AC) |
| — Thermal continuous current, max. | 5 A |
| shielded, max. | 1 000 m |
| unshielded, max. | 600 m |
| Alarms | Yes |
| Diagnostics function | Yes; Parameterizable |
| Diagnostic alarm | Yes; Parameterizable |
| Diagnostic information readable | Yes |
| Group error SF (red) | Yes |
| Status indicator digital output (green) | Yes |
| between the channels | Yes |
| between the channels, in groups of | 1 |
| between the channels and backplane bus | Yes; Optocoupler |
| Between the channels and the power supply of the relays | Yes |
| Isolation tested with | 1 500 V AC |
| required front connector | 40-pin |
| Width | 40 mm |
| Height | 125 mm |
| Depth | 120 mm |
| Weight, approx. | 320 g |
