Siemens 6ES7322-1HH01-0AA0

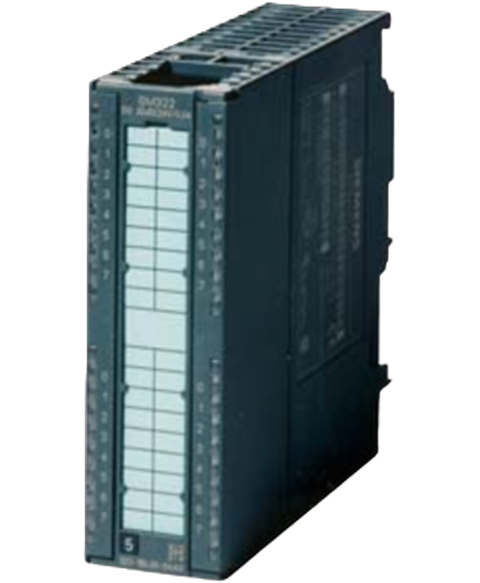

The Siemens 6ES7322-1HH01-0AA0 is an I,O module with an operational supply voltage of 230 V. It features 16 digital outputs with a significant output capacity of 50 W at 230 V AC, making it suitable for various control applications.
This Siemens 6ES7322-1HH01-0AA0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26801721772.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Rated value (DC) | 120 V |
| Rated value (AC) | 230 V |
| from supply voltage L+, max. | 250 mA |
| from backplane bus 5 V DC, max. | 100 mA |
| Power loss, typ. | 4.5 W |
| Number of digital outputs | 16; Relays |
| Short-circuit protection | No |
| Controlling a digital input | Yes |
| Size of motor starters according to NEMA, max. | Size 5 according to NEMA |
| on lamp load, max. | 50 W; 230 V AC1 Hz |
| for signal "1" rated value | 2 A |
| for signal "1" minimum load current | 10 mA |
| for uprating | No |
| for redundant control of a load | Yes |
| with resistive load, max. | 1 Hz |
| with inductive load, max. | 0.5 Hz |
| With inductive load (to IEC 60947-5-1, DC13/AC15), max. | 0.5 Hz |
| mechanical, max. | 10 Hz |
| — up to 60 °C, max. | 8 A |
| — up to 40 °C, max. | 8 A |
| Rated supply voltage of relay coil L+ (DC) | 24 V |
| Contact connection (internal) | No |
| Number of operating cycles, max. | 100 000; 50 000 (24 V DC, at 2 A); 700 000 (120 V AC, at 2 A); 100 000 (230 V AC, at 2 A) |
| — with inductive load, max. | 2 A; 2 A (230 V AC), 2 A (24 V DC) |
| — with resistive load, max. | 2 A; 2 A (230 V AC), 2 A (24 V DC) |
| — Thermal continuous current, max. | 2 A |
| shielded, max. | 1 000 m |
| unshielded, max. | 600 m |
| Alarms | No |
| Diagnostics function | No |
| Diagnostic alarm | No |
| Wire-break | No |
| Short-circuit | No |
| Fuse blown | No |
| missing load voltage | No |
| Rated load voltage PWR (green) | No |
| Fuse OK FSG (green) | No |
| Status indicator digital output (green) | Yes |
| between the channels | Yes |
| between the channels, in groups of | 8 |
| between the channels and backplane bus | Yes; Optocoupler |
| Isolation tested with | 1 500 V AC |
| required front connector | 20-pin |
| Width | 40 mm |
| Height | 125 mm |
| Depth | 120 mm |
| Weight, approx. | 250 g |
