Siemens 6ES7322-1HF10-0AA0

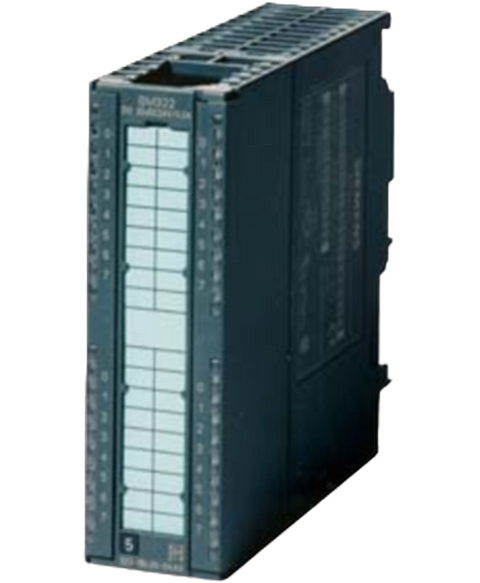

Siemens 6ES73221HF100AA0 S7-300 relay output module, 8DO, 24VDC,230VAC.
This Siemens 6ES7322-1HF10-0AA0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26801448067.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Rated value (DC) | 120 V |
| Rated value (AC) | 230 V |
| from supply voltage L+, max. | 125 mA |
| from backplane bus 5 V DC, max. | 40 mA |
| Power loss, typ. | 3.2 W |
| Number of digital outputs | 8; Relays |
| Short-circuit protection | No; to be provided externally |
| Controlling a digital input | Yes |
| on lamp load, max. | 1 500 W; 230 V AC2 Hz |
| Low energy/fluorescent lamps with electronic control gear | 10x 58 W |
| Fluorescent tubes, conventionally compensated | 1x 58 W |
| Fluorescent tubes, uncompensated | 10x 58 W |
| for signal "1" rated value | 5 A |
| for signal "1" minimum load current | 5 mA |
| for uprating | No |
| for redundant control of a load | Yes |
| with resistive load, max. | 2 Hz |
| with inductive load, max. | 0.5 Hz |
| With inductive load (to IEC 60947-5-1, DC13/AC15), max. | 0.5 Hz |
| mechanical, max. | 10 Hz |
| — up to 60 °C, max. | 5 A |
| — up to 40 °C, max. | 5 A |
| Rated supply voltage of relay coil L+ (DC) | 24 V |
| Contact connection (internal) | No |
| Number of operating cycles, max. | 300 000; 300 000 (24 V DC, at 2 A); 200 000 (120 V AC, at 3 A); 100 000 (230 V AC, at 3 A) |
| — with inductive load, max. | 3 A; 3 A (230 V DC), 2 A (24 V AC) |
| — with resistive load, max. | 8 A; 8 A (230 V DC), 5 A (24 V AC) |
| — Thermal continuous current, max. | 8 A |
| shielded, max. | 1 000 m |
| unshielded, max. | 600 m |
| Alarms | No |
| Diagnostics function | No |
| Diagnostic alarm | No |
| Wire-break | No |
| Short-circuit | No |
| Fuse blown | No |
| missing load voltage | No |
| Rated load voltage PWR (green) | No |
| Fuse OK FSG (green) | No |
| Status indicator digital output (green) | Yes |
| between the channels | Yes |
| between the channels, in groups of | 1 |
| between the channels and backplane bus | Yes; Optocoupler |
| Isolation tested with | 2 000 V AC |
| required front connector | 40-pin |
| Width | 40 mm |
| Height | 125 mm |
| Depth | 120 mm |
| Weight, approx. | 320 g |
