Siemens 6ES7322-1HF01-0AA0

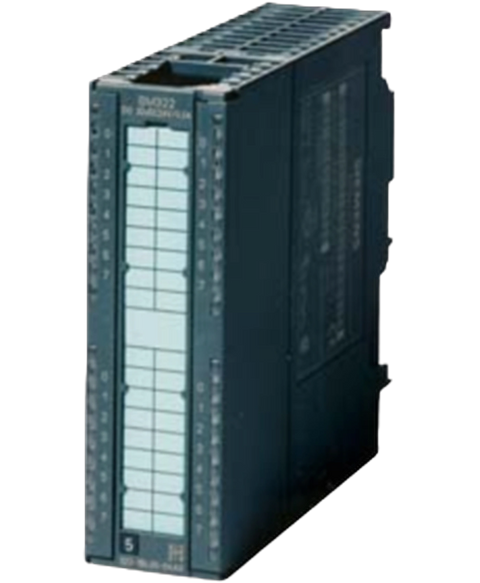

Siemens 6ES73221HF010AA0 S7-300 relay output module, 8DO, 24VDC,230VAC.
This Siemens 6ES7322-1HF01-0AA0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26801444282.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Rated value (DC) | 24 V |
| from supply voltage L+, max. | 160 mA |
| from backplane bus 5 V DC, max. | 40 mA |
| Power loss, typ. | 3.2 W |
| Number of digital outputs | 8; Relays |
| Short-circuit protection | No |
| Controlling a digital input | Yes |
| on lamp load, max. | 50 W2 Hz |
| Low energy/fluorescent lamps with electronic control gear | 10x 58 W |
| Fluorescent tubes, conventionally compensated | 1x 58 W |
| Fluorescent tubes, uncompensated | 10x 58 W |
| for signal "1" rated value | 2 A |
| for signal "1" minimum load current | 5 mA |
| for uprating | No |
| for redundant control of a load | Yes |
| with resistive load, max. | 2 Hz |
| with inductive load, max. | 0.5 Hz |
| With inductive load (to IEC 60947-5-1, DC13/AC15), max. | 0.5 Hz |
| mechanical, max. | 10 Hz |
| Rated supply voltage of relay coil L+ (DC) | 24 V; 110 mA |
| Contact connection (internal) | Yes; SIOV-CU4032 K275G |
| Number of operating cycles, max. | 300 000; 230 V AC: 100 000; 120 V AC: 200 000; 24 V DC: 300 000 (at 2 A) |
| — with inductive load, max. | 2 A; 2 A (230 V AC), 2 A (24 V DC) |
| — with resistive load, max. | 2 A |
| — Thermal continuous current, max. | 3 A |
| shielded, max. | 1 000 m |
| unshielded, max. | 600 m |
| Alarms | No |
| Diagnostics function | No |
| Diagnostic alarm | No |
| Wire-break | No |
| Short-circuit | No |
| Fuse blown | No |
| missing load voltage | No |
| Rated load voltage PWR (green) | No |
| Fuse OK FSG (green) | No |
| Status indicator digital output (green) | Yes |
| between the channels | Yes |
| between the channels, in groups of | 2 |
| between the channels and backplane bus | Yes; Optocoupler |
| Isolation tested with | 1 500 V AC |
| required front connector | 20-pin |
| Width | 40 mm |
| Height | 125 mm |
| Depth | 120 mm |
| Weight, approx. | 190 g |
