Siemens 6ES7322-1BP00-0AA0

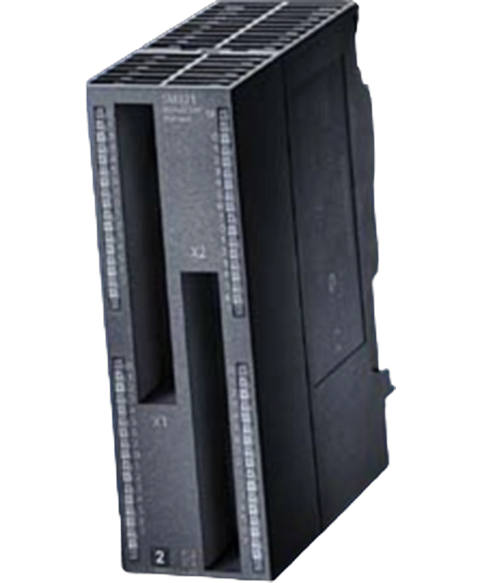

Siemens 6ES73221BP000AA0 S7-300 digital output module, 64DO, 24VDC.
This Siemens 6ES7322-1BP00-0AA0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26805606329.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| from load voltage L+ (without load), max. | 75 mA |
| from backplane bus 5 V DC, max. | 100 mA |
| Power loss, typ. | 6 W |
| Number of digital outputs | 64 |
| Short-circuit protection | Yes; Electronic |
| Response threshold, typ. | 0.7 to 1.9 A |
| Limitation of inductive shutdown voltage to | L+ (-53 V) |
| Controlling a digital input | Yes |
| on lamp load, max. | 5 W10 Hz |
| lower limit | 80 Ω |
| upper limit | 10 kΩ |
| for signal "1", min. | L+ (-0.5 V) |
| for signal "1" rated value | 0.3 A |
| for signal "1" permissible range, min. | 2.4 mA |
| for signal "1" permissible range, max. | 0.36 A |
| for signal "0" residual current, max. | 0.1 mA |
| "0" to "1", max. | 550 µs |
| "1" to "0", max. | 550 µs |
| for uprating | No |
| for redundant control of a load | Yes |
| with resistive load, max. | 100 Hz |
| with inductive load, max. | 0.5 Hz |
| — up to 40 °C, max. | 1.6 A |
| — up to 60 °C, max. | 1.2 A |
| shielded, max. | 1 000 m |
| unshielded, max. | 600 m |
| Alarms | No |
| Diagnostics function | No |
| Diagnostic alarm | No |
| Diagnostic information readable | No |
| Wire-break | No |
| Short-circuit | No |
| Fuse blown | No |
| missing load voltage | No |
| between the channels | No |
| between the channels, in groups of | 16 |
| between the channels and backplane bus | Yes; Optocoupler |
| Isolation tested with | 500 V DC |
| required front connector | Cable: 6ES7392-4Bxx0-0AA0 terminal blocks: 6ES7392-1xN00-0AA0 |
| Width | 40 mm |
| Height | 125 mm |
| Depth | 112 mm |
| Weight, approx. | 230 g |
