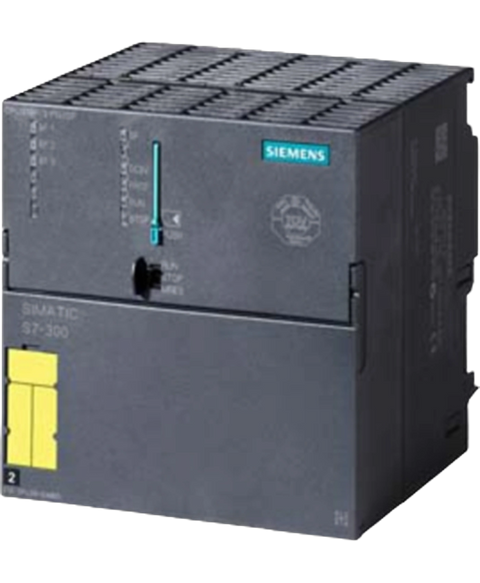

SIMATIC S7-300 CPU319F-3 PN,DP, Central processing unit with 1400 KB work memory, 1st interface MPI,DP 12 Mbit,s, 2nd interface DP master,slave 3rd interface Ethernet PROFINET, Micro Memory Card required Can be used with software package Distributed Safety from V5.4 SP3

This Siemens 6ES73183FL000AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Modular plcs range and is referenced internally as PartLogic SKU PL27100779109.

Brand New - 12 Months Warranty
$3,990.19 (inc. GST)
In Stock

Datasheet

HW functional status 03
Firmware version V2.8
Isochronous mode Yes; Via 2nd DP interface
Programming package STEP 7 V5.4 + SP5 or higher or STEP 7 V5.4 + SP4 or higher with HSP 186, S7 Distributed Safety V5.4 SP4 or higher
Rated value (DC) 24 V
permissible range, lower limit (DC) 20.4 V
permissible range, upper limit (DC) 28.8 V
external protection for power supply lines (recommendation) 2 A min.
Current consumption (rated value) 1 050 mA
Current consumption (in no-load operation), typ. 400 mA
Inrush current, typ. 4 A
I²t 1.2 A²·s
Power loss, typ. 14 W
integrated 1 400 kbyte2
expandable No
Plug-in (MMC) Yes
Plug-in (MMC), max. 8 Mbyte
Data management on MMC (after last programming), min. 10 a
present Yes; Guaranteed by MMC (maintenance-free)Yes
without battery Yes; Program and data
for bit operations, typ. 0.01 µs
for word operations, typ. 0.02 µs
for fixed point arithmetic, typ. 0.02 µs
for floating point arithmetic, typ. 0.04 µs
Number of blocks (total) 4 096; (DBs, FCs, FBs); the maximum number of loadable blocks can be reduced by the MMC used.
Number, max. 4 096; Number range: 1 to 160004 096; Number range: 0 to 7999
Size, max. 64 kbyte8 192 byte
Number of free cycle OBs 1; OB 1
Number of time alarm OBs 1; OB 10
Number of delay alarm OBs 2; OB 20, 21
Number of cyclic interrupt OBs 4; OB 32, 33, 34, 35 (OB 35: smallest settable clock pulse = 500 µs)
Number of process alarm OBs 1; OB 40
Number of DPV1 alarm OBs 3; OB 55, 56, 57
Number of isochronous mode OBs 1; OB 61
Number of startup OBs 1; OB 100
Number of asynchronous error OBs 6; OB 80, 82, 83, 85, 86, 87 (OB83 only for PROFINET IO)
Number of synchronous error OBs 2; OB 121, 122
per priority class 16
additional within an error OB 4
Number 2 048Unlimited (limited only by RAM capacity)4
— adjustable YesNoYes; From 10 to 499
— lower limit 010 ms
— upper limit 2 0479999 990 s
— preset Z 0 to Z 7No retentivity10
Type SFB
Retentive data area (incl. timers, counters, flags), max. 700 kbyte
Retentivity available Yes; From MB 0 to MB 8 191
Retentivity preset MB 0 to MB 15Yes
Number of clock memories 8; 1 memory byte
Retentivity adjustable Yes; via non-retain property on DB
per priority class, max. 32 768 byte; Max. 2048 bytes per block
Inputs 8 192 byte65 5364 096
Outputs 8 192 byte65 5364 096
— Inputs 8 192 byte244 byte
— Outputs 8 192 byte244 byte
Inputs, adjustable 8 192 byte
Outputs, adjustable 8 192 byte
Inputs, default 1 024 byte
Outputs, default 1 024 byte
Number of subprocess images, max. 1
— of which central 1 024256
via CP 4
FM 8
CP, PtP 8
CP, LAN 10
Racks, max. 4
Modules per rack, max. 8
Hardware clock (real-time) Yes
retentive and synchronizable Yes
Backup time 6 wk; At 40 °C ambient temperature
Deviation per day, max. 10 s
Behavior of the clock following expiry of backup period the clock continues at the time of day it had when power was switched off
Number/Number range 0 to 3
Range of values 0 to 2^31 hours (when using SFC 101)
Granularity 1 h
retentive Yes; Must be restarted at each restart
supported YesYes; only read functionYes; via CP and loadable FC
to MPI, master Yes
to MPI, slave Yes
to DP, master Yes; With DP slave only slave clock
to DP, slave Yes
in AS, master Yes
in AS, slave Yes
on Ethernet via NTP Yes; As client
Interface type Integrated RS 485 interfacePROFINET
Isolated Yes
RS 485 Yes
Output current of the interface, max. 150 mA200 mA
MPI YesNo
PROFIBUS DP master YesNo
PROFIBUS DP slave YesNo
Point-to-point connection No
Number of connections 32
Transmission rate, max. 12 Mbit/s100 Mbit/s
— PG/OP communication Yes
— Routing YesYes; with interface active
— Global data communication YesNo
— S7 basic communication YesYes; I blocks onlyNo
— S7 communication YesYes; with loadable FBs, max. configurable connections: 16, max. number of instances: 32
— S7 communication, as client No; but via CP and loadable FBNo
— S7 communication, as server YesYes; Connection configured on one side only
Number of DP slaves, max. 124
— Equidistance Yes
— Isochronous mode NoYes; OB 61
— SYNC/FREEZE Yes
— Activation/deactivation of DP slaves Yes
— Number of DP slaves that can be simultaneously activated/deactivated, max. 8
— Direct data exchange (slave-to-slave communication) Yes; as subscriberYes
— DPV1 YesNo
— Inputs, max. 8 kbyte244 byte
— Outputs, max. 8 kbyte244 byte
automatic baud rate search Yes; only with passive interface
Address area, max. 32
User data per address area, max. 32 byte
PROFINET IO Controller NoYes
PROFINET IO Device No
PROFINET CBA NoYes
Open IE communication NoYes; Via TCP/IP, ISO on TCP, and UDP
Web server NoYes; only read function
GSD file The latest GSD file is available at: http://www.siemens.com/profibus-gsd
automatic detection of transmission rate Yes; 10/100 Mbit/s
Autonegotiation Yes
Autocrossing Yes
RJ 45 (Ethernet) Yes
Number of ports 1
integrated switch No
— Prioritized startup Yes
— Number of IO devices with prioritized startup, max. 32
— Number of connectable IO Devices, max. 256
— Number of IO Devices with IRT and the option "high flexibility" 256
— of which in line, max. 61256
— Number of connectable IO Devices for RT, max. 256
— Activation/deactivation of IO Devices Yes
— Number of IO Devices that can be simultaneously activated/deactivated, max. 8
— IO Devices changing during operation (partner ports), supported Yes
— Number of IO Devices per tool, max. 8
— Device replacement without swap medium Yes
— Send cycles 250 µs, 500 µs, 1 ms
— Updating time 250 µs - 128 ms (with send cycle of 250 µs); 500 µs - 256 ms (with send cycle of 500 µs); 1 ms - 512 ms (with send cycle 1 ms); minimum value of the send cycle is also dependent on the set communication share for PROFINET IO, on the number of I/O devices, and on the volume of configured user data.
— User data consistency, max. 254 byte
acyclic transmission Yes
cyclic transmission Yes
Number of connections, max. 32
Local port numbers used at the system end 0, 20, 21, 23, 25, 80, 102, 135, 161, 8080, 34962, 34963, 34964, 65532, 65533, 65534, 65535
TCP/IP Yes; via integrated PROFINET interface and loadable FBs
— Number of connections, max. 32
— Data length for connection type 01H, max. 1 460 byte
— Data length for connection type 11H, max. 8 192 byte
ISO-on-TCP (RFC1006) Yes; via integrated PROFINET interface and loadable FBs
— Data length, max. 8 192 byte1 472 byte
UDP Yes; via integrated PROFINET interface and loadable FBs
Number of HTTP clients 5
PG/OP communication Yes
Data record routing Yes
Number of GD loops, max. 8
Number of GD packets, max. 8
Number of GD packets, transmitter, max. 8
Number of GD packets, receiver, max. 8
Size of GD packets, max. 22 byte
Size of GD packet (of which consistent), max. 22 byte
User data per job, max. 76 byteSee online help of STEP 7 (shared parameters of the SFBs/FBs and of the SFCs/FCs of S7 Communication)
User data per job (of which consistent), max. 76 byte; 76 bytes (with X_SEND or X_RCV); 64 bytes (with X_PUT or X_GET as server)
as server Yes
as client Yes; via integrated PROFINET interface and loadable FB or via CP and loadable FB
Setpoint for the CPU communication load 20 %
number of remote connection partners / with PROFINET CBA 32
number of technological functions / with PROFINET CBA / for master or slave 50
number of connections / with PROFINET CBA / for master or slave / total 3 000
data volume / of the input variables / with PROFINET CBA / for master or slave 24 000 byte
data volume / of the output variables / with PROFINET CBA / for master or slave 24 000 byte
number of internal and PROFIBUS interconnections / with PROFINET CBA / maximum 1 000
data volume / of internal and PROFIBUS interconnections / with PROFINET CBA / for master or slave 8 000 byte
data volume / with PROFINET CBA / per connection / maximum 1 400 byte
— update time / of the remote interconnections / in the case of acyclic transmission / with PROFINET CBA 200 ms
— number of remote connections to input variables / in the case of acyclic transmission / with PROFINET CBA / maximum 100
— number of remote connections to output variables / in the case of acyclic transmission / with PROFINET CBA / maximum 100
— data volume / as user data for remote interconnections with input variables / in the case of acyclic transmission / with PROFINET CBA 3 200 byte
— data volume / as user data for remote interconnections with output variables / in the case of acyclic transmission / with PROFINET CBA 3 200 byte
— data volume / as user data for remote interconnections / in the case of acyclic transmission / with PROFINET CBA / per connection / maximum 1 400 byte
— update time / of the remote interconnections / with cyclical transfer / with PROFINET CBA 1 ms
— number of remote connections to input variables / with PROFINET CBA / with cyclic transfer / maximum 300
— number of remote connections to output variables / with cyclical transfer / with PROFINET CBA / maximum 300
— data volume / as user data for remote interconnections with input variables / with cyclical transfer / with PROFINET CBA / maximum 4 800 byte
— data volume / as user data for remote interconnections with output variables / with cyclical transfer / with PROFINET CBA / maximum 4 800 byte
— data volume / as user data for remote interconnections / with cyclical transfer / with PROFINET CBA / per connection / maximum 250 byte
— number of connectable HMI stations / for HMI variables / in the case of acyclic transmission / with PROFINET CBA 3; 2x PN OPC/1x iMap
— update time / of the HMI variables / in the case of acyclic transmission / with PROFINET CBA 500 ms
— number of HMI variables / in the case of acyclic transmission / with PROFINET CBA / maximum 600
— data volume / as user data for HMI variables / in the case of acyclic transmission / with PROFINET CBA / maximum 9 600 byte
— product function / with PROFINET CBA / PROFIBUS proxy functionality Yes
— number of coupled PROFIBUS devices / with PROFIBUS functionality 32
— data volume / with PROFIBUS proxy functionality / with PROFINET CBA / per connection / maximum 240 byte; Slave-dependent
overall 32
usable for PG communication 31
— reserved for PG communication 1
— adjustable for PG communication, min. 1
— adjustable for PG communication, max. 31
usable for OP communication 31
— reserved for OP communication 1
— adjustable for OP communication, min. 1
— adjustable for OP communication, max. 31
usable for S7 basic communication 30
— reserved for S7 basic communication 0
— adjustable for S7 basic communication, min. 0
— adjustable for S7 basic communication, max. 30
usable for S7 communication 16
— reserved for S7 communication 0
— adjustable for S7 communication, min. 0
— adjustable for S7 communication, max. 16
total number of instances, max. 32
usable for routing X1 as MPI: max. 10; X1 as DP master: max. 24; X1 as DP slave (active): max. 14; X2 as DP master: max. 24; X2 as DP slave (active): max. 14; X3 as PROFINET: 48 max.
Number of login stations for message functions, max. 32; Depending on the configured connections for PG/OP and S7 basic communication
Process diagnostic messages Yes
simultaneously active Alarm-S blocks, max. 300
Status block Yes; Up to 2 simultaneously
Single step Yes
Number of breakpoints 4
Status/control variable Yes
Variables Inputs, outputs, memory bits, DB, times, counters
Number of variables, max. 3010
— of which status variables, max. 30
— of which control variables, max. 14
Forcing Yes
Forcing, variables Inputs, outputs
Number of entries, max. 500
— of which powerfail-proof 100
min. 0 °C
max. 60 °C
STEP 7 Yes; V5.4 SP4 or higher with HW update
Command set see instruction list
Nesting levels 8
System functions (SFC) see instruction list
System function blocks (SFB) see instruction list
— LAD Yes
— FBD Yes
— STL Yes
— SCL Yes
— CFC Yes
— GRAPH Yes
— HiGraph® Yes
User program protection/password protection Yes
Width 120 mm
Height 125 mm
Depth 130 mm
Weight, approx. 1 250 g
