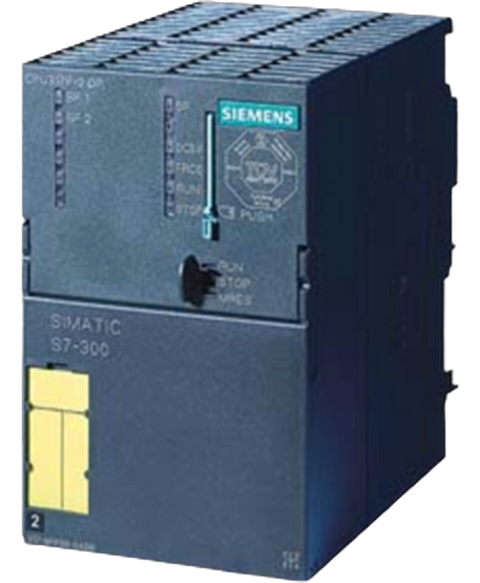

Product image for illustrative purposes only. Actual item may vary.
Siemens 6ES73176FF030AB0
SIMATIC S7-300, CPU 317F-2DP, Central processing unit with 1024 KB work memory, 1st interface MPI,DP 12 Mbit,s, 2nd interface DP master,slave Micro Memory Card required Can be used with software package S7 Distributed Safety V5.2 SP1 or higher
This Siemens 6ES73176FF030AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Modular plcs range and is referenced internally as PartLogic SKU PL27100782245.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$793.77
(inc. GST)
In Stock
| HW functional status | 01 |
| Firmware version | V2.6 |
| Programming package | STEP 7 V5.2 SP1 or higher with hardware update; S7 Distributed Safety V5.2 SP1 or higher |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| external protection for power supply lines (recommendation) | 2 A min. |
| Current consumption (in no-load operation), typ. | 100 mA |
| Inrush current, typ. | 2.5 A |
| I²t | 1 A²·s |
| Power loss, typ. | 4 W |
| integrated | 1 024 kbyte2 |
| expandable | No |
| Plug-in (MMC) | Yes |
| Plug-in (MMC), max. | 8 Mbyte |
| Data management on MMC (after last programming), min. | 10 a |
| present | Yes; Guaranteed by MMC (maintenance-free)Yes |
| without battery | Yes; Program and data |
| for bit operations, typ. | 0.05 µs |
| for bit operations, max. | 0.05 µs |
| for word operations, typ. | 0.2 µs |
| for fixed point arithmetic, typ. | 0.2 µs |
| for floating point arithmetic, typ. | 1 µs |
| Number of blocks (total) | 2 048; (DBs, FCs, FBs); the maximum number of loadable blocks can be reduced by the MMC used. |
| Number, max. | 2 047; Number band: 1 to 20472 048; Number range: 0 to 2047see instruction list |
| Size, max. | 64 kbyte4 096 byte |
| Number of free cycle OBs | 1; OB 1 |
| Number of time alarm OBs | 1; OB 10 |
| Number of delay alarm OBs | 2; OB 20, 21 |
| Number of cyclic interrupt OBs | 4; OB 32, 33, 34, 35 |
| Number of process alarm OBs | 1; OB 40 |
| Number of DPV1 alarm OBs | 3; OB 55, 56, 57 |
| Number of isochronous mode OBs | 1; OB 61 |
| Number of startup OBs | 1; OB 100 |
| Number of asynchronous error OBs | 5; OB 80, 82, 85, 86, 87 |
| Number of synchronous error OBs | 2; OB 121, 122 |
| per priority class | 16 |
| additional within an error OB | 4 |
| Number | 512Unlimited (limited only by RAM capacity)4 |
| — adjustable | YesNo |
| — preset | 8No retentivity |
| — counting range / of S7 counters / initial value | 0 |
| — counting range / of S7 counters / full-scale value | 999 |
| Type | SFB |
| — time range / of the S7 timers / initial value | 10 ms |
| — time range / of the S7 timers / full-scale value | 9 990 s |
| Retentive data area (incl. timers, counters, flags), max. | 256 kbyte |
| Retentivity available | Yes; From MB 0 to MB 4 095 |
| Retentivity preset | MB 0 to MB 15Yes |
| Number of clock memories | 8; 1 memory byte |
| Retentivity adjustable | Yes; via non-retain property on DB |
| per priority class, max. | 1 024 byte |
| Inputs | 8 kbyte1 024 byte65 5364 096 |
| Outputs | 8 kbyte1 024 byte65 5364 096 |
| — Inputs | 8 kbyte244 byte |
| — Outputs | 8 kbyte244 byte |
| — of which central | 1 024256 |
| Number of expansion units, max. | 3 |
| via CP | 4 |
| FM | 8 |
| CP, PtP | 8 |
| CP, LAN | 10 |
| Racks, max. | 4 |
| Modules per rack, max. | 8 |
| Hardware clock (real-time) | Yes |
| retentive and synchronizable | Yes |
| Backup time | 6 wk; At 40 °C ambient temperature |
| Deviation per day, max. | 10 s |
| Number/Number range | 0 to 3 |
| Range of values | 0 to 2^31 hours (when using SFC 101) |
| Granularity | 1 h |
| retentive | Yes; Must be restarted at each restart |
| supported | YesYes; via CP and loadable FC |
| to MPI, master | Yes |
| to MPI, slave | Yes |
| to DP, master | Yes; With DP slave only slave clock |
| to DP, slave | Yes |
| in AS, master | Yes |
| in AS, slave | Yes |
| integrated channels (DI) | 0 |
| integrated channels (DO) | 0 |
| integrated channels (AI) | 0 |
| integrated channels (AO) | 0 |
| Number of industrial Ethernet interfaces | 0 |
| Number of PROFINET interfaces | 0 |
| Number of RS 485 interfaces | 2 |
| Number of RS 422 interfaces | 0 |
| Interface type | Integrated RS 485 interface |
| Isolated | Yes |
| RS 485 | Yes |
| Output current of the interface, max. | 200 mA |
| MPI | YesNo |
| PROFIBUS DP master | Yes |
| PROFIBUS DP slave | Yes |
| Point-to-point connection | No |
| Number of connections | 32 |
| Transmission rate, max. | 12 Mbit/s |
| — PG/OP communication | Yes |
| — Routing | YesYes; Only with active interfaceYes; with interface active |
| — Global data communication | YesNo |
| — S7 basic communication | Yes |
| — S7 communication | Yes |
| — S7 communication, as client | No |
| — S7 communication, as server | Yes |
| Number of DP slaves, max. | 124 |
| — Equidistance | Yes |
| — Isochronous mode | NoYes; OB 61 |
| — SYNC/FREEZE | Yes |
| — Activation/deactivation of DP slaves | Yes |
| — DPV1 | YesNo |
| — Inputs, max. | 244 byte |
| — Outputs, max. | 244 byte |
| automatic baud rate search | Yes; only with passive interface |
| Address area, max. | 32 |
| User data per address area, max. | 32 byte |
| — Direct data exchange (slave-to-slave communication) | Yes |
| Number of connections, max. | 32 |
| GSD file | http://support.automation.siemens.com in Product Support area |
| PROFIsafe | Yes |
| PG/OP communication | Yes |
| Number of GD loops, max. | 8 |
| Number of GD packets, max. | 8 |
| Number of GD packets, transmitter, max. | 8 |
| Number of GD packets, receiver, max. | 8 |
| Size of GD packets, max. | 22 byte |
| Size of GD packet (of which consistent), max. | 22 byte |
| communication function / S7 basic communication | Yes |
| User data per job, max. | 76 byte180 byte; With PUT/GET |
| User data per job (of which consistent), max. | 76 byte; 76 bytes (with X_SEND or X_RCV); 64 bytes (with X_PUT or X_GET as server)160 byte; as server |
| as server | Yes |
| as client | Yes; Via CP and loadable FB |
| overall | 32 |
| usable for PG communication | 31 |
| — reserved for PG communication | 1 |
| — adjustable for PG communication, min. | 1 |
| — adjustable for PG communication, max. | 31 |
| usable for OP communication | 31 |
| — reserved for OP communication | 1 |
| — adjustable for OP communication, min. | 1 |
| — adjustable for OP communication, max. | 31 |
| usable for S7 basic communication | 30 |
| — reserved for S7 basic communication | 0 |
| — adjustable for S7 basic communication, min. | 0 |
| — adjustable for S7 basic communication, max. | 30 |
| usable for routing | 8 |
| Number of login stations for message functions, max. | 32; Depending on the configured connections for PG/OP and S7 basic communication |
| Process diagnostic messages | Yes |
| simultaneously active Alarm-S blocks, max. | 60 |
| Status block | Yes |
| Single step | Yes |
| Number of breakpoints | 2 |
| Status/control variable | Yes |
| Variables | Inputs, outputs, memory bits, DB, times, counters |
| Number of variables, max. | 3010 |
| — of which status variables, max. | 30 |
| — of which control variables, max. | 14 |
| Forcing | Yes |
| Forcing, variables | Inputs, outputs |
| Number of entries, max. | 100 |
| STEP 7 | Yes; V5.2 SP1 or higher |
| Command set | see instruction list |
| Nesting levels | 8 |
| System functions (SFC) | see instruction list |
| System function blocks (SFB) | see instruction list |
| — LAD | Yes |
| — FBD | Yes |
| — STL | Yes |
| — SCL | Yes |
| — CFC | Yes |
| — GRAPH | Yes |
| — HiGraph® | Yes |
| User program protection/password protection | Yes |
| Width | 80 mm |
| Height | 125 mm |
| Depth | 130 mm |
| Weight, approx. | 460 g |
