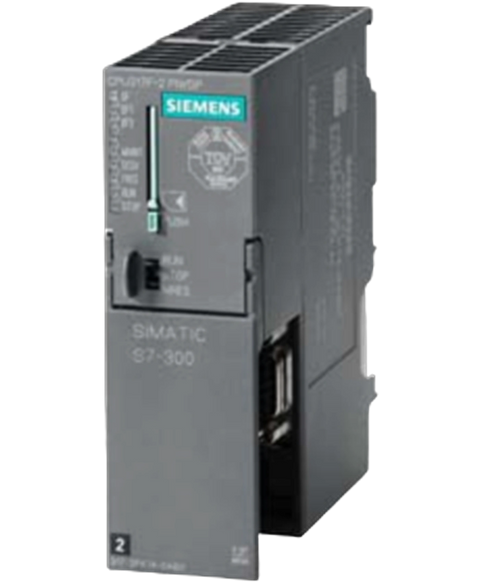

Siemens 6ES73172FK140AB0
SIMATIC S7-300 CPU317F-2 PN,DP, Central processing unit with 1.5 MB work memory, 1st interface MPI,DP 12 Mbit,s, 2nd interface Ethernet PROFINET, with 2-port switch, Micro Memory Card required
This Siemens 6ES73172FK140AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Modular plcs range and is referenced internally as PartLogic SKU PL27100786964.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$2,186.79
(inc. GST)
In Stock
| Product type designation | CPU 317F-2 PN/DP |
| HW functional status | 01 |
| Firmware version | V3.2 |
| Isochronous mode | Yes; Via PROFIBUS DP or PROFINET interface |
| Programming package | STEP 7 V5.5 or higher, Distributed Safety V5.4 SP4 |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| external protection for power supply lines (recommendation) | 2 A min. |
| Mains/voltage failure stored energy time | 5 ms |
| Repeat rate, min. | 1 s |
| Current consumption (rated value) | 750 mA |
| Current consumption (in no-load operation), typ. | 150 mA |
| Inrush current, typ. | 4 A |
| I²t | 1 A²·s |
| Power loss, typ. | 4.65 W |
| integrated | 1 536 kbyte1 |
| expandable | No |
| Plug-in (MMC) | Yes |
| Plug-in (MMC), max. | 8 Mbyte |
| Data management on MMC (after last programming), min. | 10 a |
| present | Yes; Guaranteed by MMC (maintenance-free)Yes |
| without battery | Yes; Program and data |
| for bit operations, typ. | 0.025 µs |
| for word operations, typ. | 0.03 µs |
| for fixed point arithmetic, typ. | 0.04 µs |
| for floating point arithmetic, typ. | 0.16 µs |
| Number of blocks (total) | 2 048; (DBs, FCs, FBs); the maximum number of loadable blocks can be reduced by the MMC used. |
| Number, max. | 2 048; Number range: 1 to 160002 048; Number range: 0 to 7999 |
| Size, max. | 64 kbyte4 096 byte |
| Number of free cycle OBs | 1; OB 1 |
| Number of time alarm OBs | 1; OB 10 |
| Number of delay alarm OBs | 2; OB 20, 21 |
| Number of cyclic interrupt OBs | 4; OB 32, 33, 34, 35 |
| Number of process alarm OBs | 1; OB 40 |
| Number of DPV1 alarm OBs | 3; OB 55, 56, 57 |
| Number of isochronous mode OBs | 1; OB 61 - isochronous mode is possible either on DP or PROFINET IO (not simultaneously) |
| Number of startup OBs | 1; OB 100 |
| Number of asynchronous error OBs | 6; OB 80, 82, 83, 85, 86, 87 (OB83 only for PROFINET IO) |
| Number of synchronous error OBs | 2; OB 121, 122 |
| per priority class | 16 |
| additional within an error OB | 4 |
| Number | 512Unlimited (limited only by RAM capacity)4 |
| — adjustable | YesNoYes; From 10 to 499 |
| — preset | Z 0 to Z 7No retentivity10 |
| — lower limit | 010 ms |
| — upper limit | 9999 990 s |
| Type | SFB |
| Retentive data area (incl. timers, counters, flags), max. | 256 kbyte |
| Retentivity available | Yes; From MB 0 to MB 4 095 |
| Retentivity preset | MB 0 to MB 15Yes |
| Number of clock memories | 8; 1 memory byte |
| Retentivity adjustable | Yes; via non-retain property on DB |
| per priority class, max. | 32 768 byte; Max. 2048 bytes per block |
| Inputs | 8 192 byte65 5364 096 |
| Outputs | 8 192 byte65 5364 096 |
| — Inputs | 8 192 byte244 byte |
| — Outputs | 8 192 byte244 byte |
| Inputs, adjustable | 8 192 byte |
| Outputs, adjustable | 8 192 byte |
| Inputs, default | 256 byte |
| Outputs, default | 256 byte |
| Number of subprocess images, max. | 1; With PROFINET IO, the length of the user data is limited to 1600 bytes |
| — of which central | 1 024256 |
| Number of expansion units, max. | 3 |
| via CP | 4 |
| FM | 8 |
| CP, PtP | 8 |
| CP, LAN | 10 |
| Racks, max. | 4 |
| Modules per rack, max. | 8 |
| Hardware clock (real-time) | Yes |
| retentive and synchronizable | Yes |
| Backup time | 6 wk; At 40 °C ambient temperature |
| Deviation per day, max. | 10 s; Typ.: 2 s |
| Behavior of the clock following POWER-ON | Clock continues running after POWER OFF |
| Behavior of the clock following expiry of backup period | the clock continues at the time of day it had when power was switched off |
| Number/Number range | 0 to 3 |
| Range of values | 0 to 2^31 hours (when using SFC 101) |
| Granularity | 1 h |
| retentive | Yes; Must be restarted at each restart |
| supported | YesYes; via CP and loadable FC |
| to MPI, master | Yes |
| on MPI, device | Yes |
| to DP, master | Yes; With DP slave only slave clock |
| on DP, device | Yes |
| in AS, master | Yes |
| in AS, device | Yes |
| on Ethernet via NTP | Yes; As client |
| Number of digital inputs | 0 |
| Number of digital outputs | 0 |
| Number of analog inputs | 0 |
| Number of PROFINET interfaces | 1 |
| Number of RS 485 interfaces | 1 |
| Number of RS 422 interfaces | 0 |
| Interface type | Integrated RS 485 interfacePROFINET |
| Isolated | Yes |
| RS 485 | Yes |
| Output current of the interface, max. | 200 mA |
| MPI | YesNo |
| PROFIBUS DP master | YesNo |
| PROFIBUS DP device | YesNo |
| Point-to-point connection | No |
| Transmission rate, max. | 12 Mbit/s100 Mbit/s |
| — PG/OP communication | Yes |
| — Routing | YesYes; Only with active interface |
| — Global data communication | YesNo |
| — S7 basic communication | YesYes; I blocks onlyNo |
| — S7 communication | YesYes; with loadable FBs, max. configurable connections: 16, max. number of instances: 32 |
| — S7 communication, as client | No; but via CP and loadable FBNo |
| — S7 communication, as server | YesYes; Connection configured on one side only |
| max. number of DP devices | 124 |
| — Equidistance | Yes |
| — Isochronous mode | Yes; OB 61; isochronous mode can only be used alternatively on PROFIBUS DP or PROFINET IONo |
| — SYNC/FREEZE | Yes |
| — activation/deactivation of DP devices | Yes |
| — max. number of DP devices that can be activated/deactivated at the same time | 8 |
| — Direct data exchange (slave-to-slave communication) | Yes; as subscriberYes |
| — DPV1 | YesNo |
| — Inputs, max. | 8 kbyte244 byte1 440 byte; Per IO Controller with shared device |
| — Outputs, max. | 8 kbyte244 byte1 440 byte; Per IO Controller with shared device |
| automatic baud rate search | Yes; only with passive interface |
| Address area, max. | 32 |
| User data per address area, max. | 32 byte |
| automatic detection of transmission rate | Yes; 10/100 Mbit/s |
| Autonegotiation | Yes |
| Autocrossing | Yes |
| Change of IP address at runtime, supported | Yes |
| RJ 45 (Ethernet) | Yes |
| Number of ports | 2 |
| integrated switch | Yes |
| PROFINET IO Controller | Yes; Also simultaneously with IO-Device functionality |
| PROFINET IO Device | Yes; Also simultaneously with IO Controller functionality |
| PROFINET CBA | Yes |
| Open IE communication | Yes; Via TCP/IP, ISO on TCP, and UDP |
| Web server | Yes |
| Media redundancy | Yes |
| — IRT | Yes |
| — Shared device | Yes |
| — Prioritized startup | Yes |
| — Number of IO devices with prioritized startup, max. | 32 |
| — Number of connectable IO Devices, max. | 128 |
| — Of which IO devices with IRT, max. | 64 |
| — of which in line, max. | 6461128 |
| — Number of IO Devices with IRT and the option "high flexibility" | 128 |
| — Number of connectable IO Devices for RT, max. | 128 |
| — Activation/deactivation of IO Devices | Yes |
| — Number of IO Devices that can be simultaneously activated/deactivated, max. | 8 |
| — IO Devices changing during operation (partner ports), supported | Yes |
| — Number of IO Devices per tool, max. | 8 |
| — Device replacement without swap medium | Yes |
| — Send cycles | 250 μs, 500 μs,1 ms; 2 ms, 4 ms (not in the case of IRT with "high flexibility" option) |
| — Updating time | 250 µs to 512 ms (depending on the operating mode, see Manual "S7-300 CPU 31xC and CPU 31x, technical Data" for more details) |
| — User data consistency, max. | 1 024 byte |
| — PROFIenergy | Yes; With SFB 73 / 74 prepared for loadable PROFIenergy standard FB for I-Device |
| — Number of IO Controllers with shared device, max. | 2 |
| — Number, max. | 64 |
| — User data per submodule, max. | 1 024 byte |
| acyclic transmission | Yes |
| cyclic transmission | Yes |
| Number of connections, max. | 16 |
| Local port numbers used at the system end | 0, 20, 21, 23, 25, 80, 102, 135, 161, 443, 8080, 34962, 34963, 34964, 65532, 65533, 65534, 65535 |
| Keep-alive function, supported | Yes |
| PROFIsafe | Yes |
| — Switchover time on line break, typ. | 200 ms; PROFINET MRP |
| — Number of stations in the ring, max. | 50 |
| TCP/IP | Yes; via integrated PROFINET interface and loadable FBs |
| — Number of connections, max. | 16 |
| — Data length for connection type 01H, max. | 1 460 byte |
| — Data length for connection type 11H, max. | 32 768 byte |
| — several passive connections per port, supported | Yes |
| ISO-on-TCP (RFC1006) | Yes; via integrated PROFINET interface and loadable FBs |
| — Data length, max. | 32 768 byte1 472 byte |
| UDP | Yes; via integrated PROFINET interface and loadable FBs |
| User-defined websites | Yes |
| Number of HTTP clients | 5 |
| PG/OP communication | Yes |
| Data record routing | Yes |
| Number of GD loops, max. | 8 |
| Number of GD packets, max. | 8 |
| Number of GD packets, transmitter, max. | 8 |
| Number of GD packets, receiver, max. | 8 |
| Size of GD packets, max. | 22 byte |
| Size of GD packet (of which consistent), max. | 22 byte |
| User data per job, max. | 76 byteSee online help of STEP 7 (shared parameters of the SFBs/FBs and of the SFCs/FCs of S7 Communication) |
| User data per job (of which consistent), max. | 76 byte; 76 bytes (with X_SEND or X_RCV); 64 bytes (with X_PUT or X_GET as server) |
| as server | Yes |
| as client | Yes; via integrated PROFINET interface and loadable FB or via CP and loadable FB |
| Setpoint for the CPU communication load | 50 % |
| Number of remote interconnection partners | 32 |
| number of master/device functions | 30 |
| total of all master/device connections | 1 000 |
| data length of all incoming master/device connections, max. | 4 000 byte |
| data length of all outgoing master/device connections, max. | 4 000 byte |
| Number of device-internal and PROFIBUS interconnections | 500 |
| Data length of device-internal und PROFIBUS interconnections, max. | 4 000 byte |
| Data length per connection, max. | 1 400 byte |
| — Transmission frequency: Transmission interval, min. | 10 ms |
| — Number of incoming interconnections | 200 |
| — Number of outgoing interconnections | 200 |
| — Data length of all incoming interconnections, max. | 2 000 byte |
| — Data length of all outgoing interconnections, max. | 2 000 byte |
| — Data length per connection, max. | 450 byte240 byte; Slave-dependent |
| — Number of stations that can log on for HMI variables (PN OPC/iMap) | 3; 2x PN OPC/1x iMap |
| — HMI variable updating | 500 ms |
| — Number of HMI variables | 200 |
| — Data length of all HMI variables, max. | 2 000 byte |
| — supported | Yes |
| — Number of linked PROFIBUS devices | 16 |
| overall | 32 |
| usable for PG communication | 31 |
| — reserved for PG communication | 1 |
| — adjustable for PG communication, min. | 1 |
| — adjustable for PG communication, max. | 31 |
| usable for OP communication | 31 |
| — reserved for OP communication | 1 |
| — adjustable for OP communication, min. | 1 |
| — adjustable for OP communication, max. | 31 |
| usable for S7 basic communication | 30 |
| — reserved for S7 basic communication | 0 |
| — adjustable for S7 basic communication, min. | 0 |
| — adjustable for S7 basic communication, max. | 30 |
| usable for S7 communication | 16 |
| — reserved for S7 communication | 0 |
| — adjustable for S7 communication, min. | 0 |
| — adjustable for S7 communication, max. | 16 |
| total number of instances, max. | 32 |
| usable for routing | X1 as MPI: max. 10; X1 as DP master: max. 24; X1 as DP slave (active): max. 14; X2 as PROFINET: 24 max. |
| Number of login stations for message functions, max. | 32; Depending on the configured connections for PG/OP and S7 basic communication |
| Process diagnostic messages | Yes |
| simultaneously active Alarm_S blocks, max. | 300 |
| Status block | Yes; Up to 2 simultaneously |
| Single step | Yes |
| Number of breakpoints | 4 |
| Status/control variable | Yes |
| Variables | Inputs, outputs, memory bits, DB, times, counters |
| Number of variables, max. | 3010 |
| — of which status variables, max. | 30 |
| — of which control variables, max. | 14 |
| Forcing | Yes |
| Forcing, variables | Inputs, outputs |
| Number of entries, max. | 500 |
| — of which powerfail-proof | 100; Only the last 100 entries are retained |
| Number of entries readable in RUN, max. | 499 |
| can be read out | Yes |
| min. | 0 °C |
| max. | 60 °C |
| STEP 7 | Yes; V5.5 or higher |
| Command set | see instruction list |
| Nesting levels | 8 |
| System functions (SFC) | see instruction list |
| System function blocks (SFB) | see instruction list |
| — LAD | Yes |
| — FBD | Yes |
| — STL | Yes |
| — SCL | Yes |
| — CFC | Yes |
| — GRAPH | Yes |
| — HiGraph® | Yes |
| User program protection/password protection | Yes |
| Block encryption | Yes; With S7 block Privacy |
| Width | 40 mm |
| Height | 125 mm |
| Depth | 130 mm |
| Weight, approx. | 340 g |
Struggling to find what you're looking for?
Can’t find what you’re looking for? Get in touch — we can source it for you.
