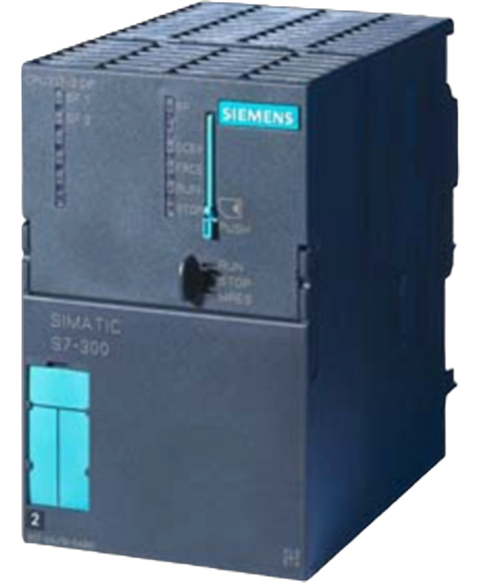

Siemens 6ES7317-2AJ10-0AB0
Mean Well RSP-100-13.5 power supply, 13.5V, 7.5A, 100W.
This Siemens 6ES7317-2AJ10-0AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Modular plcs range and is referenced internally as PartLogic SKU PL27061800695.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$751.17
(inc. GST)
In Stock
| Product type designation | CPU 317-2 DP |
| HW functional status | 01 |
| Firmware version | V2.6 |
| Programming package | STEP 7 V5.2 + SP1 or higher with HW update |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| external protection for power supply lines (recommendation) | 2 A min. |
| Current consumption (rated value) | 850 mA |
| Current consumption (in no-load operation), typ. | 100 mA |
| Inrush current, typ. | 2.5 A |
| I²t | 1 A²·s |
| Power loss, typ. | 4 W |
| integrated | 512 kbyte2 |
| expandable | No |
| Plug-in (MMC) | Yes |
| Plug-in (MMC), max. | 8 Mbyte |
| Data management on MMC (after last programming), min. | 10 a |
| present | Yes; Guaranteed by MMC (maintenance-free)Yes |
| without battery | Yes; Program and data |
| for bit operations, typ. | 0.05 µs |
| for word operations, typ. | 0.2 µs |
| for fixed point arithmetic, typ. | 0.2 µs |
| for floating point arithmetic, typ. | 1 µs |
| Number of blocks (total) | 2 048; (DBs, FCs, FBs OBs, SDBs); the maximum number of loadable blocks can be reduced by the MMC being used. |
| Number, max. | 2 047; Number band: 1 to 20472 048; Number range: 0 to 2047 |
| Size, max. | 64 kbyte4 096 byte |
| Number of free cycle OBs | 1; OB 1 |
| Number of time alarm OBs | 1; OB 10 |
| Number of delay alarm OBs | 2; OB 20, 21 |
| Number of cyclic interrupt OBs | 4; OB 32, 33, 34, 35 |
| Number of process alarm OBs | 1; OB 40 |
| Number of DPV1 alarm OBs | 3; OB 55, 56, 57 |
| Number of isochronous mode OBs | 1; OB 61 |
| Number of startup OBs | 1; OB 100 |
| Number of asynchronous error OBs | 5; OB 80, 82, 85, 86, 87 |
| Number of synchronous error OBs | 2; OB 121, 122 |
| per priority class | 16 |
| additional within an error OB | 4 |
| Number | 512Unlimited (limited only by RAM capacity)4 |
| — adjustable | YesNo |
| — preset | Z 0 to Z 7No retentivity |
| — lower limit | 010 ms |
| — upper limit | 9999 990 s |
| Type | SFB |
| Retentive data area (incl. timers, counters, flags), max. | 256 kbyte |
| Retentivity available | Yes; From MB 0 to MB 4 095 |
| Retentivity preset | MB 0 to MB 15Yes |
| Number of clock memories | 8; 1 memory byte |
| Retentivity adjustable | Yes; via non-retain property on DB |
| per priority class, max. | 1 024 byte |
| Inputs | 8 192 byte2 048 byte65 5364 096 |
| Outputs | 8 192 byte2 048 byte65 5364 096 |
| — Inputs | 8 192 byte244 byte |
| — Outputs | 8 192 byte244 byte |
| Inputs, adjustable | 2 048 byte |
| Outputs, adjustable | 2 048 byte |
| Inputs, default | 256 byte |
| Outputs, default | 256 byte |
| Number of subprocess images, max. | 1 |
| — of which central | 1 024256 |
| Number of expansion units, max. | 3 |
| via CP | 4 |
| FM | 8 |
| CP, PtP | 8 |
| CP, LAN | 10 |
| Racks, max. | 4 |
| Modules per rack, max. | 8 |
| Hardware clock (real-time) | Yes |
| retentive and synchronizable | Yes |
| Backup time | 6 wk; At 40 °C ambient temperature |
| Deviation per day, max. | 10 s |
| Behavior of the clock following POWER-ON | Clock continues running after POWER OFF |
| Behavior of the clock following expiry of backup period | the clock continues at the time of day it had when power was switched off |
| Number/Number range | 0 to 3 |
| Range of values | 0 to 2^31 hours (when using SFC 101) |
| Granularity | 1 h |
| retentive | Yes; Must be restarted at each restart |
| supported | YesYes; via CP and loadable FC |
| to MPI, master | Yes |
| on MPI, device | Yes |
| to DP, master | Yes; With DP slave only slave clock |
| on DP, device | Yes |
| in AS, master | Yes |
| in AS, device | Yes |
| on Ethernet via NTP | No |
| integrated channels (DI) | 0 |
| integrated channels (DO) | 0 |
| integrated channels (AI) | 0 |
| integrated channels (AO) | 0 |
| Number of PROFINET interfaces | 0 |
| Number of RS 485 interfaces | 2; Combined MPI / PROFIBUS DP and PROFIBUS DP |
| Number of RS 422 interfaces | 0 |
| Interface type | Integrated RS 485 interface |
| Isolated | Yes |
| RS 485 | Yes |
| Output current of the interface, max. | 200 mA |
| MPI | YesNo |
| PROFIBUS DP master | Yes |
| PROFIBUS DP device | Yes |
| Point-to-point connection | No |
| Number of connections | 32 |
| Transmission rate, max. | 12 Mbit/s |
| — PG/OP communication | Yes |
| — Routing | YesYes; Only with active interfaceYes; with interface active |
| — Global data communication | YesNo |
| — S7 basic communication | YesYes; I blocks onlyNo |
| — S7 communication | Yes |
| — S7 communication, as client | No |
| — S7 communication, as server | Yes |
| max. number of DP devices | 124 |
| — Equidistance | Yes |
| — Isochronous mode | NoYes; OB 61 |
| — SYNC/FREEZE | Yes |
| — activation/deactivation of DP devices | Yes |
| — max. number of DP devices that can be activated/deactivated at the same time | 4 |
| — DPV1 | YesNo |
| — Inputs, max. | 8 096 byte244 byte |
| — Outputs, max. | 8 096 byte244 byte |
| automatic baud rate search | Yes; only with passive interface |
| Address area, max. | 32 |
| User data per address area, max. | 32 byte |
| — Direct data exchange (slave-to-slave communication) | Yes |
| Number of connections, max. | 32 |
| GSD file | The latest GSD file is available at: http://www.siemens.com/profibus-gsd |
| PROFIsafe | No |
| PG/OP communication | Yes |
| Data record routing | No |
| Number of GD loops, max. | 8 |
| Number of GD packets, max. | 8 |
| Number of GD packets, transmitter, max. | 8 |
| Number of GD packets, receiver, max. | 8 |
| Size of GD packets, max. | 22 byte |
| Size of GD packet (of which consistent), max. | 22 byte |
| User data per job, max. | 76 byte180 byte; With PUT/GET |
| User data per job (of which consistent), max. | 76 byte; 76 bytes (with X_SEND or X_RCV); 64 bytes (with X_PUT or X_GET as server)160 byte; as server |
| as server | Yes |
| as client | Yes; Via CP and loadable FB |
| overall | 32 |
| usable for PG communication | 31 |
| — reserved for PG communication | 1 |
| — adjustable for PG communication, min. | 1 |
| — adjustable for PG communication, max. | 31 |
| usable for OP communication | 31 |
| — reserved for OP communication | 1 |
| — adjustable for OP communication, min. | 1 |
| — adjustable for OP communication, max. | 31 |
| usable for S7 basic communication | 30 |
| — reserved for S7 basic communication | 0 |
| — adjustable for S7 basic communication, min. | 0 |
| — adjustable for S7 basic communication, max. | 30 |
| usable for routing | 8 |
| Number of login stations for message functions, max. | 32; Depending on the configured connections for PG/OP and S7 basic communication |
| Process diagnostic messages | Yes |
| simultaneously active Alarm-S blocks, max. | 60 |
| Status block | Yes |
| Single step | Yes |
| Number of breakpoints | 2 |
| Status/control variable | Yes |
| Variables | Inputs, outputs, memory bits, DB, times, counters |
| Number of variables, max. | 3010 |
| — of which status variables, max. | 30 |
| — of which control variables, max. | 14 |
| Forcing | Yes |
| Forcing, variables | Inputs, outputs |
| Number of entries, max. | 100 |
| — of which powerfail-proof | 100 |
| STEP 7 | Yes; V5.2 SP1 or higher with HW update |
| Command set | see instruction list |
| Nesting levels | 8 |
| System functions (SFC) | see instruction list |
| System function blocks (SFB) | see instruction list |
| — LAD | Yes |
| — FBD | Yes |
| — STL | Yes |
| — SCL | Yes |
| — CFC | Yes |
| — GRAPH | Yes |
| — HiGraph® | Yes |
| User program protection/password protection | Yes |
| Width | 80 mm |
| Height | 125 mm |
| Depth | 130 mm |
| Weight, approx. | 460 g |
