Siemens 6ES7314-6CG03-0AB0

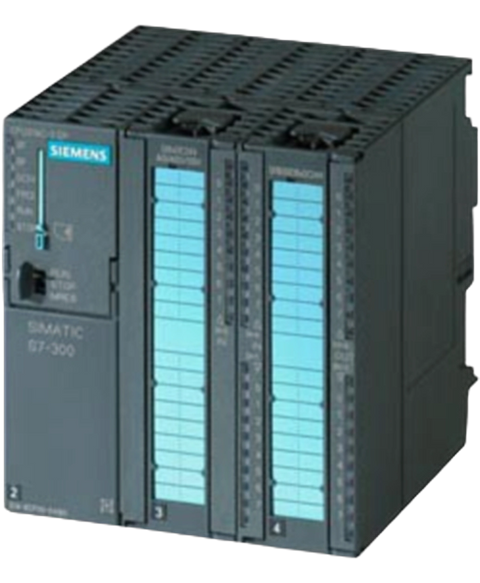

The Siemens SIMATIC 6ES7314-6CG03-0AB0 is a compact CPU designed for efficient automation applications. Offering 24 digital inputs and 16 digital outputs, it enables reliable control of various processes.
This Siemens 6ES7314-6CG03-0AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Modular plcs range and is referenced internally as PartLogic SKU PL26989447144.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product type designation | CPU 314C-2 DP |
| HW functional status | 01 |
| Firmware version | V2.6 |
| Programming package | STEP 7 V5.3 SP2 or higher with HW update |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| external protection for power supply lines (recommendation) | Miniature circuit breaker, type C; min. 2 A; miniature circuit breaker type B, min. 4 A |
| — load voltage / at digital input / at DC / rated value | 24 V |
| — Reverse polarity protection | YesNo |
| — Rated value (DC) | 24 V |
| — load voltage / at analog output / at DC / rated value | 24 V |
| Current consumption (rated value) | 1 000 mA |
| Current consumption (in no-load operation), typ. | 150 mA |
| Inrush current, typ. | 11 A |
| I²t | 0.7 A²·s |
| from load voltage L+ (without load), max. | 70 mA |
| from load voltage L+, max. | 100 mA |
| Power loss, typ. | 14 W |
| integrated | 96 kbyte1 |
| expandable | No |
| Plug-in (MMC) | Yes |
| Plug-in (MMC), max. | 8 Mbyte |
| Data management on MMC (after last programming), min. | 10 a |
| present | Yes; Guaranteed by MMC (maintenance-free)Yes |
| without battery | Yes; Program and data |
| for bit operations, typ. | 0.1 µs |
| for word operations, typ. | 0.2 µs |
| for fixed point arithmetic, typ. | 2 µs |
| for floating point arithmetic, typ. | 3 µs |
| Number of blocks (total) | 1 024; (DBs, FCs, FBs); the maximum number of loadable blocks can be reduced by the MMC used. |
| Number, max. | 511; Number range: 1 to 5111 024; Number range: 0 to 2047 |
| Size, max. | 16 kbyte256 byte |
| Number of free cycle OBs | 1; OB 1 |
| Number of time alarm OBs | 1; OB 10 |
| Number of delay alarm OBs | 1; OB 20 |
| Number of cyclic interrupt OBs | 1; OB 35 |
| Number of process alarm OBs | 1; OB 40 |
| Number of DPV1 alarm OBs | 3; OB 55, 56, 57 |
| Number of startup OBs | 1; OB 100 |
| Number of asynchronous error OBs | 5; OB 80, 82, 85, 86, 87 |
| Number of synchronous error OBs | 2; OB 121, 122 |
| per priority class | 8 |
| additional within an error OB | 4 |
| Number | 256Unlimited (limited only by RAM capacity)1 |
| — adjustable | Yes |
| — preset | 8No retentivity |
| — lower limit | 010 ms |
| — upper limit | 9999 990 s |
| Type | SFB |
| Retentive data area (incl. timers, counters, flags), max. | 64 kbyte |
| Retentivity available | Yes; MB 0 to MB 255 |
| Retentivity preset | MB 0 to MB 15Yes |
| Number of clock memories | 8; 1 memory byte |
| Retentivity adjustable | Yes; via non-retain property on DB |
| per priority class, max. | 510 byte |
| Inputs | 1 kbyte128 byte7 856494 |
| Outputs | 1 kbyte128 byte7 904495 |
| — Inputs | 979 byte244 byte |
| — Outputs | 986 byte244 byte |
| — Digital inputs | 124.0 to 126.7 |
| — Digital outputs | 124.0 to 125.7 |
| — Analog inputs | 752 to 761 |
| — Analog outputs | 752 to 755 |
| — of which central | 1 0161 008253250 |
| Number of expansion units, max. | 3 |
| via CP | 4 |
| FM | 8 |
| CP, PtP | 8 |
| CP, LAN | 10 |
| Racks, max. | 4 |
| Modules per rack, max. | 8; In rack 3 max. 7 |
| Hardware clock (real-time) | Yes |
| retentive and synchronizable | Yes |
| Backup time | 6 wk; At 40 °C ambient temperature |
| Deviation per day, max. | 10 s |
| Number/Number range | 0 |
| Range of values | 0 to 2^31 hours (when using SFC 101) |
| Granularity | 1 h |
| retentive | Yes; Must be restarted at each restart |
| supported | YesYes; via CP and loadable FC |
| to MPI, master | Yes |
| on MPI, device | Yes |
| to DP, master | Yes; With DP slave only slave clock |
| on DP, device | Yes |
| in AS, master | Yes |
| Number of digital inputs | 24 |
| of which inputs usable for technological functions | 16 |
| integrated channels (DI) | 24 |
| Input characteristic curve in accordance with IEC 61131, type 1 | Yes |
| — up to 40 °C, max. | 24123 A2 A |
| — up to 60 °C, max. | 122 A |
| for signal "0" | -3 to +5V |
| for signal "1" | +15 to +30 V |
| for signal "1", typ. | 9 mA |
| — parameterizable | Yes; 0.1 / 0.3 / 3 / 15 msNo |
| — Rated value | 3 ms |
| — at "0" to "1", max. | 8 µs |
| shielded, max. | 1 000 m; 50 m for technological functions1 000 m100 m200 m |
| unshielded, max. | 600 m; for technological functions: No600 m |
| — shielded, max. | 50 m |
| — unshielded, max. | not allowed |
| Number of digital outputs | 16 |
| of which high-speed outputs | 4 |
| integrated channels (DO) | 16 |
| Short-circuit protection | Yes; Clocked electronically |
| Response threshold, typ. | 1 A |
| Limitation of inductive shutdown voltage to | L+ (-48 V) |
| Controlling a digital input | Yes |
| on lamp load, max. | 5 W100 Hz |
| lower limit | 48 Ω |
| upper limit | 4 kΩ |
| for signal "1", min. | L+ (-0.8 V) |
| for signal "1" rated value | 500 mA |
| for signal "1" permissible range, min. | 5 mA |
| for signal "1" permissible range, max. | 0.6 A |
| for signal "1" minimum load current | 5 mA |
| for signal "0" residual current, max. | 0.5 mA |
| for uprating | No |
| for redundant control of a load | Yes |
| with resistive load, max. | 100 Hz |
| with inductive load, max. | 0.5 Hz |
| of the pulse outputs, with resistive load, max. | 2.5 kHz |
| For voltage/current measurement | 4 |
| For resistance/resistance thermometer measurement | 1 |
| integrated channels (AI) | 4+1 |
| permissible input voltage for current input (destruction limit), max. | 5 V; Permanent |
| permissible input voltage for voltage input (destruction limit), max. | 30 V; Permanent |
| permissible input current for voltage input (destruction limit), max. | 0.5 mA; Permanent |
| permissible input current for current input (destruction limit), max. | 50 mA; Permanent |
| Electrical input frequency, max. | 400 Hz |
| No-load voltage for resistance-type transmitter, typ. | 2.5 V |
| Constant measurement current for resistance-type transmitter, typ. | 1.8 to 3.3 mA |
| Technical unit for temperature measurement adjustable | Yes; Degrees Celsius / degrees Fahrenheit / Kelvin |
| Current | Yes |
| Resistance thermometer | Yes; Pt 100 / 10 MΩ |
| Resistance | Yes |
| 0 to +10 V | Yes |
| — Input resistance (0 to 10 V) | 100 kΩ |
| 0 to 20 mA | Yes |
| — Input resistance (0 to 20 mA) | 100 Ω |
| -20 mA to +20 mA | Yes |
| — Input resistance (-20 mA to +20 mA) | 100 Ω |
| 4 mA to 20 mA | Yes |
| — Input resistance (4 mA to 20 mA) | 100 Ω |
| Pt 100 | Yes |
| — Input resistance (Pt 100) | 10 MΩ |
| 0 to 600 ohms | Yes |
| — Input resistance (0 to 600 ohms) | 10 MΩ |
| parameterizable | Yes; by software |
| — for resistance thermometer | Pt 100 |
| integrated channels (AO) | 2 |
| Voltage output, short-circuit protection | Yes |
| Voltage output, short-circuit current, max. | 55 mA |
| Current output, no-load voltage, max. | 17 V |
| 0 to 10 V | Yes |
| -10 V to +10 V | Yes |
| for voltage output two-wire connection | Yes; Without compensation of the line resistances |
| for voltage output four-wire connection | No |
| for current output two-wire connection | Yes |
| with voltage outputs, min. | 1 kΩ |
| with voltage outputs, capacitive load, max. | 0.1 µF |
| with current outputs, max. | 300 Ω |
| with current outputs, inductive load, max. | 0.1 mH |
| Voltages at the outputs towards MANA | 16 V; Permanent |
| Current, max. | 50 mA; Permanent |
| Measurement principle | Actual value encryption (successive approximation) |
| Resolution with overrange (bit including sign), max. | 12 bit |
| Integration time, parameterizable | Yes; 2,5 / 16,6 / 20 ms |
| Interference voltage suppression for interference frequency f1 in Hz | 400 / 60 / 50 Hz |
| Time constant of the input filter | 0.38 ms |
| Basic execution time of the module (all channels released) | 1 ms |
| Conversion time (per channel) | 1 ms |
| for resistive load | 0.6 ms |
| for capacitive load | 1 ms |
| for inductive load | 0.5 ms |
| for voltage measurement | Yes |
| for current measurement as 2-wire transducer | Yes; with external supply |
| for current measurement as 4-wire transducer | Yes |
| for resistance measurement with two-wire connection | Yes; Without compensation of the line resistances |
| for resistance measurement with three-wire connection | No |
| for resistance measurement with four-wire connection | No |
| 2-wire sensor | Yes |
| — permissible quiescent current (2-wire sensor), max. | 1.5 mA |
| Temperature error (relative to input range), (+/-) | 0.006 %/K |
| Crosstalk between the inputs, min. | 60 dB |
| Repeat accuracy in steady state at 25 °C (relative to input range), (+/-) | 0.06 % |
| Output ripple (relative to output range, bandwidth 0 to 50 kHz), (+/-) | 0.1 % |
| Linearity error (relative to output range), (+/-) | 0.15 % |
| Temperature error (relative to output range), (+/-) | 0.01 %/K |
| Crosstalk between the outputs, min. | 60 dB |
| Repeat accuracy in steady state at 25 °C (relative to output range), (+/-) | 0.06 % |
| Voltage, relative to input range, (+/-) | 1 %0.7 %; Linearity error ±0.06 % |
| Current, relative to input range, (+/-) | 1 %0.7 %; Linearity error ±0.06 % |
| Resistance, relative to input range, (+/-) | 5 %3 %; Linearity error ±0.2 % |
| Voltage, relative to output range, (+/-) | 1 %0.7 % |
| Current, relative to output range, (+/-) | 1 %0.7 % |
| Resistance thermometer, relative to input range, (+/-) | 3 % |
| Series mode interference (peak value of interference < rated value of input range), min. | 30 dB |
| Common mode interference, min. | 40 dB |
| Number of PROFINET interfaces | 0 |
| Number of RS 485 interfaces | 2; MPI and PROFIBUS DP |
| Number of RS 422 interfaces | 0 |
| Cable length, max. | 50 m; without repeater |
| Interface type | Integrated RS 485 interface |
| Isolated | NoYes |
| RS 485 | Yes |
| Output current of the interface, max. | 200 mA |
| MPI | YesNo |
| PROFIBUS DP master | NoYes |
| PROFIBUS DP device | NoYes |
| Point-to-point connection | No |
| Number of connections | 12 |
| Transmission rate, max. | 187.5 kbit/s12 Mbit/s |
| — PG/OP communication | Yes |
| — Routing | YesYes; Only with active interface |
| — Global data communication | YesNo |
| — S7 basic communication | YesYes; I blocks onlyNo |
| — S7 communication | Yes |
| — S7 communication, as client | No |
| — S7 communication, as server | Yes |
| PROFINET IO Controller | No |
| PROFINET CBA | No |
| Number of connections, max. | 12; For PG/OP communication |
| max. number of DP devices | 32 |
| — Equidistance | Yes |
| — Isochronous mode | No |
| — SYNC/FREEZE | Yes |
| — activation/deactivation of DP devices | Yes |
| — Direct data exchange (slave-to-slave communication) | Yes |
| — DPV1 | YesNo |
| — Inputs, max. | 1 kbyte244 byte |
| — Outputs, max. | 1 kbyte244 byte |
| GSD file | The latest GSD file is available at: http://www.siemens.com/profibus-gsd |
| automatic baud rate search | Yes; only with passive interface |
| Address area, max. | 32 |
| User data per address area, max. | 32 byte |
| PROFIsafe | No |
| PG/OP communication | Yes |
| Number of GD loops, max. | 4 |
| Number of GD packets, max. | 4 |
| Number of GD packets, transmitter, max. | 4 |
| Number of GD packets, receiver, max. | 4 |
| Size of GD packets, max. | 22 byte |
| Size of GD packet (of which consistent), max. | 22 byte |
| User data per job, max. | 76 byte180 kbyte; With PUT/GET |
| User data per job (of which consistent), max. | 76 byte; 76 bytes (with X_SEND or X_RCV); 64 bytes (with X_PUT or X_GET as server)64 byte |
| as server | Yes |
| as client | Yes; Via CP and loadable FB |
| overall | 12 |
| usable for PG communication | 11 |
| — reserved for PG communication | 1 |
| — adjustable for PG communication, min. | 1 |
| — adjustable for PG communication, max. | 11 |
| usable for OP communication | 11 |
| — reserved for OP communication | 1 |
| — adjustable for OP communication, min. | 1 |
| — adjustable for OP communication, max. | 11 |
| usable for S7 basic communication | 8 |
| — reserved for S7 basic communication | 0 |
| — adjustable for S7 basic communication, min. | 0 |
| — adjustable for S7 basic communication, max. | 8 |
| usable for routing | 4; max. |
| Number of login stations for message functions, max. | 12; Depending on the configured connections for PG/OP and S7 basic communication |
| Process diagnostic messages | Yes |
| simultaneously active Alarm-S blocks, max. | 40 |
| Status block | Yes |
| Single step | Yes |
| Number of breakpoints | 2 |
| Status/control variable | Yes |
| Variables | Inputs, outputs, memory bits, DB, times, counters |
| Number of variables, max. | 3010 |
| — of which status variables, max. | 30 |
| — of which control variables, max. | 14 |
| Forcing | Yes |
| Forcing, variables | Inputs, outputs |
| Number of entries, max. | 100 |
| Status indicator digital input (green) | Yes |
| Status indicator digital output (green) | Yes |
| Frequency measurement | Yes |
| Number of frequency meters | 4; up to 60 kHz (see "Technological Functions" manual) |
| controlled positioning | Yes |
| integrated function blocks (closed-loop control) | PID controller (see "Technological Functions" manual) |
| PID controller | Yes |
| Number of pulse outputs | 4; Pulse width modulation up to 2.5 kHz (see "Technological Functions" Manual) |
| Limit frequency (pulse) | 2.5 kHz |
| Potential separation digital inputs | Yes |
| between the channels | NoYes |
| between the channels and backplane bus | Yes |
| Potential separation digital outputs | Yes |
| between the channels, in groups of | 8 |
| Potential separation analog inputs | Yes; common for analog I/O |
| Potential separation analog outputs | Yes; common for analog I/O |
| Isolation tested with | 600 V DC |
| STEP 7 | Yes; V5.3 SP2 with HW update |
| Command set | see instruction list |
| Nesting levels | 8 |
| System functions (SFC) | see instruction list |
| System function blocks (SFB) | see instruction list |
| — LAD | Yes |
| — FBD | Yes |
| — STL | Yes |
| — SCL | Yes |
| — CFC | Yes |
| — GRAPH | Yes |
| — HiGraph® | Yes |
| User program protection/password protection | Yes |
| Width | 120 mm |
| Height | 125 mm |
| Depth | 130 mm |
| Weight, approx. | 676 g |
Struggling to find what you're looking for?
Can’t find what you’re looking for? Get in touch — we can source it for you.
