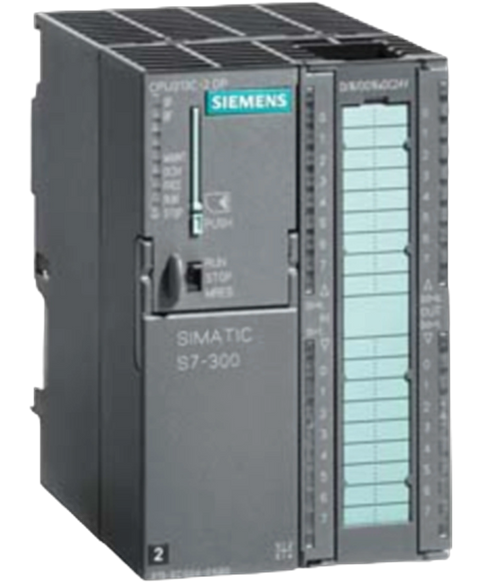

Siemens 6ES7313-6CG04-0AB0
The Siemens 6ES7313-6CG04-0AB0 model features a compact CPU for the SIMATIC S7-300 series, utilizing MPI protocol. This unit operates on a supply voltage of 24 V and supports a memory capacity of 128 kbyte, making it suitable for various automation tasks.
This Siemens 6ES7313-6CG04-0AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Modular plcs range and is referenced internally as PartLogic SKU PL26805597019.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$989.73
(inc. GST)
In Stock
| Product type designation | CPU 313C-2 |
| HW functional status | 01 |
| Firmware version | V3.3 |
| Programming package | STEP 7 V5.5 + SP1 or higher or STEP 7 V5.3 + SP2 or higher with HSP 203 |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| external protection for power supply lines (recommendation) | Miniature circuit breaker, type C; min. 2 A; miniature circuit breaker type B, min. 4 A |
| Mains/voltage failure stored energy time | 5 ms |
| Repeat rate, min. | 1 s |
| — Rated value (DC) | 24 V |
| — Reverse polarity protection | YesNo |
| Current consumption (rated value) | 800 mA |
| Current consumption (in no-load operation), typ. | 110 mA |
| Inrush current, typ. | 5 A |
| I²t | 0.7 A²·s |
| from load voltage L+ (without load), max. | 80 mA |
| from load voltage L+, max. | 50 mA |
| Power loss, typ. | 9 W |
| integrated | 128 kbyte1 |
| expandable | No |
| Plug-in (MMC) | Yes |
| Plug-in (MMC), max. | 8 Mbyte |
| Data management on MMC (after last programming), min. | 10 a |
| present | Yes; Guaranteed by MMC (maintenance-free)Yes |
| without battery | Yes; Program and data |
| for bit operations, typ. | 0.07 µs |
| for word operations, typ. | 0.15 µs |
| for fixed point arithmetic, typ. | 0.2 µs |
| for floating point arithmetic, typ. | 0.72 µs |
| Number of blocks (total) | 1 024; (DBs, FCs, FBs); the maximum number of loadable blocks can be reduced by the MMC used. |
| Number, max. | 1 024; Number range: 1 to 160001 024; Number range: 0 to 7999see instruction list |
| Size, max. | 64 kbyte256 byte |
| Number of free cycle OBs | 1; OB 1 |
| Number of time alarm OBs | 1; OB 10 |
| Number of delay alarm OBs | 2; OB 20, 21 |
| Number of cyclic interrupt OBs | 4; OB 32, 33, 34, 35 |
| Number of process alarm OBs | 1; OB 40 |
| Number of DPV1 alarm OBs | 3; OB 55, 56, 57 |
| Number of startup OBs | 1; OB 100 |
| Number of asynchronous error OBs | 5; OB 80, 82, 85, 86, 87 |
| Number of synchronous error OBs | 2; OB 121, 122 |
| per priority class | 16 |
| additional within an error OB | 4 |
| Number | 256Unlimited (limited only by RAM capacity)1 |
| — adjustable | YesNoYes; From 10 to 499 |
| — preset | Z 0 to Z 7No retentivity10 |
| — lower limit | 010 ms |
| — upper limit | 9999 990 s |
| Type | SFB |
| Retentive data area (incl. timers, counters, flags), max. | 64 kbyte |
| Retentivity available | Yes; MB 0 to MB 255 |
| Retentivity preset | MB 0 to MB 15Yes |
| Number of clock memories | 8; 1 memory byte |
| Retentivity adjustable | Yes; via non-retain property on DB |
| per priority class, max. | 32 kbyte; Max. 2048 bytes per block |
| Inputs | 2 048 byte16 2561 015 |
| Outputs | 2 048 byte16 2561 015 |
| — Inputs | 2 030 byte244 byte |
| — Outputs | 2 030 byte244 byte |
| Inputs, adjustable | 2 048 byte |
| Outputs, adjustable | 2 048 byte |
| Inputs, default | 128 byte |
| Outputs, default | 128 byte |
| — Digital inputs | 124.0 to 125.7 |
| — Digital outputs | 124.0 to 125.7 |
| — of which central | 1 008248 |
| Number of expansion units, max. | 3 |
| via CP | 4 |
| FM | 8 |
| CP, PtP | 8 |
| CP, LAN | 6 |
| Racks, max. | 4 |
| Modules per rack, max. | 8; In rack 3 max. 7 |
| Hardware clock (real-time) | Yes |
| retentive and synchronizable | Yes |
| Backup time | 6 wk; At 40 °C ambient temperature |
| Deviation per day, max. | 10 s; Typ.: 2 s |
| Behavior of the clock following POWER-ON | Clock continues running after POWER OFF |
| Behavior of the clock following expiry of backup period | the clock continues at the time of day it had when power was switched off |
| Number/Number range | 0 |
| Range of values | 0 to 2^31 hours (when using SFC 101) |
| Granularity | 1 h |
| retentive | Yes; Must be restarted at each restart |
| supported | YesYes; via CP and loadable FC |
| to MPI, master | Yes |
| on MPI, device | Yes |
| to DP, master | Yes; With DP slave only slave clock |
| on DP, device | Yes |
| in AS, master | Yes |
| in AS, device | No |
| Number of digital inputs | 16 |
| of which inputs usable for technological functions | 12 |
| integrated channels (DI) | 16 |
| Input characteristic curve in accordance with IEC 61131, type 1 | Yes |
| — up to 40 °C, max. | 1683 A2 A |
| — up to 60 °C, max. | 82 A |
| for signal "0" | -3 to +5V |
| for signal "1" | +15 to +30 V |
| for signal "1", typ. | 8 mA |
| — parameterizable | Yes; 0.1 / 0.3 / 3 / 15 ms (You can reconfigure the input delay of the standard inputs during program runtime. Please note that under certain circumstances your newly set filter time may not be effective until the next filter cycle.) |
| — Rated value | 3 ms |
| — at "0" to "1", max. | 16 µs; Minimum pulse width/minimum pause between pulses at maximum counting frequency |
| shielded, max. | 1 000 m; 100 m for technological functions1 000 m |
| unshielded, max. | 600 m; for technological functions: No600 m |
| — shielded, max. | 100 m; at maximum count frequency |
| — unshielded, max. | not allowed |
| Number of digital outputs | 16 |
| of which high-speed outputs | 4; Notice: You cannot connect the fast outputs of your CPU in parallel |
| integrated channels (DO) | 16 |
| Short-circuit protection | Yes; Clocked electronically |
| Response threshold, typ. | 1 A |
| Limitation of inductive shutdown voltage to | L+ (-48 V) |
| Controlling a digital input | Yes |
| on lamp load, max. | 5 W100 Hz |
| lower limit | 48 Ω |
| upper limit | 4 kΩ |
| for signal "1", min. | L+ (-0.8 V) |
| for signal "1" rated value | 500 mA |
| for signal "1" permissible range, min. | 5 mA |
| for signal "1" permissible range, max. | 0.6 A |
| for signal "1" minimum load current | 5 mA |
| for signal "0" residual current, max. | 0.5 mA |
| for uprating | No |
| for redundant control of a load | Yes |
| with resistive load, max. | 100 Hz |
| with inductive load, max. | 0.5 Hz |
| of the pulse outputs, with resistive load, max. | 2.5 kHz |
| Number of analog inputs | 0 |
| integrated channels (AI) | 0 |
| integrated channels (AO) | 0 |
| 2-wire sensor | Yes |
| — permissible quiescent current (2-wire sensor), max. | 1.5 mA |
| Number of PROFINET interfaces | 0 |
| Number of RS 485 interfaces | 2; MPI and PROFIBUS DP |
| Number of RS 422 interfaces | 0 |
| Interface type | Integrated RS 485 interface |
| Isolated | NoYes |
| RS 485 | Yes |
| Output current of the interface, max. | 200 mA |
| MPI | YesNo |
| PROFIBUS DP master | NoYes |
| PROFIBUS DP device | NoYes |
| Point-to-point connection | No |
| Transmission rate, max. | 187.5 kbit/s12 Mbit/s |
| — PG/OP communication | Yes |
| — Routing | YesYes; Only with active interface |
| — Global data communication | YesNo |
| — S7 basic communication | YesYes; I blocks onlyNo |
| — S7 communication | Yes; Only server, configured on one sideYes; Yes (only server; connection configured at one end) |
| — S7 communication, as client | No; but via CP and loadable FBNo |
| — S7 communication, as server | Yes |
| PROFINET IO Controller | No |
| PROFINET IO Device | No |
| PROFINET CBA | No |
| max. number of DP devices | 124 |
| — Equidistance | Yes |
| — Isochronous mode | No |
| — SYNC/FREEZE | Yes |
| — activation/deactivation of DP devices | Yes |
| — max. number of DP devices that can be activated/deactivated at the same time | 8 |
| — Direct data exchange (slave-to-slave communication) | Yes; as subscriberYes |
| — DPV1 | YesNo |
| — Inputs, max. | 2 kbyte244 byte |
| — Outputs, max. | 2 kbyte244 byte |
| GSD file | The latest GSD file is available on the Internet (http://www.siemens.com/profibus-gsd) |
| automatic baud rate search | Yes; only with passive interface |
| Address area, max. | 32 |
| User data per address area, max. | 32 byte |
| PROFIsafe | No |
| PG/OP communication | Yes |
| Data record routing | Yes |
| Number of GD loops, max. | 8 |
| Number of GD packets, max. | 8 |
| Number of GD packets, transmitter, max. | 8 |
| Number of GD packets, receiver, max. | 8 |
| Size of GD packets, max. | 22 byte |
| Size of GD packet (of which consistent), max. | 22 byte |
| User data per job, max. | 76 byte180 kbyte; With PUT/GET |
| User data per job (of which consistent), max. | 76 byte; 76 bytes (with X_SEND or X_RCV); 64 bytes (with X_PUT or X_GET as server)240 byte; as server |
| as server | Yes |
| as client | Yes; Via CP and loadable FB |
| overall | 8 |
| usable for PG communication | 7 |
| — reserved for PG communication | 1 |
| — adjustable for PG communication, min. | 1 |
| — adjustable for PG communication, max. | 7 |
| usable for OP communication | 7 |
| — reserved for OP communication | 1 |
| — adjustable for OP communication, min. | 1 |
| — adjustable for OP communication, max. | 7 |
| usable for S7 basic communication | 4 |
| — reserved for S7 basic communication | 0 |
| — adjustable for S7 basic communication, min. | 0 |
| — adjustable for S7 basic communication, max. | 4 |
| usable for routing | 4; max. |
| Number of login stations for message functions, max. | 8; Depending on the configured connections for PG/OP and S7 basic communication |
| Process diagnostic messages | Yes |
| simultaneously active Alarm_S blocks, max. | 300 |
| Status block | Yes; Up to 2 simultaneously |
| Single step | Yes |
| Number of breakpoints | 4 |
| Status/control variable | Yes |
| Variables | Inputs, outputs, memory bits, DB, times, counters |
| Number of variables, max. | 3010 |
| — of which status variables, max. | 30 |
| — of which control variables, max. | 14 |
| Forcing | Yes |
| Forcing, variables | Inputs, outputs |
| Number of entries, max. | 500 |
| — of which powerfail-proof | 100; Only the last 100 entries are retained |
| Number of entries readable in RUN, max. | 499 |
| can be read out | Yes |
| Status indicator digital input (green) | Yes |
| Status indicator digital output (green) | Yes |
| Number of counters | 3; See "Technological Functions" manual |
| Counting frequency, max. | 30 kHz |
| Frequency measurement | Yes |
| Number of frequency meters | 3; up to 30 kHz (see "Technological Functions" manual) |
| controlled positioning | No |
| integrated function blocks (closed-loop control) | Yes; PID controller (see "Technological Functions" manual) |
| PID controller | Yes |
| Number of pulse outputs | 3; Pulse width modulation up to 2.5 kHz (see "Technological Functions" Manual) |
| Limit frequency (pulse) | 2.5 kHz |
| Potential separation digital inputs | Yes |
| between the channels | NoYes |
| between the channels and backplane bus | Yes |
| Potential separation digital outputs | Yes |
| between the channels, in groups of | 8 |
| Isolation tested with | 600 V DC |
| min. | 0 °C |
| max. | 60 °C |
| STEP 7 | Yes; STEP 7 V5.5 + SP1 or higher or STEP 7 V5.3 + SP2 or higher with HSP 203 |
| STEP 7 Lite | No |
| Command set | see instruction list |
| Nesting levels | 8 |
| System functions (SFC) | see instruction list |
| System function blocks (SFB) | see instruction list |
| — LAD | Yes |
| — FBD | Yes |
| — STL | Yes |
| — SCL | Yes |
| — CFC | Yes |
| — GRAPH | Yes |
| — HiGraph® | Yes |
| User program protection/password protection | Yes |
| Block encryption | Yes; With S7 block Privacy |
| Width | 80 mm |
| Height | 125 mm |
| Depth | 130 mm |
| Weight, approx. | 500 g |
