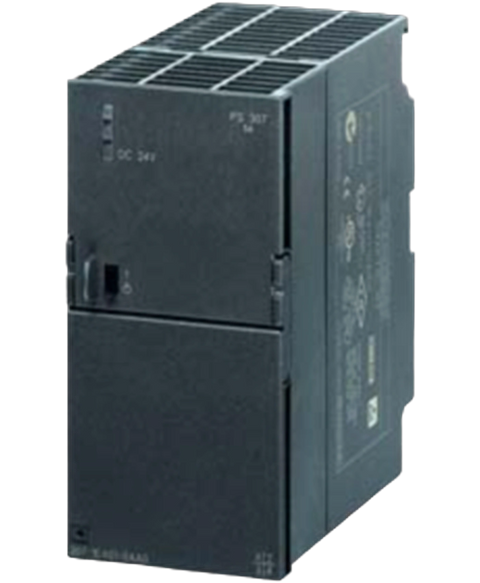

Siemens 6ES7307-1EA01-0AA0
The Siemens 6ES7307-1EA01-0AA0 power supply is designed to provide a regulated output of 24 VDC with a current capacity of 5A. It accepts an input voltage of either 120 or 230 VAC in a single-phase configuration.
This Siemens 6ES7307-1EA01-0AA0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Power supplies range and is referenced internally as PartLogic SKU PL26801464262.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$186.01
(inc. GST)
In Stock
| Technical Product Detail Page | https://i.siemens.com/1P6ES7307-1EA01-0AA0 |
| type of the power supply network | 1-phase AC |
| supply voltage at AC | Automatic range selection |
| supply voltage | 120 V/230 V |
| input voltage 1 at AC | 85 ... 132 V |
| input voltage 2 at AC | 170 ... 264 V |
| wide range input | No |
| overvoltage overload capability | 2.3 × Vin rated, 1.3 ms |
| buffering time for rated value of the output current in the event of power failure minimum | 20 ms |
| operating condition of the mains buffering | at Vin = 93/187 V |
| line frequency | 50/60 Hz47 ... 63 Hz |
| at rated input voltage 120 V | 2.3 A |
| at rated input voltage 230 V | 1.2 A |
| current limitation of inrush current at 25 °C maximum | 20 A |
| maximum | 3 ms50 mV150 mV7 A3.5 mA |
| I2t value maximum | 1.2 A²·s |
| fuse protection type | T 3,15 A/250 V (not accessible) |
| fuse protection type in the feeder | Recommended miniature circuit breaker: from 6 A characteristic C |
| voltage curve at output | Controlled, isolated DC voltage |
| output voltage at DC rated value | 24 V |
| at output 1 at DC rated value | 24 V |
| output voltage adjustable | No; - |
| relative overall tolerance of the voltage | 3 % |
| on slow fluctuation of input voltage | 0.1 % |
| on slow fluctuation of ohm loading | 0.5 % |
| typical | 10 mV20 mV10 ms0.5 mA |
| display version for normal operation | Green LED for 24 V OK |
| behavior of the output voltage when switching on | No overshoot of Vout (soft start) |
| response delay maximum | 2 s |
| rated value | 5 A |
| rated range | 0 ... 5 A |
| supplied active power typical | 120 W |
| on short-circuiting during the start-up typical | 20 A |
| at short-circuit during operation typical | 20 A |
| on short-circuiting during the start-up | 100 ms |
| at short-circuit during operation | 100 ms |
| bridging of equipment | Yes |
| efficiency in percent | 87 % |
| at rated output voltage for rated value of the output current typical | 18 W |
| relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical | 0.1 % |
| relative control precision of the output voltage load step of resistive load 50/100/50 % typical | 1 % |
| load step 50 to 100% typical | 0.3 ms |
| load step 100 to 50% typical | 0.3 ms |
| design of the overvoltage protection | Additional control loop, shutdown at < 28.8 V, automatic restart |
| property of the output short-circuit proof | Yes |
| design of short-circuit protection | Electronic shutdown, automatic restart |
| response value current limitation | 5.5 ... 6.5 A |
| galvanic isolation between input and output | Yes |
| galvanic isolation | Output voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7) |
| operating resource protection class | Class I |
| protection class IP | IP20 |
| for emitted interference | EN 55022 Class B |
| for mains harmonics limitation | EN 61000-3-2 |
| for interference immunity | EN 61000-6-2 |
| CE marking | Yes |
| UL approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 142), File E143289 |
| UKCA marking | Yes |
| EAC approval | Yes |
| NEC Class 2 | No |
| BIS | Yes; R-41183539 |
| CB-certificate | Yes |
| MTBF at 40 °C | 2 480 589 h |
| IECEx | Yes; IECEx Ex nA nC IIC T3 Gc |
| ATEX | Yes; ATEX (EX) II 3G Ex nA nC IIC T3 Gc |
| ULhazloc approval | Yes |
| UKEX | Yes |
| CCC for hazardous zone according to GB standard | Yes |
| FM registration | Yes; Class I, Div. 2, Group ABCD, T4 |
| shipbuilding approval | Yes |
| American Bureau of Shipping Europe Ltd. (ABS) | No |
| French marine classification society (BV) | No |
| Det Norske Veritas (DNV) | Yes |
| Lloyds Register of Shipping (LRS) | Yes |
| Environmental Product Declaration | Yes |
| total | 504.2 kg |
| during manufacturing | 11.3 kg |
| during operation | 492.3 kg0 ... 60 °C; with natural convection |
| after end of life | 0.41 kg |
| during transport | -40 ... +85 °C |
| during storage | -40 ... +85 °C |
| environmental category according to IEC 60721 | Climate class 3K3, 5 ... 95% no condensation |
| type of electrical connection | screw terminal |
| at input | L, N, PE: 1 screw terminal each for 0.5 ... 2.5 mm² single-core/finely stranded |
| at output | L+, M: 3 screw terminals each for 0.5 ... 2.5 mm² |
| for auxiliary contacts | - |
| width × height × depth of the enclosure | 60 × 125 × 120 mm |
| installation width × mounting height | 60 mm × 205 mm |
| top | 40 mm |
| bottom | 40 mm |
| left | 0 mm |
| right | 0 mm |
| fastening method | Can be mounted onto S7 rail |
| DIN-rail mounting | No |
| S7 rail mounting | Yes |
| wall mounting | No |
| housing can be lined up | Yes |
| net weight | 0.6 kg |
| mechanical accessories | Mounting adapter for standard mounting rail (6EP1971-1BA00) |
