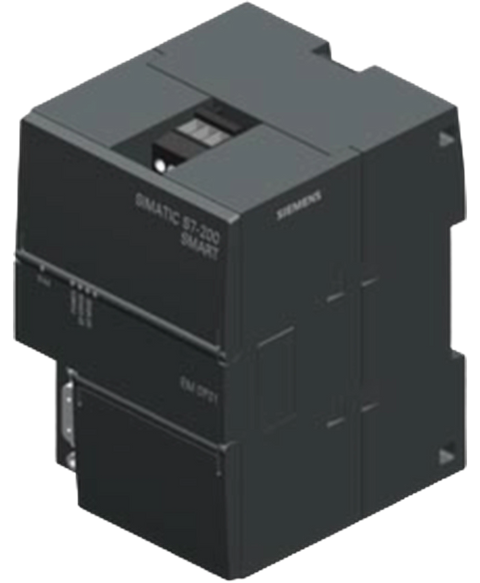

Siemens 6ES72887DP010AA0
SIMATIC S7-200 SMART, PROFIBUS DP Slave module, 9.6 KB to 12 MB, 1 interface PROFIBUS-DP,MPI
This Siemens 6ES72887DP010AA0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Compact plcs range and is referenced internally as PartLogic SKU PL27100667551.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product type designation | EM DP01, PROFIBUS DP slave module |
| Type of supply voltage | DC |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| Current consumption, typ. | 15 mA |
| Current consumption, max. | 30 mA |
| Power loss, typ. | 2.5 W |
| Number of industrial Ethernet interfaces | 0 |
| Number of RS 485 interfaces | 1 |
| Supports protocol for PROFINET IO | No |
| PROFIBUS | Yes |
| TCP/IP | No |
| Width | 45 mm |
| Height | 100 mm |
| Depth | 81 mm |
| Weight, approx. | 176.2 g |
