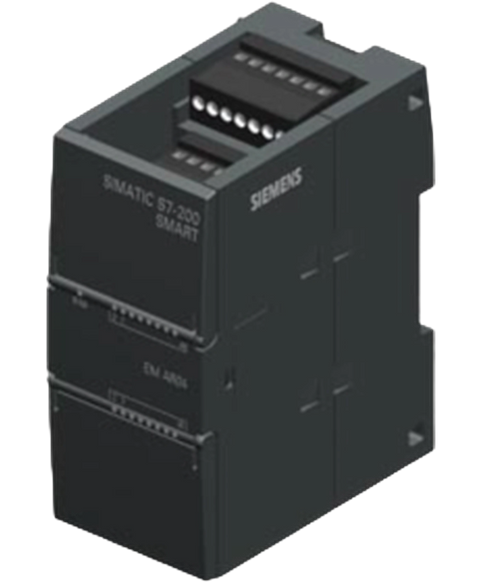

Siemens 6ES7288-3AE04-0AA0
This Siemens 6ES7288-3AE04-0AA0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Compact plcs range and is referenced internally as PartLogic SKU PL26805676903.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product type designation | SM AI04, AI 4x12 bit |
| Reparameterization possible in RUN | No |
| Type of supply voltage | DC |
| Rated value (DC) | 24 V; -15 / +20 % |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| Current consumption, typ. | 40 mA |
| from backplane bus 5 V DC, typ. | 80 mA |
| Power loss, typ. | 1.5 W |
| Number of analog inputs | 4 |
| Voltage | Yes; ±10V, ±5V, ±2.5V |
| Current | Yes; 0 to 20 mA |
| Thermocouple | No |
| Resistance thermometer | No |
| Resistance | No |
| -10 V to +10 V | Yes |
| — Input resistance (-10 V to +10 V) | 9 MΩ |
| -2.5 V to +2.5 V | Yes |
| — Input resistance (-2.5 V to +2.5 V) | 9 MΩ |
| -5 V to +5 V | Yes |
| — Input resistance (-5 V to +5 V) | 9 MΩ |
| 0 to 20 mA | Yes |
| — Input resistance (0 to 20 mA) | 250 Ω |
| Resolution with overrange (bit including sign), max. | 12 bit; voltage mode: 11 bit + sign bit, current mode: 11 bit |
| Interference voltage suppression for interference frequency f1 in Hz | 10 / 50 / 60 / 400 Hz |
| parameterizable | Yes; In 4 stages: 1x, 4x, 16x, 32x cycle time |
| Step: None | Yes; 1x |
| Step: low | Yes; 4x |
| Step: Medium | Yes; 16x |
| Step: High | Yes; 32x |
| Diagnostics function | Yes |
| Monitoring the supply voltage | Yes |
| Wire-break | No |
| Short-circuit | No |
| for status of the inputs | Yes |
| IP degree of protection | IP20 |
| CE mark | Yes |
| Width | 45 mm |
| Height | 100 mm |
| Depth | 81 mm |
| Weight, approx. | 147 g |
