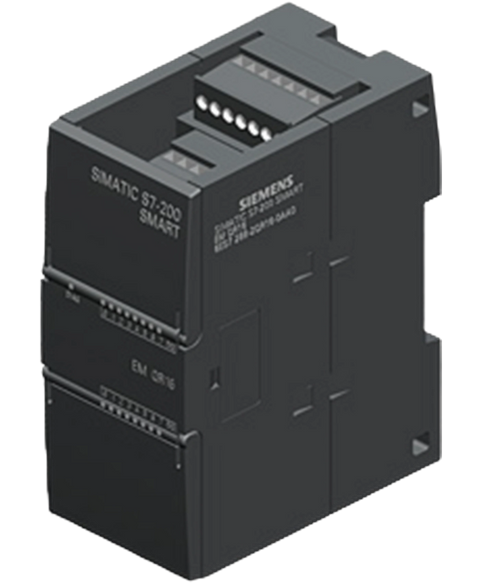

Product image for illustrative purposes only. Actual item may vary.
Siemens 6ES7288-2QR16-0AA0
This Siemens 6ES7288-2QR16-0AA0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Compact plcs range and is referenced internally as PartLogic SKU PL26805676691.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$315.23
(inc. GST)
In Stock
| Product type designation | SM DR16, DQ 16x relay/2 A |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| Current consumption, typ. | 110 mA |
| from backplane bus 5 V DC, typ. | 165 mA |
| Number of digital inputs | 0 |
| shielded, max. | 500 m |
| unshielded, max. | 150 m |
| Number of digital outputs | 16 |
| in groups of | 4 |
| Short-circuit protection | No |
| with resistive load, max. | 2 A |
| on lamp load, max. | 30 W; 30 W with DC, 200 W with AC |
| for signal "1" rated value | 2 A |
| for signal "1" permissible range, max. | 2 A |
| "0" to "1", max. | 10 ms |
| "1" to "0", max. | 10 ms |
| — up to 50 °C, max. | 10 A |
| Number of relay outputs | 16 |
| Rated supply voltage of relay coil L+ (DC) | 24 V |
| — Reverse polarity protection | Yes |
| Current consumption of relays (coil current of all relays), max. | 150 mA |
| — with inductive load, max. | 2 A |
| — on lamp load, max. | 30 W |
| — with resistive load, up to 50 °C, max. | 2 A |
| — with resistive load, up to 60 °C, max. | 2 A |
| — with resistive load, max. | 2 A |
| — Thermal continuous current, max. | 2 A |
| for status of the outputs | Yes |
| between the channels | Yes; Relay, dry contact |
| Isolation tested with | 500 V AC for 1 minute for input isolation; 1500 V AC for 1 minute for output isolation |
| Interference immunity against discharge of static electricity acc. to IEC 61000-4-2 | Yes; ±4 kV contact discharge (to IEC 801-2/IEC 1000-4-2; ESD), ±8 kV air discharge (to IEC 801-2/IEC 1000-4-2; ESD) |
| — Test voltage at air discharge | 8 kV |
| — Test voltage at contact discharge | 4 kV |
| Interference immunity against high-frequency radiation acc. to IEC 61000-4-3 | Yes; 10 V/m, 80 to 1 000 MHz (to IEC 61000-4-3); 10 V/m, 900 MHz, 1.89 GHz, 50% ED (to IEC 61000-4-3) |
| — Frequency range of the RF radiation | 80 to 1000 MHz, 10 V/m, 1.4 to 2.0 GHz, 3 V/m, 2.0 to 2.7 GHz, 1 V/m(In the range of 87 MHz to 187 MHz, 174 MHz to 230 MHz and 470 MHz to 790 MHz: 3V/m ) |
| Interference immunity on supply lines acc. to IEC 61000-4-4 | Yes; ±2 kV acc. to IEC 61000-4-4, burst; surge measurements with additional protective elements |
| Interference immunity on signal cables acc. to IEC 61000-4-4 | Yes; ±2 kV (to IEC 801-4/IEC 1000-4-4; Burst) |
| Interference immunity on supply lines acc. to IEC 61000-4-5 | Yes |
| asymmetric interference | ±2 kV acc. to IEC 61000-4-5, surge asymmetric |
| Interference immunity against high frequency current feed acc. to IEC 61000-4-6 | Yes; 10 V, 150 kHz to 80 MHz (to IEC 61000-4-6) |
| Interference immunity against high-frequency radiation acc. to IEC 61000-4-6 | Yes; 10 V/m, with 80% amplitude modulation at 1 kHz |
| — Test voltage at 80% amplitude modulation with 1kHz in the range 9 kHz to 80 MHz | 10 V |
| Emission of radio interference | Interference emission to EN 50081-2, testing to EN 55011, Class A, Group 1 |
| Limit class A, for use in industrial areas | Yes; EN 61000-6-4, interference emission: Intended for use in industrial areas. |
| IP degree of protection | IP20 |
| CE mark | Yes; CE marking / EC Declaration of Conformity |
| Fall height, max. | 0.3 m |
| min. | 0 °C-40 °C |
| max. | 55 °C70 °C |
| horizontal installation, min. | 0 °C |
| horizontal installation, max. | 55 °C |
| vertical installation, min. | 0 °C |
| vertical installation, max. | 45 °C |
| Operation at 25 ℃ without condensation, max. | 95 % |
| Width | 45 mm |
| Height | 100 mm |
| Depth | 81 mm |
| Weight, approx. | 220 g |
