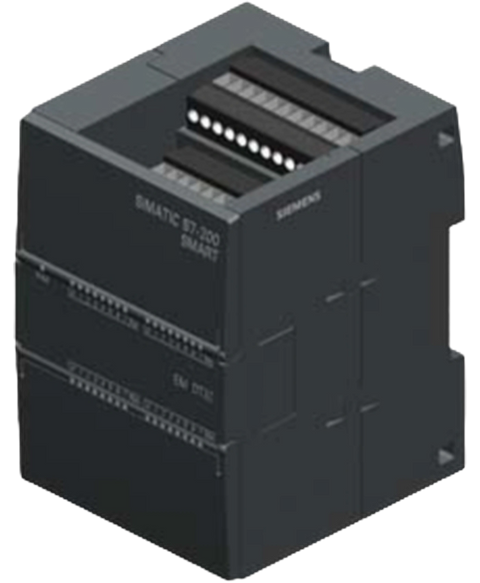

Siemens 6ES7288-2DT32-0AA0
This Siemens 6ES7288-2DT32-0AA0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Compact plcs range and is referenced internally as PartLogic SKU PL26805636301.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$333.69
(inc. GST)
In Stock
| Product type designation | SM DT32, DI 16x24 V DC, DQ 16x24 V DC/0.75 A |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| from backplane bus 5 V DC, typ. | 170 mA; For 5 V DC from CPU module |
| Number of digital inputs | 16 |
| in groups of | 23 |
| Parallel switching of inputs | Yes |
| Input characteristic curve in accordance with IEC 61131, type 1 | Yes |
| — up to 50 °C, max. | 166 A; For the group of eight points , the current is 6 A ; for the group of four points , the current is 3A |
| — up to 40 °C, max. | 166 A; For the group of eight points , the current is 6 A ; for the group of four points , the current is 3A |
| Type of input voltage | DC |
| for signal "0" | < 5 V DC |
| for signal "1" | +15 to +30 V |
| for signal "0", max. (permissible quiescent current) | 1 mA |
| for signal "1", min. | 2.5 mA20 V |
| for signal "1", max. | 5 mA28.8 V; max. value is equal to feed L+ |
| for signal "1", typ. | 4 mA |
| — at "0" to "1", max. | 200 µs |
| — at "1" to "0", max. | 200 µs |
| shielded, max. | 500 m |
| unshielded, max. | 300 m |
| Number of digital outputs | 16 |
| Current-sinking | No |
| Current-sourcing | Yes |
| Short-circuit protection | No |
| with resistive load, max. | 0.75 A |
| on lamp load, max. | 5 W |
| for signal "0", max. | 0.1 V |
| for signal "1" rated value | 0.75 A |
| "0" to "1", max. | 50 µs |
| "1" to "0", max. | 200 µs |
| for logic links | Yes; only outputs of the same group |
| for uprating | Yes; possible (only outputs of the same group) |
| for redundant control of a load | Yes; only outputs of the same group |
| for status of the inputs | Yes |
| for status of the outputs | Yes |
| between the channels | Yes; Optocoupler |
| Isolation tested with | 500 V AC for 1 minute |
| Interference immunity against discharge of static electricity acc. to IEC 61000-4-2 | Yes; ±4 kV contact discharge (to IEC 801-2/IEC 1000-4-2; ESD), ±8 kV air discharge (to IEC 801-2/IEC 1000-4-2; ESD) |
| — Test voltage at air discharge | 8 kV |
| — Test voltage at contact discharge | 4 kV |
| Interference immunity against high-frequency radiation acc. to IEC 61000-4-3 | Yes |
| — Frequency range of the RF radiation | 80 to 1000 MHz, 10 V/m, 1.4 to 2.0 GHz, 3 V/m, 2.0 to 2.7 GHz, 1 V/m(In the range of 87 MHz to 187 MHz, 174 MHz to 230 MHz and 470 MHz to 790 MHz: 3V/m ) |
| Interference immunity on supply lines acc. to IEC 61000-4-4 | Yes; 2 kV acc. to IEC 61000-4-4, burst |
| Interference immunity on signal cables acc. to IEC 61000-4-4 | Yes; ±2 kV acc. to IEC 61000-4-4, Burst |
| Interference immunity on supply lines acc. to IEC 61000-4-5 | Yes; With upstream protective element |
| Interference immunity against high frequency current feed acc. to IEC 61000-4-6 | Yes |
| Interference immunity against high-frequency radiation acc. to IEC 61000-4-6 | Yes; 10 V/m, with 80% amplitude modulation at 1 kHz |
| — Test voltage at 80% amplitude modulation with 1kHz in the range 9 kHz to 80 MHz | 10 V |
| Emission of radio interference | Interference emission to EN 50081-2, testing to EN 55011, Class A, Group 1 |
| Limit class A, for use in industrial areas | Yes |
| IP degree of protection | IP20 |
| CE mark | Yes |
| Width | 70 mm |
| Height | 100 mm |
| Depth | 81 mm |
| Weight, approx. | 257.3 g |
