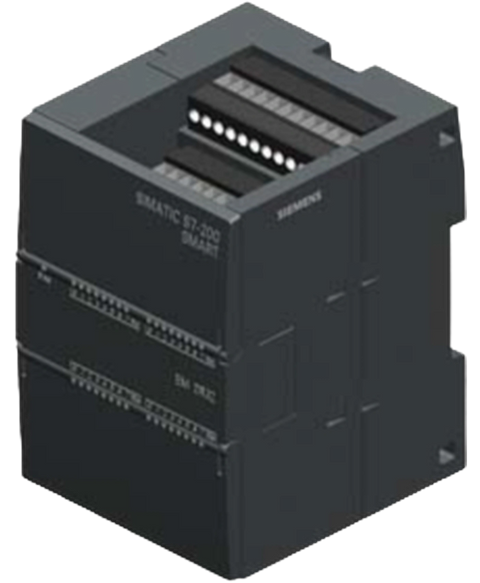

Siemens 6ES7288-2DR32-0AA0
This Siemens 6ES7288-2DR32-0AA0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Compact plcs range and is referenced internally as PartLogic SKU PL26805635255.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$335.11
(inc. GST)
In Stock
| Product type designation | SM DR32, DI 16x24 V DC, DQ 16x relay/2A |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| Current consumption, typ. | 165 mA; Current for 24 V DC input power |
| from backplane bus 5 V DC, typ. | 165 mA; For 5 V DC from CPU module |
| Number of digital inputs | 16 |
| in groups of | 2 |
| Parallel switching of inputs | Yes |
| Input characteristic curve in accordance with IEC 61131, type 1 | Yes |
| — up to 50 °C, max. | 16 |
| — up to 40 °C, max. | 16 |
| Type of input voltage | DC |
| for signal "0" | < 5 V DC |
| for signal "1" | +15 to +30 V |
| for signal "0", max. (permissible quiescent current) | 1 mA |
| for signal "1", min. | 2.5 mA |
| for signal "1", max. | 5 mA |
| for signal "1", typ. | 4 mA |
| — at "0" to "1", max. | 200 µs |
| — at "1" to "0", max. | 200 µs |
| shielded, max. | 500 m |
| unshielded, max. | 300 m150 m |
| Number of digital outputs | 16 |
| Short-circuit protection | No |
| for signal "1" rated value | 2 A |
| "0" to "1", max. | 10 ms |
| "1" to "0", max. | 10 ms |
| Number of relay outputs | 16 |
| Rated supply voltage of relay coil L+ (DC) | 24 V |
| — Reverse polarity protection | Yes |
| Current consumption of relays (coil current of all relays), max. | 165 mA |
| — with inductive load, max. | 2 A |
| — on lamp load, max. | 30 W; 30 W with DC, 200 W with AC |
| — with resistive load, up to 50 °C, max. | 2 A |
| — with resistive load, up to 60 °C, max. | 2 A |
| — with resistive load, max. | 2 A |
| — Thermal continuous current, max. | 2 A |
| for status of the inputs | Yes |
| for status of the outputs | Yes |
| between the channels | Yes; OptocouplerYes; Relay, dry contact |
| Isolation tested with | 500 V AC for 1 minute for input isolation; 1500 V AC for 1 minute for output isolation |
| Interference immunity against discharge of static electricity acc. to IEC 61000-4-2 | Yes; ±4 kV contact discharge (to IEC 801-2/IEC 1000-4-2; ESD), ±8 kV air discharge (to IEC 801-2/IEC 1000-4-2; ESD) |
| — Test voltage at air discharge | 8 kV |
| — Test voltage at contact discharge | 4 kV |
| Interference immunity against high-frequency radiation acc. to IEC 61000-4-3 | Yes |
| — Frequency range of the RF radiation | 80 to 1000 MHz, 10 V/m, 1.4 to 2.0 GHz, 3 V/m, 2.0 to 2.7 GHz, 1 V/m(In the range of 87 MHz to 187 MHz, 174 MHz to 230 MHz and 470 MHz to 790 MHz: 3V/m ) |
| Interference immunity on supply lines acc. to IEC 61000-4-4 | Yes; 2 kV acc. to IEC 61000-4-4, burst |
| Interference immunity on signal cables acc. to IEC 61000-4-4 | Yes; ±2 kV acc. to IEC 61000-4-4, Burst |
| Interference immunity on supply lines acc. to IEC 61000-4-5 | Yes; With upstream protective element |
| Interference immunity against high frequency current feed acc. to IEC 61000-4-6 | Yes |
| Interference immunity against high-frequency radiation acc. to IEC 61000-4-6 | Yes; 10 V/m, with 80% amplitude modulation at 1 kHz |
| — Test voltage at 80% amplitude modulation with 1kHz in the range 9 kHz to 80 MHz | 10 V |
| Emission of radio interference | Interference emission to EN 50081-2, testing to EN 55011, Class A, Group 1 |
| Limit class A, for use in industrial areas | Yes |
| IP degree of protection | IP20 |
| CE mark | Yes |
| Width | 70 mm |
| Height | 100 mm |
| Depth | 81 mm |
| Weight, approx. | 295.4 g |
