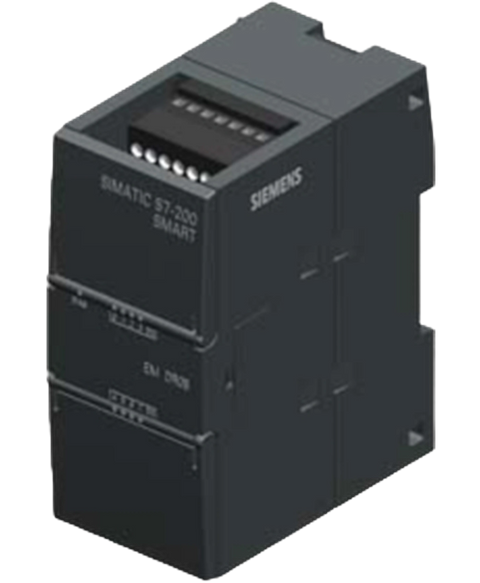

Siemens 6ES7288-2DR08-0AA0
This Siemens 6ES7288-2DR08-0AA0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Compact plcs range and is referenced internally as PartLogic SKU PL26805676521.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product type designation | SM DR08, DQ 8x relay |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| Current consumption, typ. | 80 mA; Current for 24 V DC input power |
| from backplane bus 5 V DC, typ. | 90 mA; For 5 V DC from CPU module |
| Number of digital inputs | 0 |
| Number of digital outputs | 8 |
| Short-circuit protection | No |
| "0" to "1", max. | 10 ms |
| "1" to "0", max. | 10 ms |
| Number of relay outputs | 8 |
| Rated supply voltage of relay coil L+ (DC) | 24 V |
| — Reverse polarity protection | Yes |
| Current consumption of relays (coil current of all relays), max. | 80 mA |
| — with inductive load, max. | 2 A |
| — on lamp load, max. | 30 W; 30 W with DC, 200 W with AC |
| — with resistive load, up to 50 °C, max. | 2 A |
| — with resistive load, max. | 2 A |
| — Thermal continuous current, max. | 2 A |
| shielded, max. | 500 m |
| unshielded, max. | 150 m |
| for status of the outputs | Yes |
| between the channels | Yes; Relay, dry contact |
| Isolation tested with | 1 500 V AC for 1 minute |
| IP degree of protection | IP20 |
| CE mark | Yes |
| Width | 45 mm |
| Height | 100 mm |
| Depth | 81 mm |
| Weight, approx. | 166.3 g |
