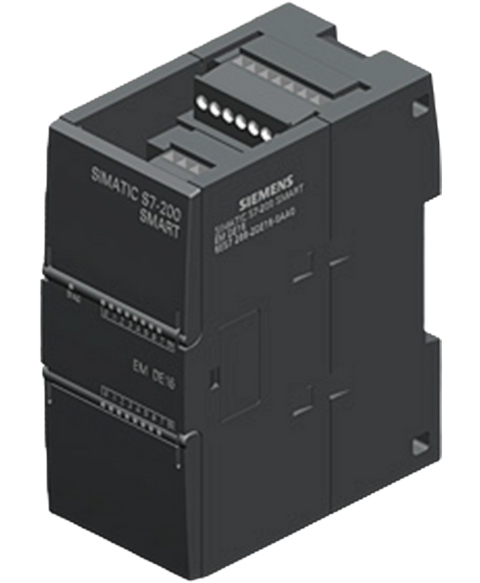

Siemens 6ES7288-2DE16-0AA0
This Siemens 6ES7288-2DE16-0AA0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Compact plcs range and is referenced internally as PartLogic SKU PL26801464309.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$224.35
(inc. GST)
In Stock
| Product type designation | SM DI16, DI 16x24 V DC |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| Current consumption, typ. | 4 mA; Current for 24 V DC input per channel |
| Current consumption, max. | 5 mA; Current for 30 V DC input per channel |
| from backplane bus 5 V DC, typ. | 85 mA; For 5 V DC from CPU module |
| from backplane bus 5 V DC, max. | 105 mA; For 5 V DC from CPU module |
| Number of digital inputs | 16 |
| in groups of | 4 |
| Parallel switching of inputs | Yes |
| Input characteristic curve in accordance with IEC 61131, type 1 | Yes |
| — up to 40 °C, max. | 16 |
| — up to 50 °C, max. | 16 |
| Type of input voltage | DC |
| for signal "0" | < 5 V DC |
| for signal "1" | +15 to +30 V |
| for signal "0", max. (permissible quiescent current) | 1 mA |
| for signal "1", min. | 2.5 mA |
| for signal "1", max. | 5.5 mA |
| for signal "1", typ. | 4 mA |
| — at "0" to "1", max. | 200 µs |
| — at "1" to "0", max. | 200 µs |
| shielded, max. | 500 m |
| unshielded, max. | 300 m |
| Number of digital outputs | 0 |
| for status of the inputs | Yes |
| between the channels | Yes; Optocoupler |
| between the channels, in groups of | 4 |
| Isolation tested with | 1 500 V AC for 1 minute |
| Interference immunity against discharge of static electricity acc. to IEC 61000-4-2 | Yes; ±4 kV contact discharge (to IEC 801-2/IEC 1000-4-2; ESD), ±8 kV air discharge (to IEC 801-2/IEC 1000-4-2; ESD) |
| — Test voltage at air discharge | 8 kV |
| — Test voltage at contact discharge | 4 kV |
| Interference immunity against high-frequency radiation acc. to IEC 61000-4-3 | Yes; 10 V/m, 80 to 1 000 MHz (to IEC 61000-4-3); 10 V/m, 900 MHz, 1.89 GHz, 50% ED (to IEC 61000-4-3) |
| — Frequency range of the RF radiation | 80 to 1000 MHz, 10 V/m, 1.4 to 2.0 GHz, 3 V/m, 2.0 to 2.7 GHz, 1 V/m |
| Interference immunity on supply lines acc. to IEC 61000-4-4 | Yes; ±2 kV acc. to IEC 61000-4-4, burst; surge measurements with additional protective elements |
| Interference immunity on signal cables acc. to IEC 61000-4-4 | Yes; ±2 kV acc. to IEC 61000-4-4, Burst |
| Interference immunity on supply lines acc. to IEC 61000-4-5 | Yes; Surge measurements with additional protection elements: ±1 kV (to IEC 61000-4-5; µs pulse / line to line);±2 kV (to IEC 61000-4-5; µs pulse / line to ground) |
| asymmetric interference | ±2 kV acc. to IEC 61000-4-5, surge asymmetric |
| Interference immunity against high frequency current feed acc. to IEC 61000-4-6 | Yes; 10 V, 150 kHz to 80 MHz (to IEC 61000-4-6) |
| Interference immunity against high-frequency radiation acc. to IEC 61000-4-6 | Yes; 10 V/m, with 80% amplitude modulation at 1 kHz, 10 kHz to 80 MHz (acc. to IEC 61000-4-6) |
| — Test voltage at 80% amplitude modulation with 1kHz in the range 9 kHz to 80 MHz | 10 V |
| Emission of radio interference | Interference emission to EN 50081-2, testing to EN 55011, Class A, Group 1 |
| Limit class A, for use in industrial areas | Yes; EN 61000-6-4, interference emission: Intended for use in industrial areas. |
| IP degree of protection | IP20 |
| CE mark | Yes; CE marking / EC Declaration of Conformity |
| Fall height, max. | 0.3 m |
| min. | 0 °C-40 °C |
| max. | 55 °C70 °C |
| horizontal installation, min. | 0 °C |
| horizontal installation, max. | 55 °C |
| vertical installation, min. | 0 °C |
| vertical installation, max. | 45 °C |
| Operation at 25 ℃ without condensation, max. | 95 % |
| Width | 45 mm |
| Height | 100 mm |
| Depth | 81 mm |
| Weight, approx. | 176 g |
