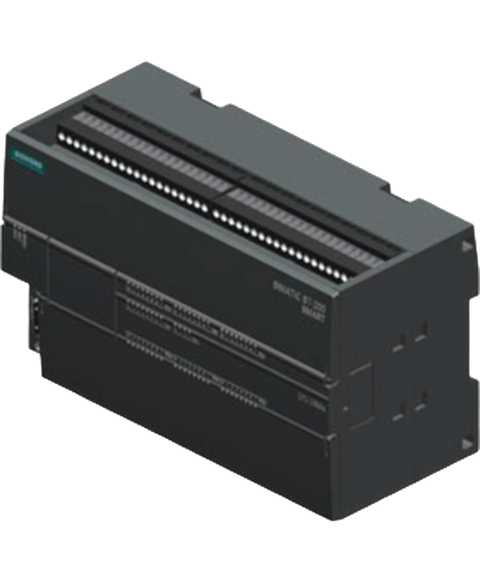

Product image for illustrative purposes only. Actual item may vary.
Siemens 6ES7288-1CR60-0AA0
This Siemens 6ES7288-1CR60-0AA0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Compact plcs range and is referenced internally as PartLogic SKU PL26866510750.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$444.45
(inc. GST)
In Stock
| Product type designation | CPU CR60 AC/DC/Relay |
| Programming package | STEP 7 Micro/WIN SMART |
| Rail mounting | Yes; Standard - DIN rail |
| 120 V AC | Yes |
| 230 V AC | Yes |
| permissible range, lower limit (AC) | 85 V |
| permissible range, upper limit (AC) | 264 V |
| permissible range, lower limit | 47 Hz |
| permissible range, upper limit | 63 Hz |
| Current consumption (rated value) | 160 mA; at 240 V AC |
| Current consumption, max. | 280 mA; At 120 V AC |
| Inrush current, max. | 7.3 A; at 264 V |
| Current output, max. | 300 mA; 24 V DC Sensor Power |
| Power loss, max. | 20 W |
| Type of memory | DDR |
| Flash | Yes |
| RAM | Yes |
| Memory available for user data | 8 kbyte |
| Memory size | 12 kbyte; Program memory |
| Micro Memory Card | Yes; microSDHC Card (optional) |
| for bit operations, typ. | 150 ns; / instruction |
| for word operations, typ. | 1.2 µs; / instruction |
| for floating point arithmetic, typ. | 3.6 µs; / instruction |
| Inputs | 32 byte; Digital inputs |
| Outputs | 32 byte; Digital outputs |
| Type | Hardware clock, no battery backup |
| Hardware clock (real-time) | Yes |
| Backup time | 7 d |
| Deviation per day, max. | 4 s; within 120s/month at 25 °C |
| Number of digital inputs | 36 |
| Type of input voltage | DC |
| Rated value (DC) | 24 V |
| for signal "0" | < 5 V DC |
| for signal "1" | +15 to +30 V |
| for signal "1", typ. | 4 mA |
| shielded, max. | 500 m; 50m shielded for HSC inputs500 m |
| unshielded, max. | 300 m150 m |
| Number of digital outputs | 24; Relays |
| with resistive load, max. | 2 A |
| on lamp load, max. | 30 W; 30 W with DC, 200 W with AC |
| Number of relay outputs | 24 |
| Number of industrial Ethernet interfaces | 1 |
| Number of RS 485 interfaces | 1 |
| Interface type | EthernetRS 485 (max. 187.5 kbps) |
| Isolated | Yes; Transformer isolated, 1,500V AC |
| automatic detection of transmission rate | Yes; 10/100 Mbit/s |
| Autonegotiation | Yes |
| Autocrossing | Yes |
| RJ 45 (Ethernet) | Yes |
| Supports protocol for PROFINET IO | Yes |
| PROFIBUS | No |
| TCP/IP | Yes |
| supported | Yes |
| as server | Yes |
| as client | Yes |
| Forcing | Yes |
| Number of counters | 4; 4 at 100 kHz single phase or 2 at 50 kHz A/B phase |
| PID controller | Yes; PID closed-loop control function: Continuous controller outputs, binary controller outputs, automatic/manual mode, max. 8 loops |
| Interference immunity against discharge of static electricity acc. to IEC 61000-4-2 | Yes |
| — Test voltage at air discharge | 8 kV |
| — Test voltage at contact discharge | 4 kV |
| Interference immunity against high-frequency radiation acc. to IEC 61000-4-3 | Yes; 10 V/m, 80 to 1 000 MHz (to IEC 61000-4-3); 10 V/m, 900 MHz, 1.89 GHz, 50% ED (to IEC 61000-4-3) |
| Interference immunity on supply lines acc. to IEC 61000-4-4 | Yes; 2 kV acc. to IEC 61000-4-4, burst |
| Interference immunity on signal cables acc. to IEC 61000-4-4 | Yes; ±2 kV acc. to IEC 61000-4-4, Burst |
| Interference immunity against high frequency current feed acc. to IEC 61000-4-6 | Yes; 10 V, 150 kHz to 80 MHz (to IEC 61000-4-6) |
| Limit class A, for use in industrial areas | Yes; EN 61000-6-4, interference emission: Intended for use in industrial areas. |
| Interference emission via line/AC current cables | EN 61000-6-4, interference emission: Intended for use in industrial areas. |
| IP degree of protection | IP20 |
| Fall height, max. | 0.3 m; five times, in product package |
| min. | 0 °C-40 °C |
| max. | 55 °C70 °C |
| horizontal installation, min. | 0 °C |
| horizontal installation, max. | 55 °C |
| vertical installation, min. | 0 °C |
| vertical installation, max. | 45 °C |
| Storage/transport, min. | 660 hPa |
| Storage/transport, max. | 1 080 hPa |
| Installation altitude, min. | -1 000 m |
| Installation altitude, max. | 2 000 m |
| Operation at 25 ℃ without condensation, max. | 95 % |
| — LAD | Yes |
| — FBD | Yes |
| — STL | Yes |
| Width | 175 mm |
| Height | 81 mm |
| Depth | 81 mm |
| Weight, approx. | 620 g |
