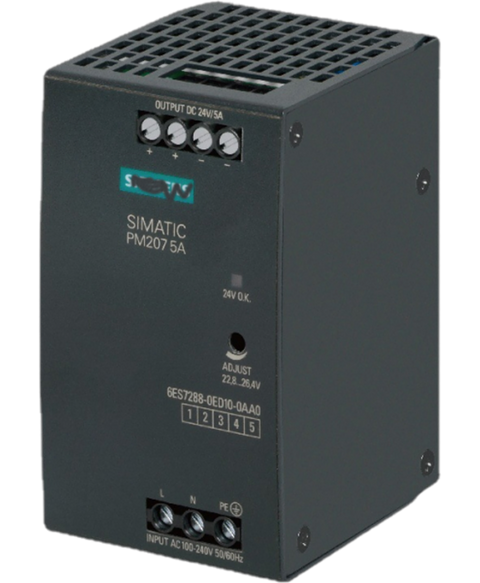

Siemens 6ES7288-0ED10-0AA0
This Siemens 6ES7288-0ED10-0AA0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Compact plcs range and is referenced internally as PartLogic SKU PL27206520676.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$180.33
(inc. GST)
In Stock
| Technical Product Detail Page | https://i.siemens.com/1P6ES7288-0ED10-0AA0 |
| type of the power supply network | 1-phase AC |
| minimum rated value | 100 V |
| maximum rated value | 240 V |
| initial value | 85 V |
| full-scale value | 264 V |
| input voltage at DC | 88 ... 370 V |
| wide range input | Yes |
| buffering time for rated value of the output current in the event of power failure minimum | 20 ms |
| operating condition of the mains buffering | at Vin = 170 V |
| line frequency | 50/60 Hz47 ... 63 Hz |
| at rated input voltage 120 V | 2.75 A |
| at rated input voltage 230 V | 1.15 A |
| current limitation of inrush current at 25 °C maximum | 30 A |
| I2t value maximum | 1.5 A²·s |
| fuse protection type | internal |
| fuse protection type in the feeder | Recommended miniature circuit breaker: 10 A characteristic C |
| voltage curve at output | Controlled, isolated DC voltage |
| output voltage at DC rated value | 24 V |
| output voltage adjustable | Yes; via potentiometer |
| adjustable output voltage | 22.8 ... 26.4 V |
| relative overall tolerance of the voltage | 0.5 % |
| on slow fluctuation of input voltage | 0.1 % |
| on slow fluctuation of ohm loading | 0.5 % |
| maximum | 50 mV3.5 mA |
| typical | 25 mV50 ms6.5 A |
| display version for normal operation | Green LED for 24 V OK |
| behavior of the output voltage when switching on | Overshoot of Vout < 1 % |
| response delay maximum | 0.5 s |
| rated value | 5 A |
| rated range | 0 ... 5 A; +55 ... +70 °C: Derating 3.5%/K |
| supplied active power typical | 120 W |
| bridging of equipment | Yes |
| number of parallel-switched equipment resources for increasing the power | 2 |
| efficiency in percent | 89 % |
| at rated output voltage for rated value of the output current typical | 15 W |
| relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical | 0.2 % |
| relative control precision of the output voltage at load step of resistive load 10/90/10 % typical | 3 % |
| load step 10 to 90% typical | 1 ms |
| load step 90 to 10% typical | 1 ms |
| design of the overvoltage protection | < 28.8 V |
| property of the output short-circuit proof | Yes |
| design of short-circuit protection | Constant current characteristic |
| response value current limitation | 6 ... 7 A |
| galvanic isolation between input and output | Yes |
| galvanic isolation | Output voltage: SELV |
| operating resource protection class | Class I |
| protection class IP | IP20 |
| for emitted interference | EN 55022 Class B |
| for mains harmonics limitation | EN 61000-3-2 |
| for interference immunity | EN 61000-6-2 |
| CE marking | Yes |
| UL approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259 |
| UKCA marking | No |
| EAC approval | No |
| Regulatory Compliance Mark (RCM) | No |
| CCC approval | Yes |
| NEC Class 2 | No |
| BIS | Yes; R-41184349 |
| CB-certificate | Yes |
| MTBF at 40 °C | 500 000 h |
| MTBF at 25 °C | according to MIL-HDBK-217F, 100% full load (24 V, 5 A), input voltage: 220 V AC |
| IECEx | No |
| ATEX | No |
| ULhazloc approval | No |
| FM registration | No |
| shipbuilding approval | No |
| American Bureau of Shipping Europe Ltd. (ABS) | No |
| French marine classification society (BV) | No |
| Det Norske Veritas (DNV) | No |
| Lloyds Register of Shipping (LRS) | No |
| during operation | -25 ... +70 °C; With natural convection |
| during transport | -40 ... +85 °C |
| during storage | -40 ... +85 °C |
| environmental category according to IEC 60721 | Climate class 3K3, 5 ... 95% no condensation |
| type of electrical connection | screw terminal |
| at input | L, N, PE: screw terminal for 0.5 ... 6 mm² single-core / 0.5 ... 4 mm² finely stranded |
| at output | +1, +2, -1, -2: screw terminal for 0.5 ... 4 mm² |
| width × height × depth of the enclosure | 60 × 100 × 81 mm |
| installation width × mounting height | 100 mm × 140 mm |
| top | 20 mm |
| bottom | 20 mm |
| left | 20 mm |
| right | 20 mm |
| fastening method | Snaps onto DIN rail EN 60715 35x7.5/15 |
| DIN-rail mounting | Yes |
| S7 rail mounting | No |
| wall mounting | Yes |
| housing can be lined up | No |
| net weight | 0.54 kg |
| other information | Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified) |
