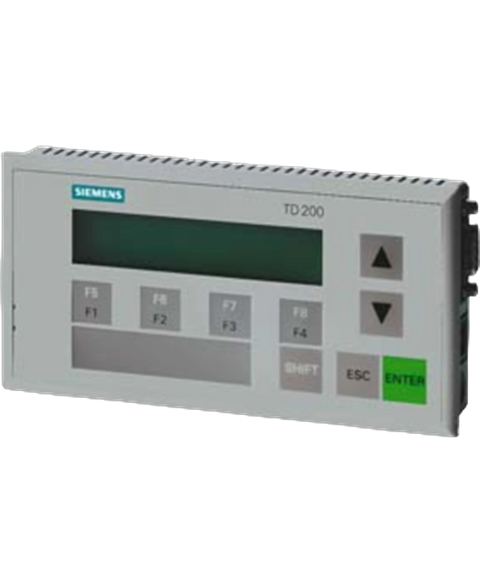

Siemens 6ES7272-0AA30-0YA1
The Siemens 6ES7272-0AA30-0YA1 text display is an effective interface solution for various applications. It features a dual-line configuration with the capacity to display 20 characters per line.
This Siemens 6ES7272-0AA30-0YA1 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Compact plcs range and is referenced internally as PartLogic SKU PL26801720794.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product type designation | TD 200 |
| Design of display | LCD backlit |
| Number of lines | 2 |
| Number of characters per line | 20; Characters/line: ASCII, cyrillic; 10 characters/line: Chinese |
| Character size | 5 mm |
| System keys | Yes |
| — Number of configurable system keys | 9 |
| alphanumeric keyboard | No |
| Type of supply voltage | DC |
| Rated value (DC) | 24 V; Power supply via the S7-200 communications interface or optional external power supply unit; the CPU sensor power supply (24 V DC) is not subjected to load |
| Current consumption, max. | 120 mA |
| Transmission rate, max. | 187.5 kbit/s |
| RS 485 | Yes |
| PPI | Yes |
| — Number of nodes, max. | 126; S7-200, OP, TP, TBP, PG / PC |
| AS-Interface | No |
| IP (at the front) | IP65 |
| min. | 0 °C-40 °C |
| max. | 60 °C70 °C |
| Width | 148 mm |
| Height | 76 mm |
| Depth | 27 mm |
| Mounting cutout, width | 138 mm |
| Mounting cutout, height | 68 mm |
| Overall depth | 27 mm |
| Cabinet/switchboard thickness | 0.3 mm; 0.3 to 4 mm |
| Weight, approx. | 250 g |
