Siemens 6ES7235-0KD22-0XA0

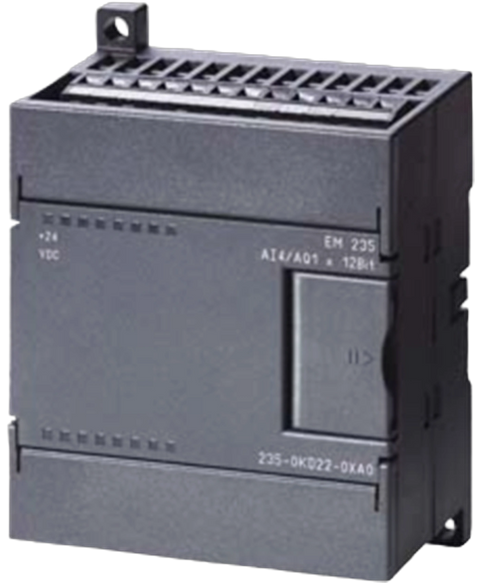

The 6ES7235-0KD22-0XA0 is an analog I,O module from Siemens' SIMATIC series. This unit includes four analog inputs and one output, both operating at ±10 V DC.
This Siemens 6ES7235-0KD22-0XA0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Compact plcs range and is referenced internally as PartLogic SKU PL26801443043.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| from external supply (24 V DC), max. | 60 mA |
| from backplane bus 5 V DC, max. | 30 mA |
| Power loss, typ. | 2 W |
| Number of analog inputs | 4; Difference |
| permissible input voltage for voltage input (destruction limit), max. | 30 V |
| permissible input current for current input (destruction limit), max. | 32 mA |
| Voltage | Yes |
| Current | Yes |
| Thermocouple | No |
| Resistance thermometer | No |
| Resistance | No |
| 0 to +50 mV | Yes |
| 0 to +100 mV | Yes |
| 0 to +500 mV | Yes |
| 0 to +1 V | Yes |
| 0 to +5 V | Yes |
| 0 to +10 V | Yes |
| -1 V to +1 V | Yes |
| -10 V to +10 V | Yes |
| -100 mV to +100 mV | Yes |
| -2.5 V to +2.5 V | Yes |
| -25 mV to +25 mV | Yes |
| -250 mV to +250 mV | Yes |
| -5 V to +5 V | Yes |
| -50 mV to +50 mV | Yes |
| -500 mV to +500 mV | Yes |
| 0 to 20 mA | Yes |
| — parameterizable | No |
| Number of analog outputs | 1 |
| with voltage outputs, min. | 5 kΩ |
| with current outputs, max. | 0.5 kΩ |
| Resolution with overrange (bit including sign), max. | 12 bit11 bit |
| Basic conversion time (ms) | < 0.25 ms |
| Interference voltage suppression for interference frequency f1 in Hz | 40 dB, DC to 60 Hz |
| bipolar signals | -32 000 to +32 000 |
| unipolar signals | 0 to 32 000 |
| for voltage output | 100 µs |
| for current output | 2 ms |
| Voltage, relative to output range, (+/-) | 2 %0.5 % |
| Current, relative to output range, (+/-) | 2 %0.5 % |
| Common mode voltage, max. | 12 V |
| external fault EXTF (red) | Yes |
| Potential separation analog inputs | No |
| Potential separation analog outputs | No |
| Plug-in I/O terminals | No |
| Width | 71.2 mm |
| Height | 80 mm |
| Depth | 62 mm |
| Weight, approx. | 186 g |
