Siemens 6ES72344HE300XB0

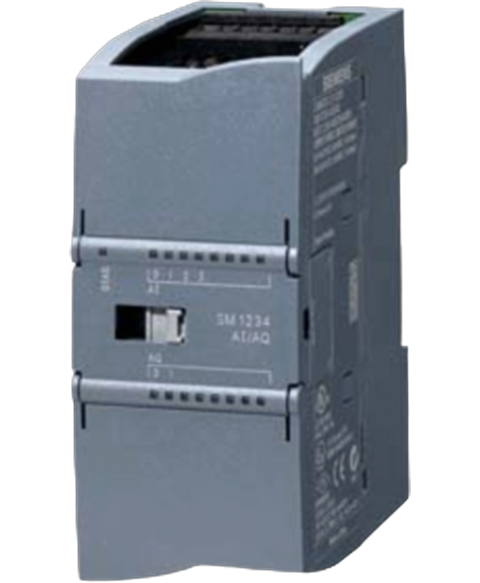

SIMATIC S7-1200, analog I,O SM 1234, 4 AI,2 AO, +,-10 V, 14-bit resolution, or 0-20 mA, 13-bit resolution
This Siemens 6ES72344HE300XB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Compact plcs range and is referenced internally as PartLogic SKU PL27100602087.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product type designation | SM 1234, AI 4x13 bit/AQ 2x14 bit |
| Rated value (DC) | 24 V |
| Current consumption, typ. | 60 mA |
| from backplane bus 5 V DC, typ. | 80 mA |
| Power loss, typ. | 2 W |
| Number of analog inputs | 4; Current or voltage differential inputs |
| permissible input voltage for voltage input (destruction limit), max. | 35 V |
| permissible input current for current input (destruction limit), max. | 40 mA |
| Cycle time (all channels) max. | 625 µs |
| Voltage | Yes; ±10V, ±5V, ±2.5V |
| Current | Yes; 0 to 20 mA |
| Thermocouple | No |
| Resistance thermometer | No |
| Resistance | No |
| -10 V to +10 V | Yes |
| — Input resistance (-10 V to +10 V) | ≥9 MOhm |
| -2.5 V to +2.5 V | Yes |
| — Input resistance (-2.5 V to +2.5 V) | ≥9 MOhm |
| -5 V to +5 V | Yes |
| — Input resistance (-5 V to +5 V) | ≥9 MOhm |
| 0 to 20 mA | Yes |
| — Input resistance (0 to 20 mA) | 280 Ω |
| Number of analog outputs | 2; Current or voltage |
| with voltage outputs, min. | 1 000 Ω |
| with current outputs, max. | 600 Ω |
| Measurement principle | Differential |
| Resolution with overrange (bit including sign), max. | 12 bit; + sign14 bit; Voltage: 14 bit; Current : 13 bit |
| Integration time, parameterizable | Yes |
| Interference voltage suppression for interference frequency f1 in Hz | 40 dB, DC to 60 V for interference frequency 50 / 60 Hz |
| parameterizable | Yes |
| Step: None | Yes |
| Step: low | Yes |
| Step: Medium | Yes |
| Step: High | Yes |
| Temperature error (relative to input range), (+/-) | 25 °C ±0.1%, to 55 °C ±0.2% total measurement range |
| Temperature error (relative to output range), (+/-) | 25 °C ±0.3%, to 55 °C ±0.6% total measurement range |
| Voltage, relative to input range, (+/-) | 0.1 % |
| Current, relative to input range, (+/-) | 0.1 % |
| Voltage, relative to output range, (+/-) | 0.3 % |
| Current, relative to output range, (+/-) | 0.3 % |
| Common mode voltage, max. | 12 V |
| Alarms | Yes |
| Diagnostics function | Yes |
| Diagnostic alarm | Yes |
| Monitoring the supply voltage | Yes |
| Wire-break | Yes |
| Short-circuit | Yes |
| for status of the inputs | Yes |
| for status of the outputs | Yes |
| for maintenance | Yes |
| between the channels and the power supply of the electronics | No |
| IP degree of protection | IP20 |
| CE mark | Yes |
| FM approval | Yes |
| RCM (formerly C-TICK) | Yes |
| Fall height, max. | 0.3 m; five times, in product package |
| min. | 0 °C-40 °C |
| max. | 55 °C70 °C |
| horizontal installation, min. | 0 °C |
| horizontal installation, max. | 55 °C |
| vertical installation, min. | 0 °C |
| vertical installation, max. | 45 °C |
| Operation, min. | 795 hPa |
| Operation, max. | 1 080 hPa |
| Storage/transport, min. | 660 hPa |
| Storage/transport, max. | 1 080 hPa |
| Operation at 25 ℃ without condensation, max. | 95 % |
| SO2 at RH < 60% without condensation | S02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60 % condensation-free |
| required front connector | Yes |
| Plastic | Yes |
| Width | 45 mm |
| Height | 100 mm |
| Depth | 75 mm |
| Weight, approx. | 220 g |
