Siemens 6ES7232-4HB32-0XB0

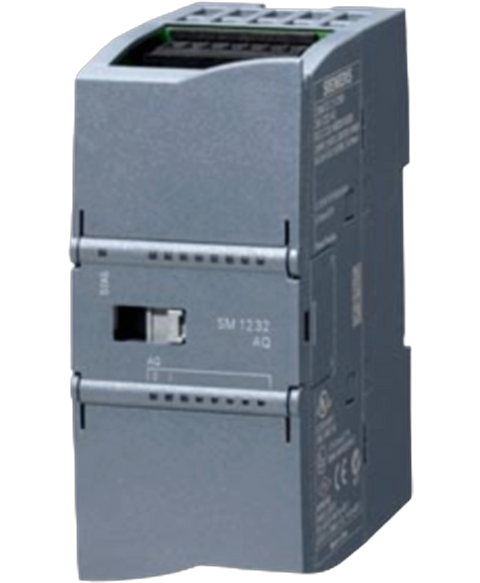

Siemens Analog Output Module, SM 1232, 2AO, ±10V , 0-20mA, SIMATIC S7-1200
This Siemens 6ES7232-4HB32-0XB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Compact plcs range and is referenced internally as PartLogic SKU PL26824478384.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product type designation | SM 1232, AQ 2x14 bit |
| Rated value (DC) | 24 V |
| Current consumption, typ. | 45 mA |
| from backplane bus 5 V DC, typ. | 80 mA |
| Power loss, typ. | 1.5 W |
| Number of analog outputs | 2; Current or voltage |
| -10 V to +10 V | Yes |
| 0 to 20 mA | Yes |
| with voltage outputs, min. | 1 000 Ω |
| with current outputs, max. | 600 Ω |
| shielded, max. | 100 m; shielded, twisted pair |
| Resolution with overrange (bit including sign), max. | 14 bit; Voltage: 14 bit; Current : 13 bit |
| Temperature error (relative to output range), (+/-) | 25 °C ±0.3%, to 55 °C ±0.6% total measurement range |
| Voltage, relative to output range, (+/-) | 0.3 % |
| Current, relative to output range, (+/-) | 0.3 % |
| Common mode voltage, max. | 12 V |
| Alarms | Yes |
| Diagnostics function | Yes |
| Diagnostic alarm | Yes |
| Monitoring the supply voltage | Yes |
| Wire-break | Yes |
| Short-circuit | Yes |
| for status of the outputs | Yes |
| for maintenance | Yes |
| IP degree of protection | IP20 |
| CE mark | Yes |
| CSA approval | Yes |
| UL approval | Yes |
| cULus | Yes |
| FM approval | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| Marine approval | Yes |
| environmental product declaration | Yes |
| — global warming potential, (total) [CO2 eq] | 36.4 kg |
| — global warming potential, (during production) [CO2 eq] | 7.46 kg |
| — global warming potential, (during operation) [CO2 eq] | 29.1 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] | -0.18 kg |
| Fall height, max. | 0.3 m; five times, in product package |
| min. | -20 °C-40 °C |
| max. | 60 °C70 °C |
| horizontal installation, min. | -20 °C |
| horizontal installation, max. | 60 °C |
| vertical installation, min. | -20 °C |
| vertical installation, max. | 50 °C |
| Operation, min. | 795 hPa |
| Operation, max. | 1 080 hPa |
| Storage/transport, min. | 660 hPa |
| Storage/transport, max. | 1 080 hPa |
| Operation at 25 ℃ without condensation, max. | 95 % |
| SO2 at RH < 60% without condensation | S02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60 % condensation-free |
| required front connector | Yes |
| Plastic | Yes |
| Width | 45 mm |
| Height | 100 mm |
| Depth | 75 mm |
| Weight, approx. | 180 g |
